Nice work John!
I wouldn't go less than 3". I think that's the magic number for these guys. If anything, a hair over which will probably come about with cutting and sanding.
Totally agree with Treadwell's comments re picture alignment by pulling back a bit. It will reduce the parallax to some degree.
I wouldn't go less than 3". I think that's the magic number for these guys. If anything, a hair over which will probably come about with cutting and sanding.
Totally agree with Treadwell's comments re picture alignment by pulling back a bit. It will reduce the parallax to some degree.
Thanks! Is three inches the standard for all 8 holes?
Bjorn
Sr Member
It seems that way. Just the inner diameters that are apparently different however, I haven't gotten that far yet.
One cut and sanded. Thoughts?
Looks so small in comparison to the burger, doesn’t it? Like mini-mandible. I know the thing is so big we can’t get head on photos of it without a 15 foot ladder to stand above it. LOL
Starting to smell like victory around here, huh? After more than a year (or 2, or 3, or 10) of research into this darned thing! Looking good John!
Thanks…but it’s wrong. Lol. Screwed up the pinch somehow. Gotta try again.
It doesn't look toed-in enough in the photo, but I know how deceiving these can be. You're showing 9" to DR I'm guessing? What about laying out a right side template and get your 6.65" (this is my guesstimate for now), or whatever you're going with. (If you have a big enough piece of cardboard to do that.) Or run a straight edge down centerline to the tip so you can measure? Since there is toe-in the front I am assuming the front 2.4" cut won't be square, if you know what I mean.
Last edited:

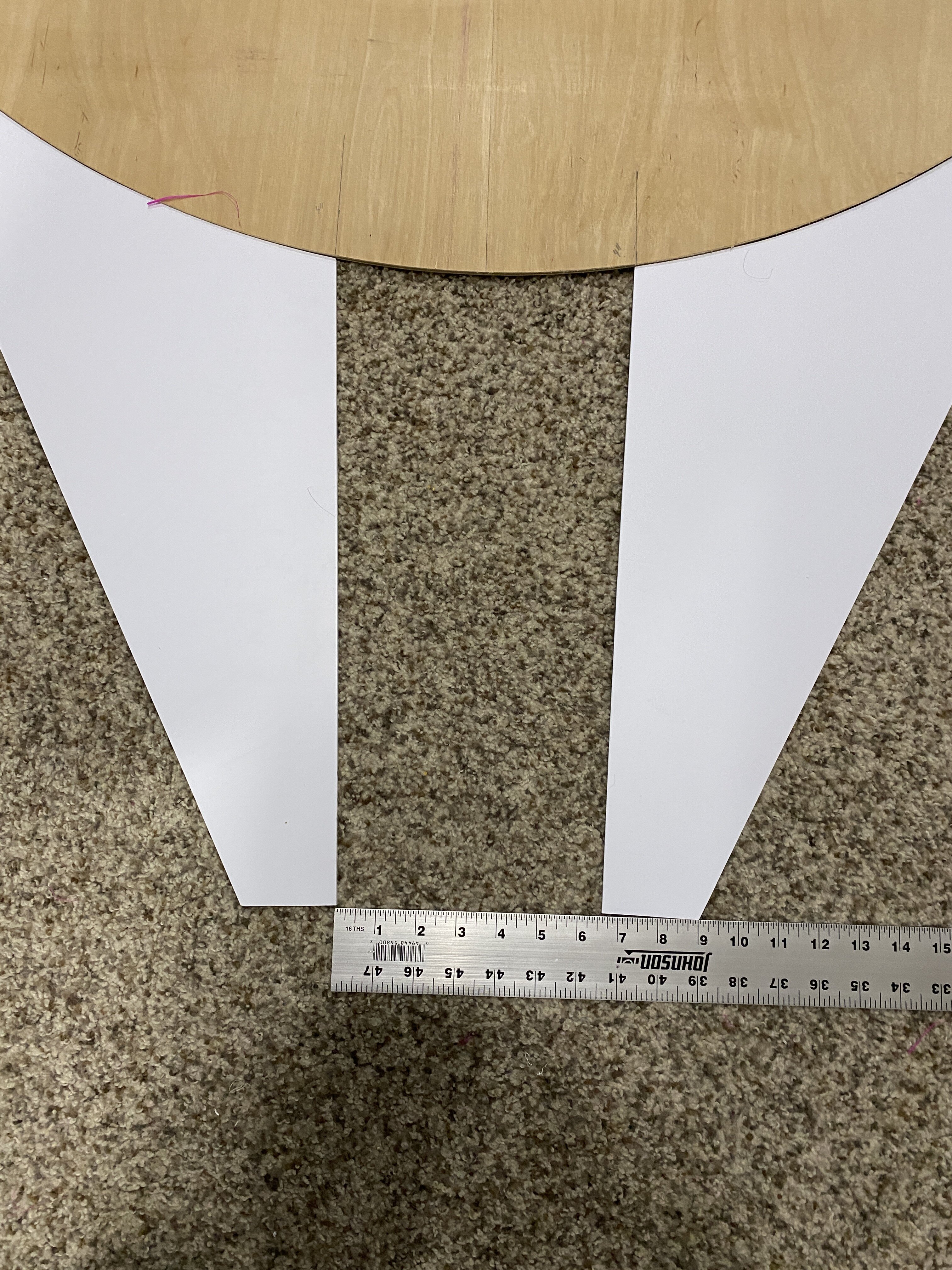

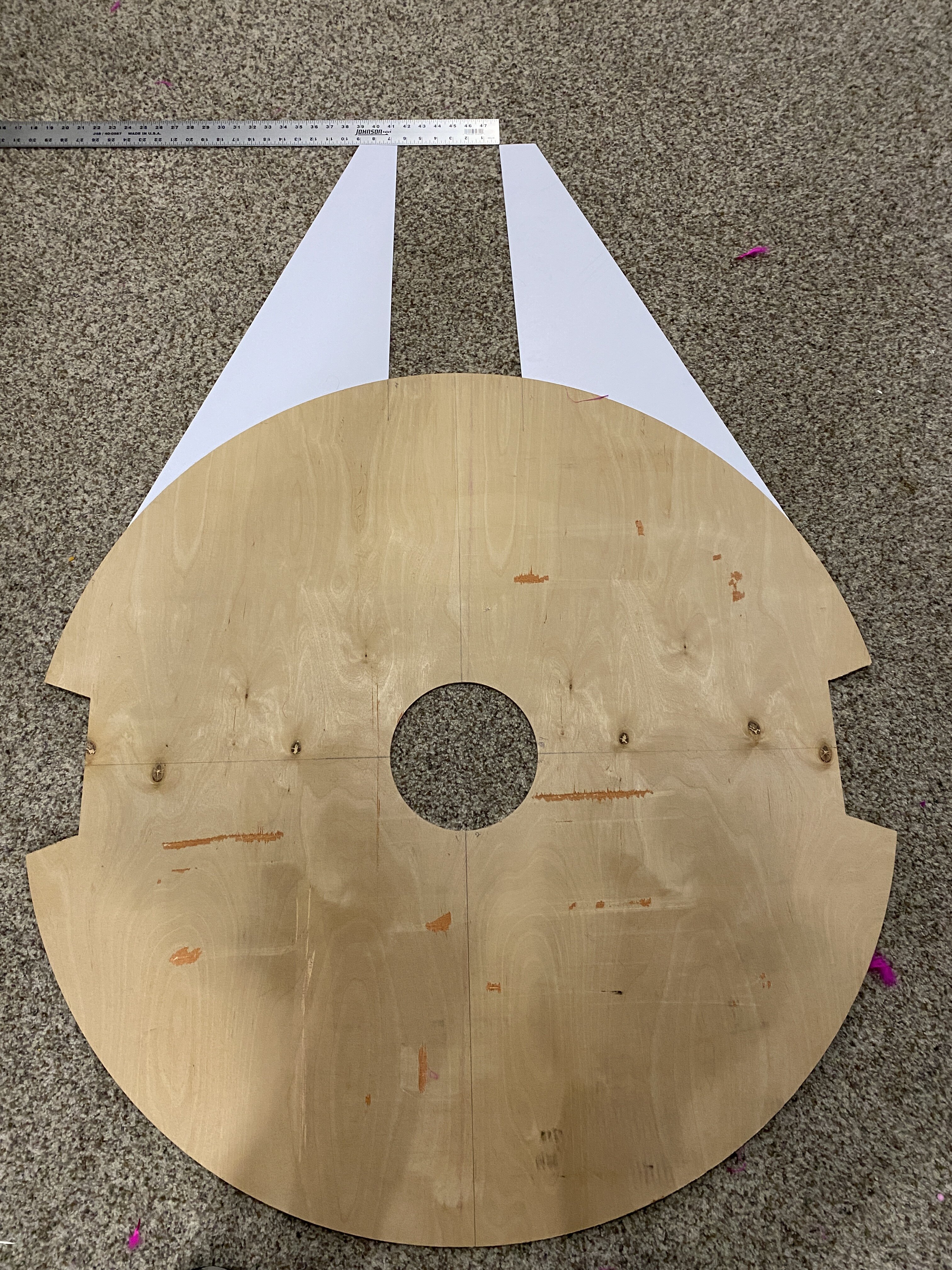

I think I have it now. What do ya think?
Looks good. Did you run a straight edge down centerline too and measure each side from center so you know your square to the burger too? (Not that ILM was square to everything, or anything! LOL) Just one more way to check things and square up. Might end up being asymmetrical anyways.
I did. They are both 3.313" from center.

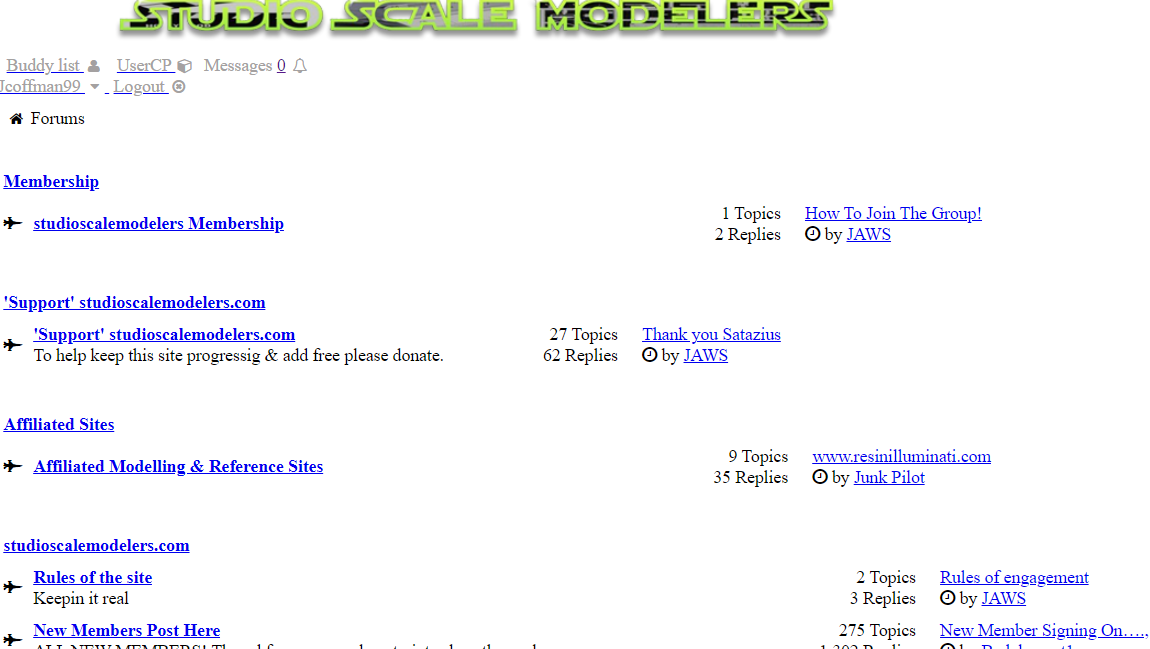

Anyone else have this issue with StudioScaleModelers?
bwayne64
Master Member
Yep been that way for a while. I was able to see it normally with Firefox but it doesn't work on the computer only my phone.
Wish I get get those scans on my site. Hate to lose all that info.
Remember folks, we're always looking for scans on scifikitbash.com.
Remember folks, we're always looking for scans on scifikitbash.com.
Okay I need to rethink my armature.
With only a 2 5/8 patty, a 2” pipe isn’t going to work. There’s not enough “meat” to mount it. Also, it’s way too heavy.
Anyone try aluminum pipe? Is it strong enough? Have any other suggestions?
Thanks,
John
With only a 2 5/8 patty, a 2” pipe isn’t going to work. There’s not enough “meat” to mount it. Also, it’s way too heavy.
Anyone try aluminum pipe? Is it strong enough? Have any other suggestions?
Thanks,
John
bwayne64
Master Member
People are using 2 inch aluminum pipe on their Studio Scale Galacticas, and that is a heavy beast. Its 1.90 " OD, fairly light and very strong. It's used as hand railings. They also sell various connectors and fittings as well.
