An RPF Open Source 5 ft Millennium Falcon Build/Reference Thread. All Are Welcome

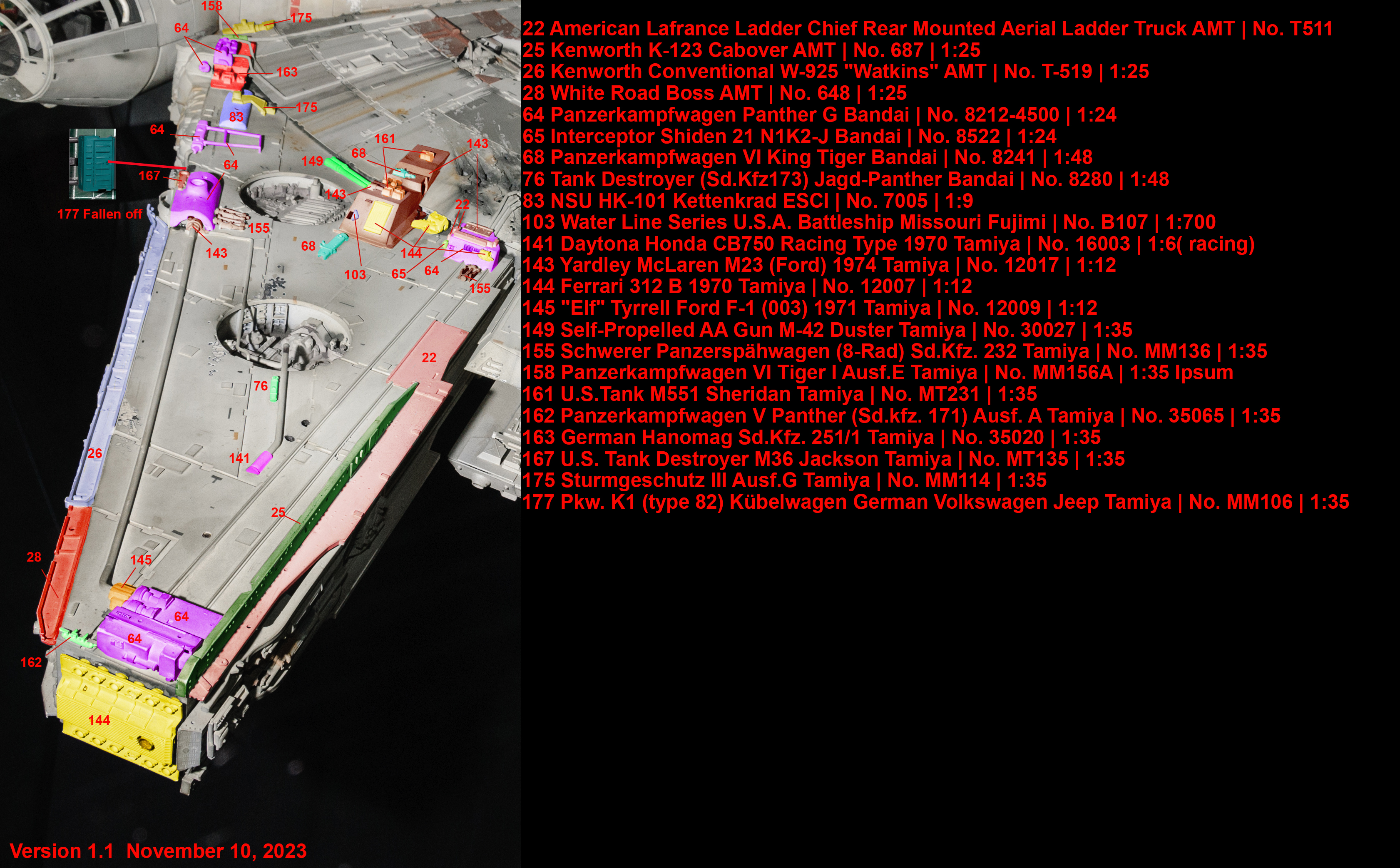

Was the part I've highlighted in magenta every ID'd? The part that seems to fit on top of #83? I've not found it called out on any of the parts maps I've seen.

thanks

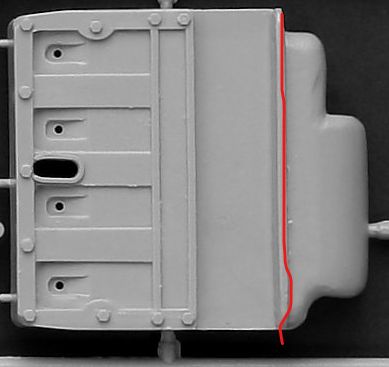

Okay so I have a question before I cut these Kettenkrad pieces. Four are used on the jaw plates and one on the port mandible.

I cut where the line is, but do I need to cut any of the height? It's hard to tell as most of the images are straight on.

Thanks,
John


I must be blind. I've looked through the maps twice, and can't find where the Airfix Arado is used anywhere. Anyone got a clue for me, ; )

manugu said:
Hi bwayne64,
check this map, dead center:

ventral rear copy.jpg

drive.google.com drive.google.com
And for that kind of questions this list is quite useful:
docs.google.com

Millennium Falcon - parts list

docs.google.com docs.google.com
man
Click to expand...
Yeah, the Arado is annoyingly necessary: that little piece (n.b. Part #33, NOT #34) not only tells you if you built your rear landing gear box at the right angle, but it also tells you why you can't parallelize the back of the landing gear box with the Shiden structural-wing piece that lays on the very end of it, which to me always looked like it was in need of "fixing".

Studio Kitbash said:
Yeah, the Arado is annoyingly necessary: that little piece (n.b. Part #33, NOT #34) not only tells you if you built your rear landing gear box at the right angle, but it also tells you why you can't parallelize the back of the landing gear box with the Shiden structural-wing piece that lays on the very end of it, which to me always looked like it was in need of "fixing".
Click to expand...
You also need that part for the Star Destroyer. Learned that last night. :)

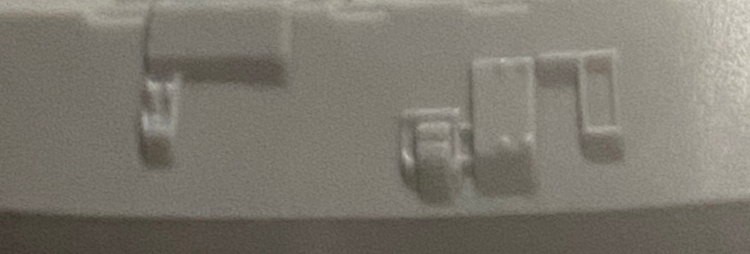

Anyone have any ideas on these guys? They're on the bottom turret on the side that you typically can't see when it's mounted. I have no shots of them other than the Bandai PG.
