Stéphane, this is the part indeed.
To find by how much you have to trim it, you have to find the diameter of the pipe used. Indeed this pipe ID insterted inside the hole (that's why the part is trimmed, it is to enlarge the hole).
Im in vacation so I cant check, what I remember is that I used a standard Plastruct pipe (31.75mm or 1-1/4"). This diameter looked correct to me, the parts looked correctly spaced in it and the Sat part height looked OK so Im pretty sure the diameter is correct.
They indeed filled the small holes created with clay in order to be able to mold and cast it.
Red Jammer is the only one to use styrene kitparts then those holes are not
The Ladd Y is 99,9% castings (even the cockpit with the additionnal plating is a casting) so it has the filled parts.
To find by how much you have to trim it, you have to find the diameter of the pipe used. Indeed this pipe ID insterted inside the hole (that's why the part is trimmed, it is to enlarge the hole).
Im in vacation so I cant check, what I remember is that I used a standard Plastruct pipe (31.75mm or 1-1/4"). This diameter looked correct to me, the parts looked correctly spaced in it and the Sat part height looked OK so Im pretty sure the diameter is correct.
They indeed filled the small holes created with clay in order to be able to mold and cast it.
Red Jammer is the only one to use styrene kitparts then those holes are not
The Ladd Y is 99,9% castings (even the cockpit with the additionnal plating is a casting) so it has the filled parts.
NEW FILES UPLOADED TO THE REPOSITORY!
There is a new folder for the Tail Shroud Assembly in the Repository:
https://drive.google.com/folderview?id=0BwDa06cjX-frMy1mekJzNmx1NEE&usp=sharing
In it you will find the following files:
Tail Shroud Drawing - An orthographic drawing of the shroud assembly and it's component parts at 1:1 scale. This drawing can be used as a pattern to cut out some of the control vanes from styrene if you want to scratch build them.

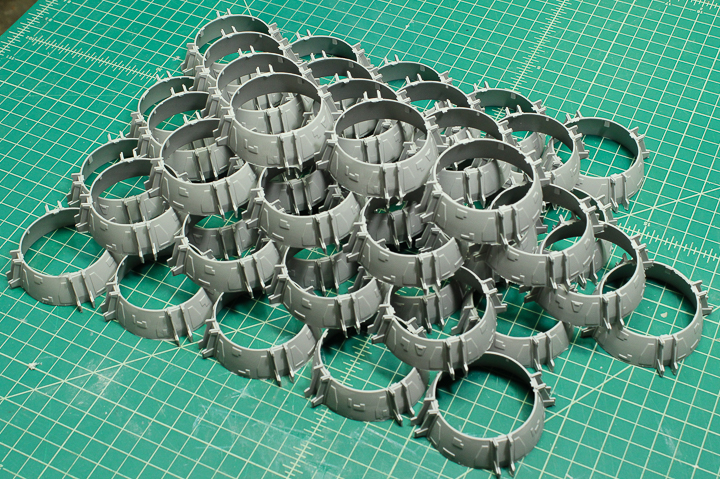

STL file for the Tail Shroud - this is the same file I used to have the Shroud printed for molding and casting. You are welcome to print your own, although at $20 a pair my castings are probably a better deal.
STL files for the Control Vanes, Ring and Shocks - These can be used to 3D print parts. The price at Shapeways to print two sets of these parts in Extreme Detail Plastic is about $78. I'm currently working with an RPF member that may be casting these parts for about half that cost, So you might want to wait to see if that works out before springing for 3D printed parts. Of course, you can always buy 2 Sealab Kits on Ebay...
A STEP file of the Entire Tail Assembly - For anyone that want's to import the parts into a 3D modeling program and mess around with them.
There is a new folder for the Tail Shroud Assembly in the Repository:
https://drive.google.com/folderview?id=0BwDa06cjX-frMy1mekJzNmx1NEE&usp=sharing
In it you will find the following files:
Tail Shroud Drawing - An orthographic drawing of the shroud assembly and it's component parts at 1:1 scale. This drawing can be used as a pattern to cut out some of the control vanes from styrene if you want to scratch build them.
STL file for the Tail Shroud - this is the same file I used to have the Shroud printed for molding and casting. You are welcome to print your own, although at $20 a pair my castings are probably a better deal.
STL files for the Control Vanes, Ring and Shocks - These can be used to 3D print parts. The price at Shapeways to print two sets of these parts in Extreme Detail Plastic is about $78. I'm currently working with an RPF member that may be casting these parts for about half that cost, So you might want to wait to see if that works out before springing for 3D printed parts. Of course, you can always buy 2 Sealab Kits on Ebay...
A STEP file of the Entire Tail Assembly - For anyone that want's to import the parts into a 3D modeling program and mess around with them.
Attachments
Last edited:
Sooo.....
Here the V02 of the engine connector with fins. the main body being 31.75mm or 1-1/4" as precised by Dave and Julien. I did make the connector and fins to fit the trimmed Saturn Y large cone.
I did make a tool to make sure that the fins are perpendicular to the body. you should not need it bud just in case...
I've just send all the files to Master Dave so he can make them available on his open source account.
No support should be needed when printing.
If someone like Dave or Julien can tell me if I made it too long... .
Hope it helps.
Stephane
Here the V02 of the engine connector with fins. the main body being 31.75mm or 1-1/4" as precised by Dave and Julien. I did make the connector and fins to fit the trimmed Saturn Y large cone.
I did make a tool to make sure that the fins are perpendicular to the body. you should not need it bud just in case...
I've just send all the files to Master Dave so he can make them available on his open source account.
No support should be needed when printing.
If someone like Dave or Julien can tell me if I made it too long... .
Hope it helps.
Stephane
Last edited:
Hammer3246
Sr Member
Vacformedhero
Sr Member
This image I think answers the tee bar question , if this is not a pyro then these where definitely plastic, also I seem to remember an interview with ILM who mentioned the filming crew were constantly breaking ypthe rear off the engines and they were always required on set to repair them, said film crew were heavy handed, I'd image brass would have bent not broken
For info Dave, when the cone are trimmed to reach the X under level, It measures 0.71 inch in eight on my two Saturn V cones. And they are old versions of the kit.
Stephane
Stephane

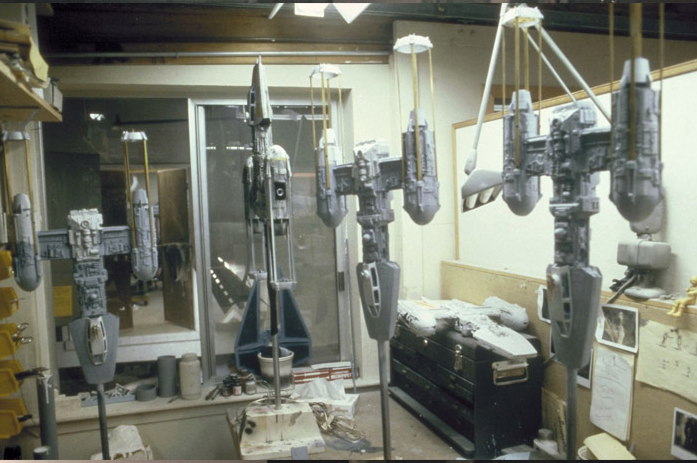

Here's and interesting image of the Ys ready for paint. On the three nose down models the Tees are definitely brass colored, not the dark grey of the Plastruct ABS Tees. The nose up model looks to have been primed, You can't make out the Tees on the fifth model on top of the toolbox in the background.
Edit - something I just noticed is the TIE Interceptor wing in the background. So that would make this photo from ROTJ. But there is a photo of Dave Beasley working on the original ANH Y and the Tees are brass.
Last edited:
I was planning to do them Brass and the only size I've found are matching the 3/16 inch Ts.... (T6)
I did not find yet anything close to the 1/4 inch Ts (T7). They are not doing them any more. I've asked them if they were planning to re introduce the 1/4 inch Ts and the answer was a strong No.
By the way, I do not remember ever seeing this photo of those Y-wings waiting to be painted. Thanks for that.
And what the F is that huge Y-wing on the right corner??? I knew they did a big X -wing but I've never seen a giant Y-wing like this before.
Stephane
I did not find yet anything close to the 1/4 inch Ts (T7). They are not doing them any more. I've asked them if they were planning to re introduce the 1/4 inch Ts and the answer was a strong No.
By the way, I do not remember ever seeing this photo of those Y-wings waiting to be painted. Thanks for that.
And what the F is that huge Y-wing on the right corner??? I knew they did a big X -wing but I've never seen a giant Y-wing like this before.
Stephane
Last edited:

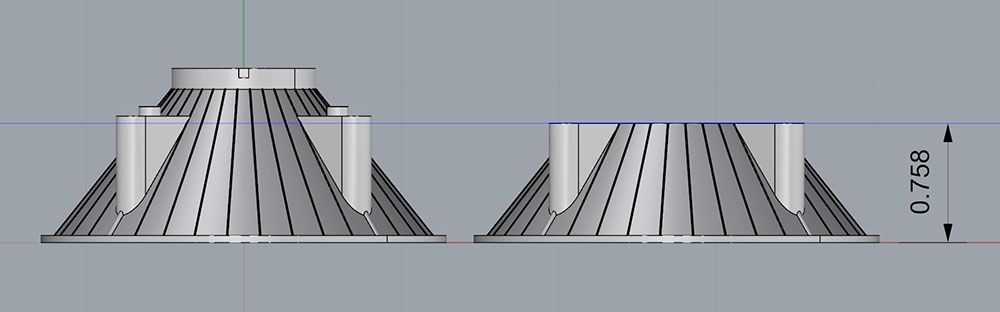

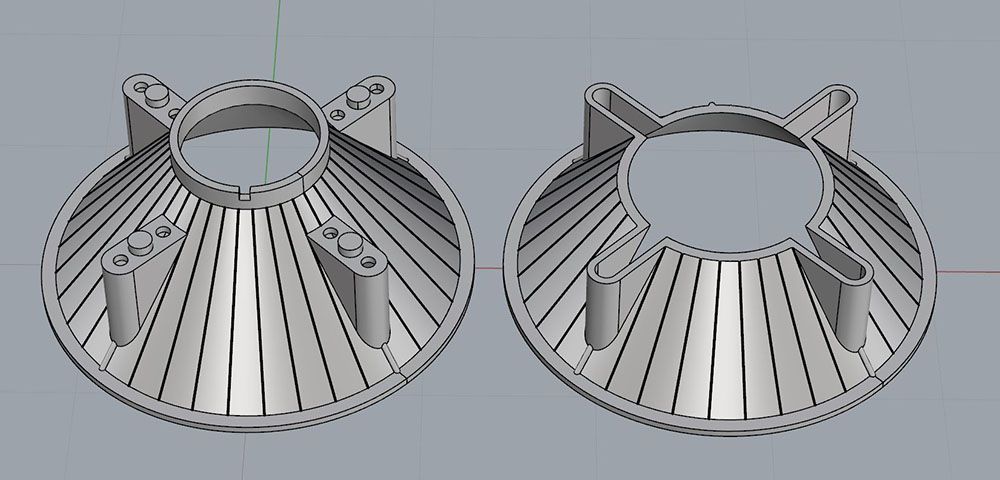

Exactly how I did cut and sand my Saturn V cones. By hand like the in good old times.
I was just providing that measurement just in case you wanted to adjust your 3D model.
Stephane
I was just providing that measurement just in case you wanted to adjust your 3D model.
Stephane
