The Y-Wing "Green Leader" Project - NOW OPEN SOURCE!

star-art said:
Please don't use PLA. This is a fairly new material that isn't proven to stand the test of time. It is definitely NOT engineering grade. On the other hand, ABS is a proven engineering-grade material that's very capable and as a bonus it can be chemically welded to butyrate, styrene, and acrylic. That makes it ideal for printing structural parts for our model projects.
Click to expand...
Thank you very much. That's what I needed to know. Thank you for your help!

jackstraw9388 said:

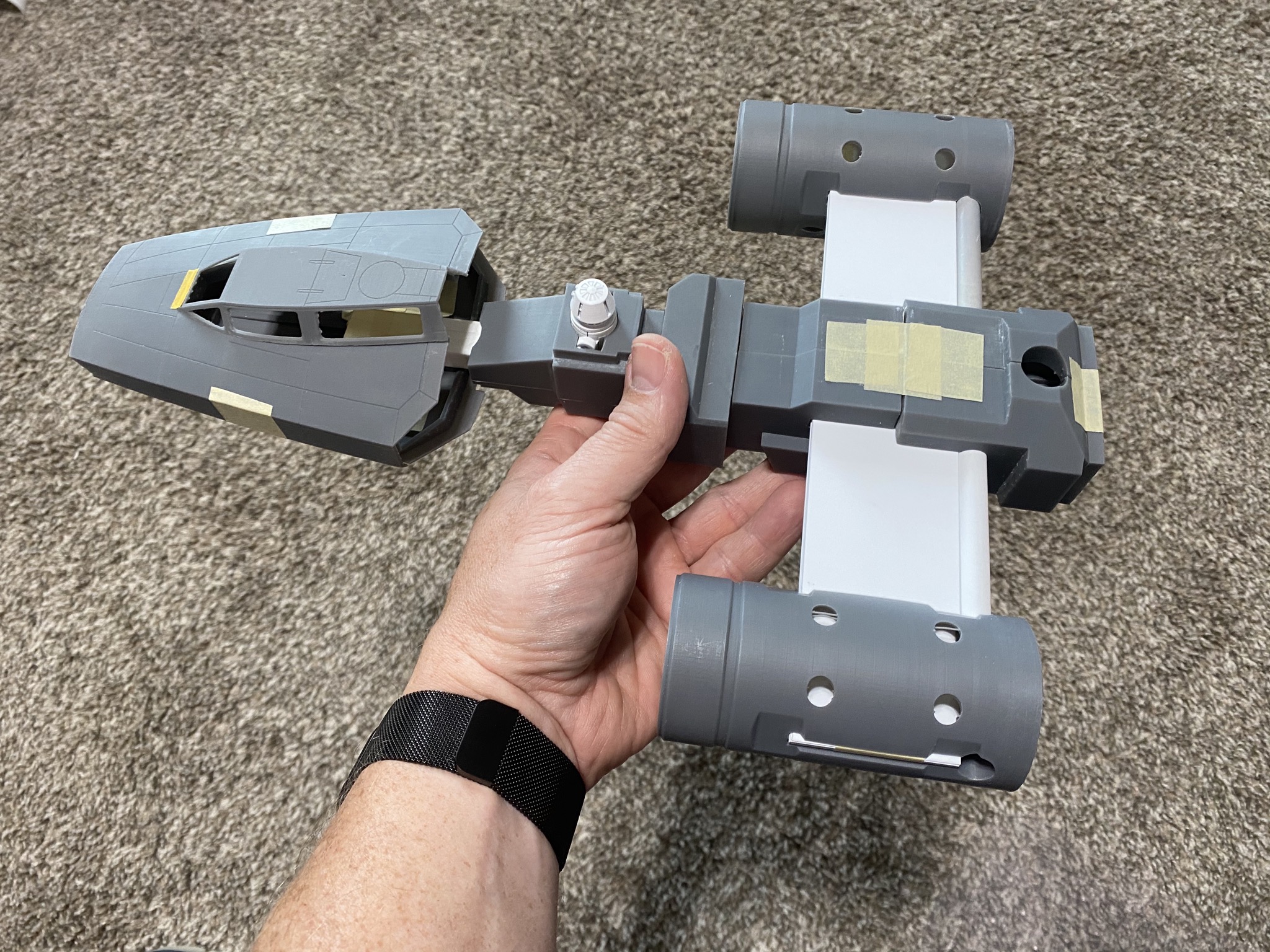

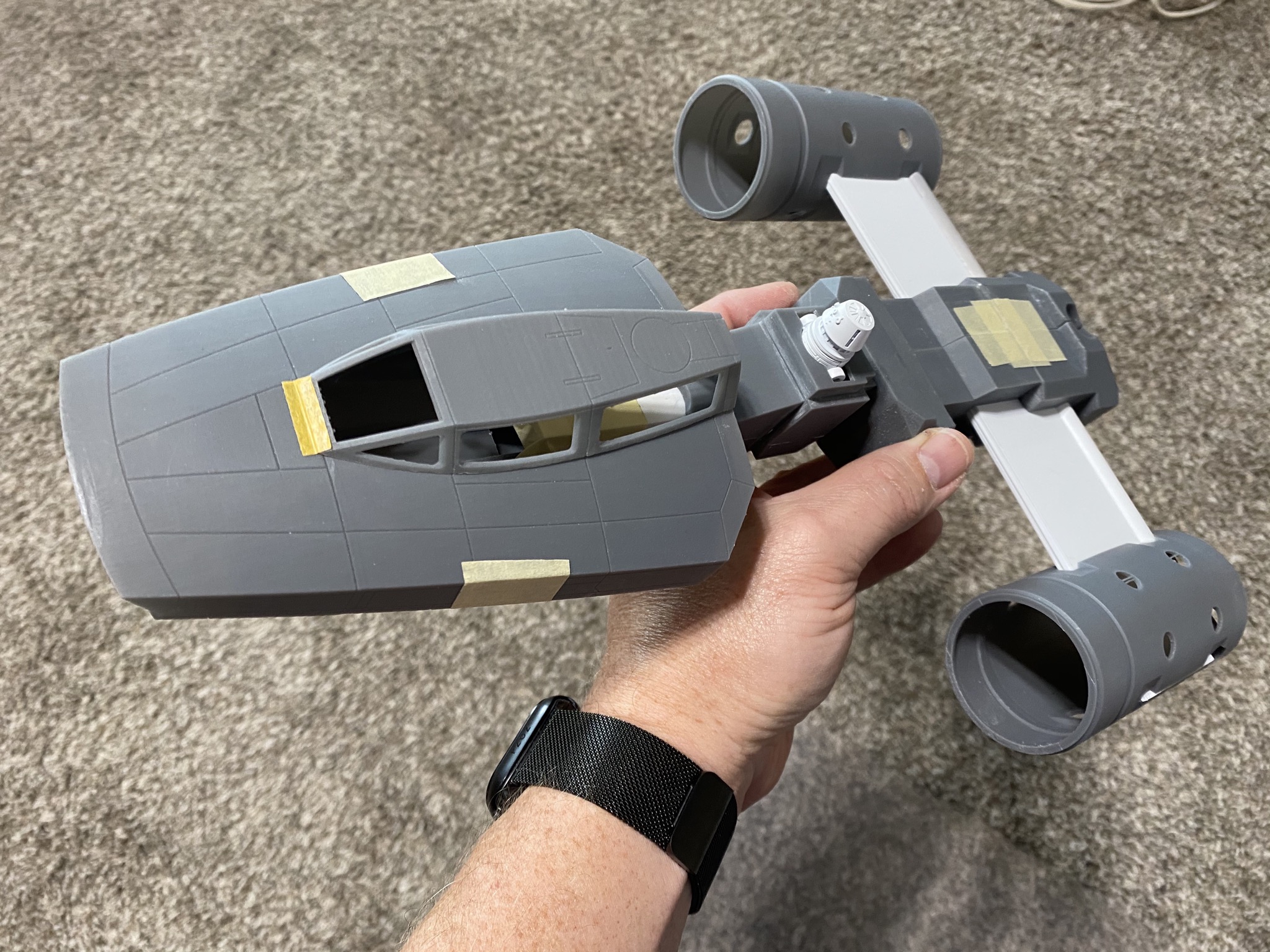

Here are some of my first prints...
Click to expand...

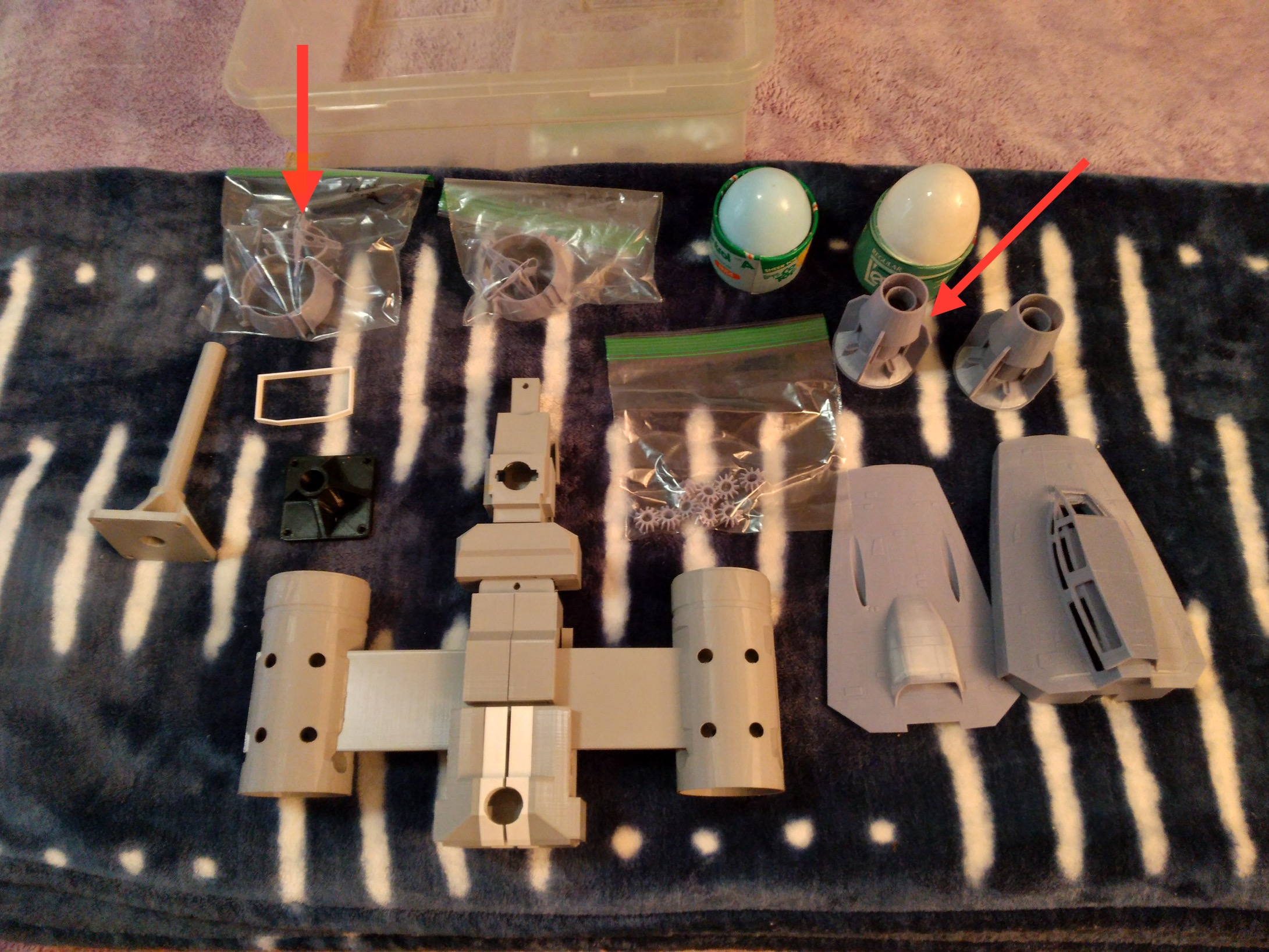

Can I ask where you found the thruster 3d files - ie the Saturn V bits, and the windvane files? I pointed then out with red arrows in the attached photo. Thanks

DaveG
i have a question about the saturn main body halfes, how long are they? according to your file, they are around 166mm
but from the bandai 1/72 -> times 3 -> makes 1/24 they are only 159mm
i checked also the diameter wich should be 69mm, wich is right in your step file
but the bandai is only 66mm, witch is 5% smaller (66/69=0,9566)
166*0,9566=159mm
conclusion, i think the bandai is 5% to small, i bought/only found the revell saturn v, maybe theirs is to short, i just want to clarify

Sorry, I have no idea if the Revell Saturn V is too short or if Bandai's kit it undersized. Use what you've got, make it look good and you'll be happy. Nobody is ever going to put a ruler to it! Cheers.

Rulebreaker said:
DaveG
i have a question about the saturn main body halfes, how long are they? according to your file, they are around 166mm
but from the bandai 1/72 -> times 3 -> makes 1/24 they are only 159mm
i checked also the diameter wich should be 69mm, wich is right in your step file
but the bandai is only 66mm, witch is 5% smaller (66/69=0,9566)
166*0,9566=159mm
conclusion, i think the bandai is 5% to small, i bought/only found the revell saturn v, maybe theirs is to short, i just want to clarify
Click to expand...
I can tell you, authoritatively, that you want to cut your L'eggs Eggs containers at 69.5mm OD, because that is the precise "sweet spot" to have them merge with the Saturn V cans from the vintage Airfix kit in 1/144 scale. As to the length, that's a matter of interpretation and opinion (and may have varied from Y-Wing to Y-Wing), but I think you are probably right in your calculations that the Bandai kit is a little "too small" -- which is why, to my Fibonacci-ratio-preferring eye, the Fine Molds 1/72 Y-Wing is a "better model" than the Bandai 1/72 kit, even though Bandai had access to digital scans of the original where Fine Molds did not.

star-art said:
Please don't use PLA. This is a fairly new material that isn't proven to stand the test of time. It is definitely NOT engineering grade. On the other hand, ABS is a proven engineering-grade material that's very capable and as a bonus it can be chemically welded to butyrate, styrene, and acrylic. That makes it ideal for printing structural parts for our model projects.
Click to expand...

This video of a display showing the results of different types and brands of 3D filaments being hung outside for 7 years on a west facing fence might be a handy reference. It also illustrates what you say about PLA, although the control pieces that were kept inside seem to have fared pretty well.


Last edited:
Thank you . I was thinking it was the piece from the Hawker as well. I did not have the V-2 rocket in my library of kit scans. Thanks for the help.
