Spaceship from Concept Art -WIP Scratch Build- w/FINAL PHOTOS

[TheBeast]

Impressive work, of course, but praise from me is completely shadowed by the luminaries above.

I WILL be watching.

As an aside, everyone is familiar with the hot pin method of rivets? Sometimes plastic is too thick or in place to allow reversing.

My own meeting of Mr Doohan was him doing signings at a college bookstore.

He was cordial but rather quiet...

... until I stepped aside and was followed to the table by a pair of coeds.



[MonkeyInk]

As someone who doesn't really do much scratch building, this is super impressive to me



[joberg]

I don't think that I could make one of these very detailed models like you are building again. But looking at your progress reminds me of my old days. Please keep up the good work.

I think you could Katsu-san



[kermet]

Wow Great detail your modeling skills are up there with the ILM guys I love it gives me insperation



[Carlb]

Katsu- Thank you very much. Your body of work in modeling is second to none. I look forward to your next build.

TheBeast- Thank you. I am aware of the "hot" pin method. It works well but, in my opinion, requires a bit more skill to control.

Kreativebox- Appreciate your comment... most scratch building has given way to amazing software and hardware solutions.
Those are cool, but I enjoy the challenge of brain to hand to material...and being at the bench, rather than at the computer.

Joberg- 100% accurate.

kermet- Thank you kind sir, glad you're feeling inspired. I am delighted to watch your wonderful builds as well



[Carlb]

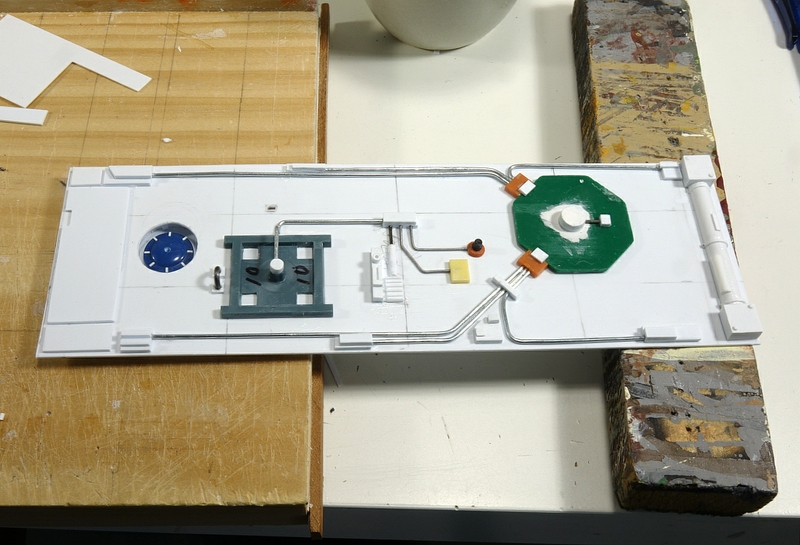

Worked on the bottom plate of the bow. The large green octagon is a 1960's vintage clothing button, and so is the
round blue dome in the recessed area. The large faded green square is the center of a kit sprue tree.

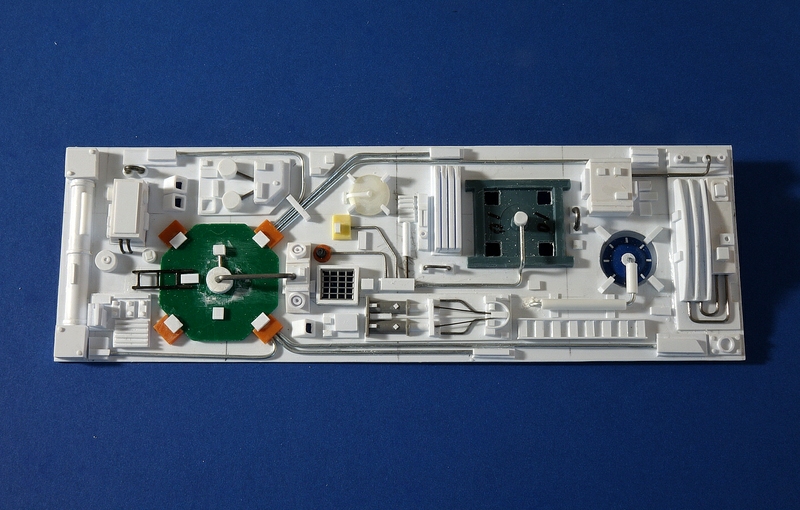

Filled it up with details, perhaps a bit too much......Once I get into the "zone" the time flies by quickly, and much gets done.

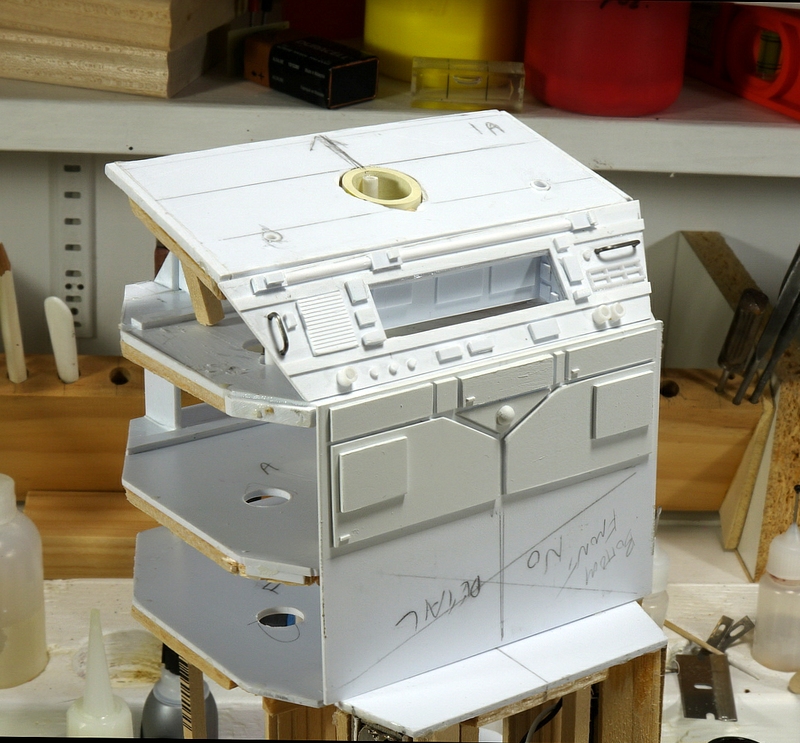

Moved over to the nose, which has two different sloping angles. Building these out to accept upcoming antennas.

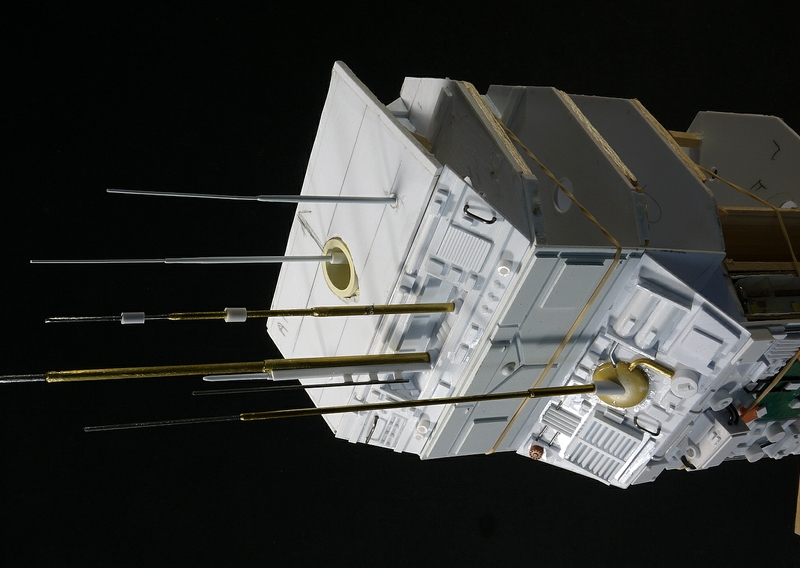

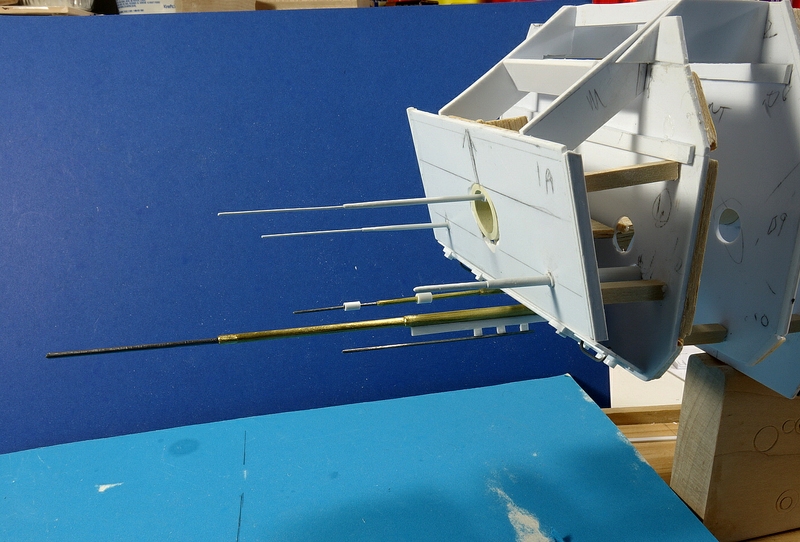

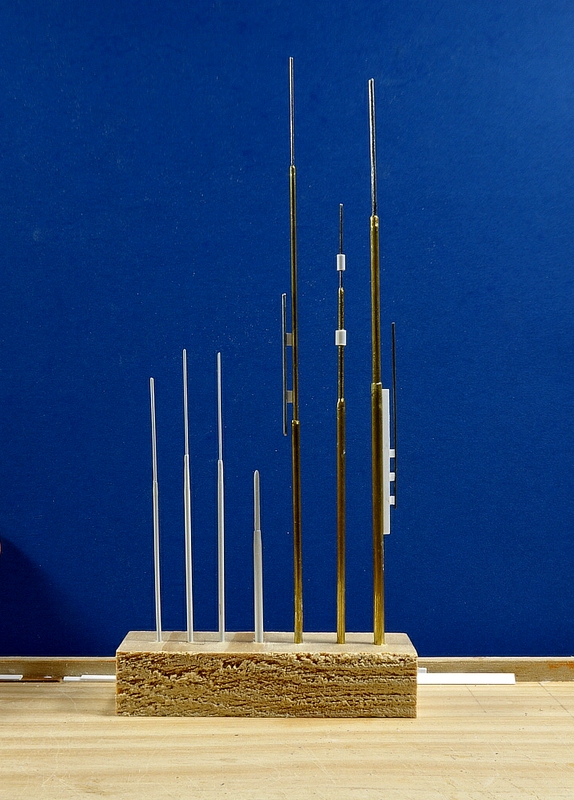

The antennas are K&S brass telescoping tubing, combined with florist wire. A few got primed,
the rest will get their chance later. I'm not sure why, but I really enjoy making these.

All antennas are supported inside the ship hull by styrene hollow tubing. The antennas are made much longer
at the base than will be seen, so they just slide in and stay in place on their own.
They will remain removable and not be glued....

Antenna area now complete. Front face plating next....

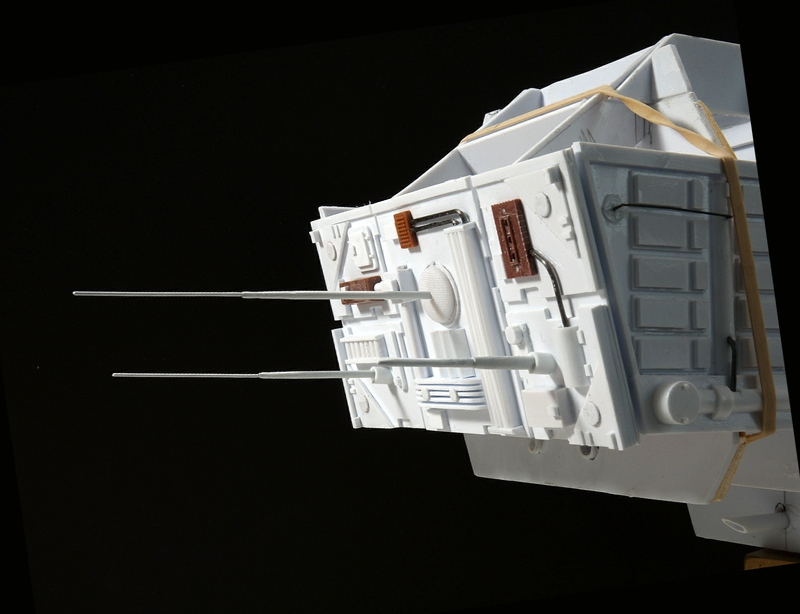

The front plate received less detailing...and is now complete.

Till next time...



[stevielewis]

Really coming along well. The antennas look great.



[joberg]

Everything seems to go well...love the greeblies/antennas also



[CosmicQuest]

I 100% concur with the other comments!! Looking great. My apologies if you've covered it but what type oof wire are you using for the "piping" on your panels? Thanks again Carlb



[Carlb]

Thanks very much for your approvals stevielewis, joberg and Cosmicquest.

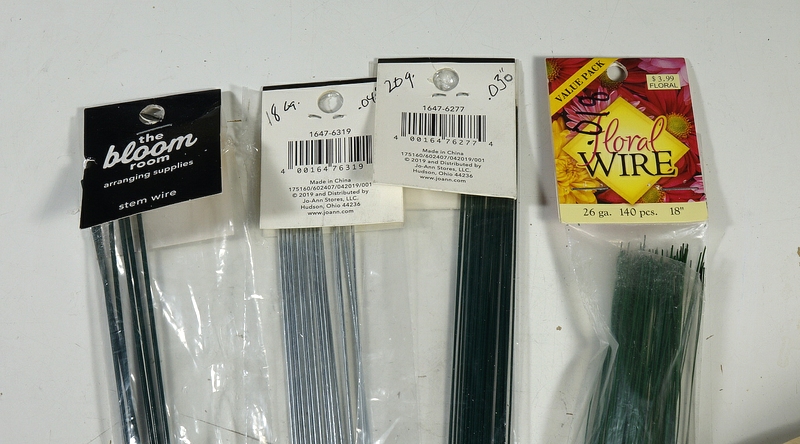

Cosmic- I use florist wire, also called "stem" wire. It comes in a variety of sizes. Here's my stock that I purchased from the
US chain Jo-Ann Fabrics. Most have glossy green paint that needs removed. You can find it at most arts/crafts stores,
in the artificial flowers department .



[CosmicQuest]

Thanks very much for your approvals stevielewis, joberg and Cosmicquest.

Cosmic- I use florist wire, also called "stem" wire. It comes in a variety of sizes. Here's my stock that I purchased from the
US chain Jo-Ann Fabrics. Most have glossy green paint that needs removed. You can find it at most arts/crafts stores,
in the artificial flowers department .

View attachment 1827676

Thank you for the reply! I'll have to go get some. That seems like it would be so much better than heat bending the small styrene rods for my piping.



[CosmicQuest]

Hey Carlb.. I am curious what kind of mesh is this that you used in the screen piece? II have been looking around for some good mesh to use in my scratch builds.



[Carlb]

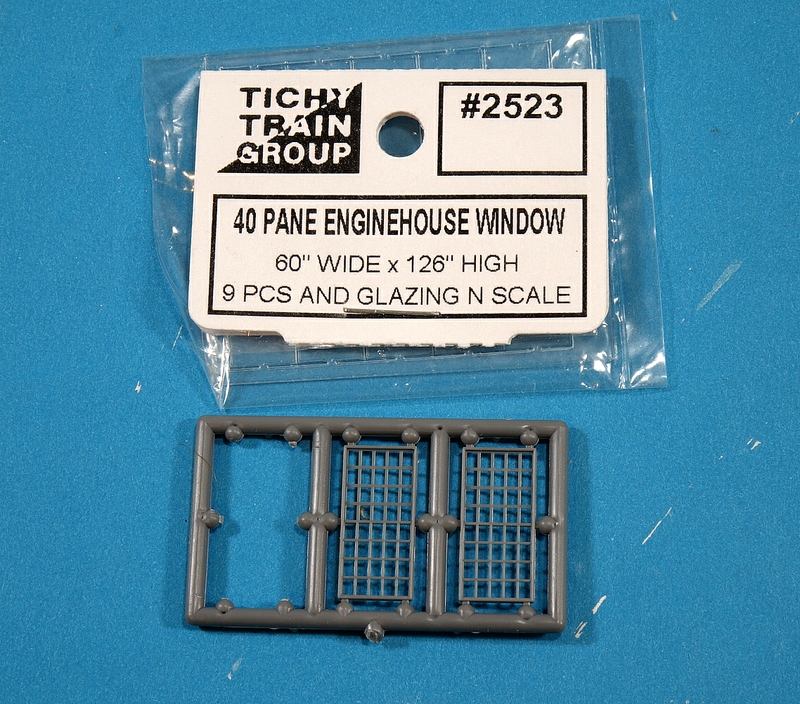

Cosmic- It's not a mesh, but the sash of a styrene model window I've used in the past for building structures.
Here's the package they came from:



[CosmicQuest]

Cosmic- It's not a mesh, but the sash of a styrene model window I've used in the past for building structures.
Here's the package they came from:

View attachment 1829637

Nice! Thank you again!!



[joberg]

Nice! Thank you again!!

Michael's has a lot of white plastic grids (different square sizes) in the knitting section Easy to cut and glue.



[CosmicQuest]

Michael's has a lot of white plastic grids (different square sizes) in the knitting section Easy to cut and glue.

Thanks Joberg, I'll check over there!



[Carlb]

The guns on the ship are small, and I mostly followed the design from the concept art.

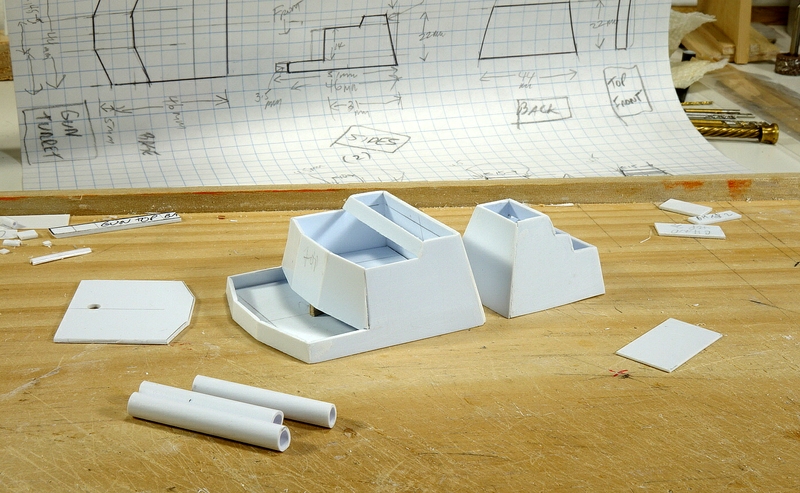

Based on the frustum of a pyramid, this familiar shape is widely used in the Star Wars universe. I drew up the
individual wall shapes on paper, and taped those to .04" (1mm) styrene. Cut them out and began assembly.

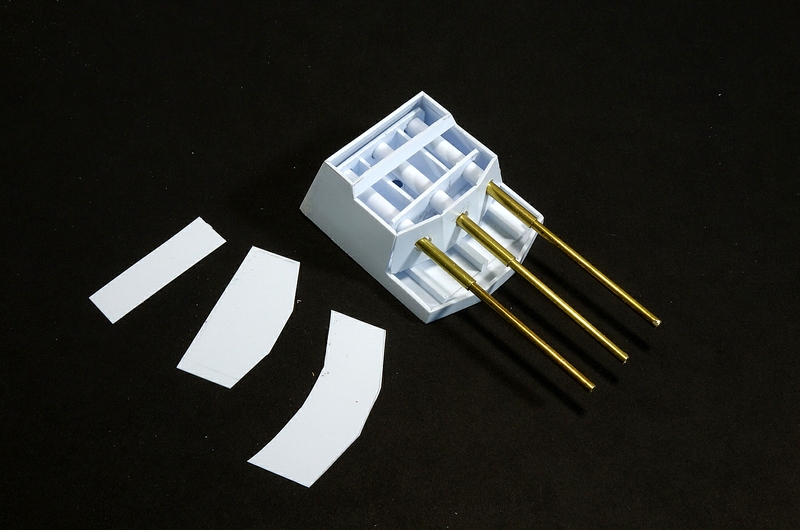

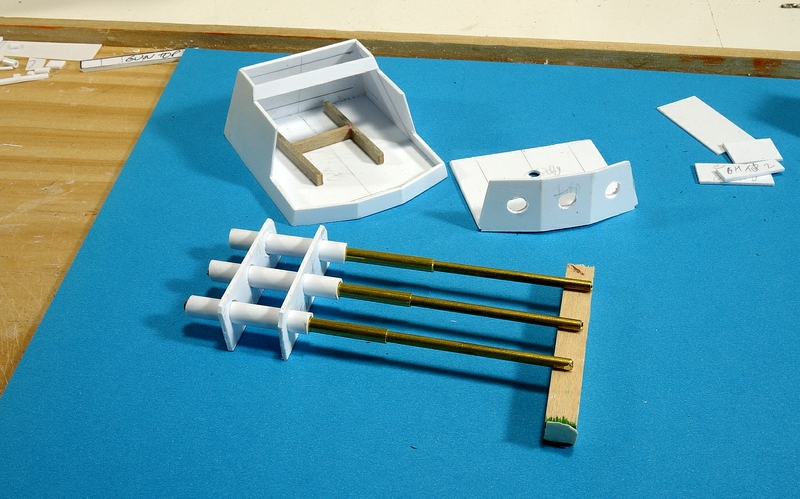

The interior will support 3 short guns I made of two sizes of brass. I built this support frame with styrene tubes,
firmly fitting the outer diameter of the widest section of brass.

The triple gun support assembly slides into place, here checking for fit.

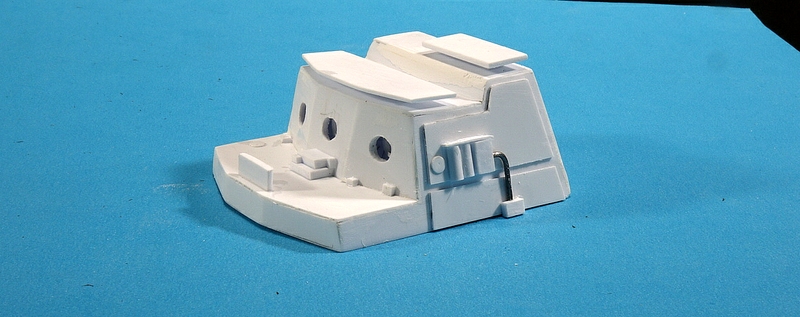

Starting to detail the main structure....

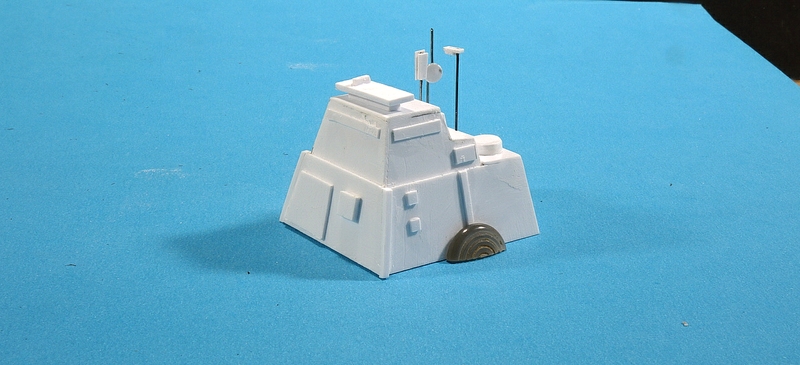

The 2nd structure receives its details...antennas were made from .02" (.5mm) florist wire or .016" (.40mm) brass.

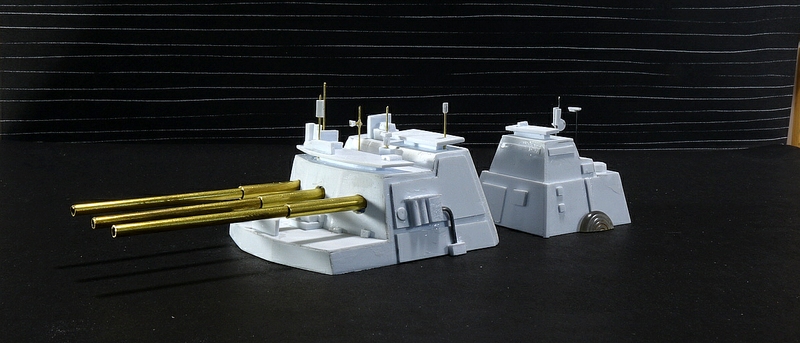

Complete and ready for primer.

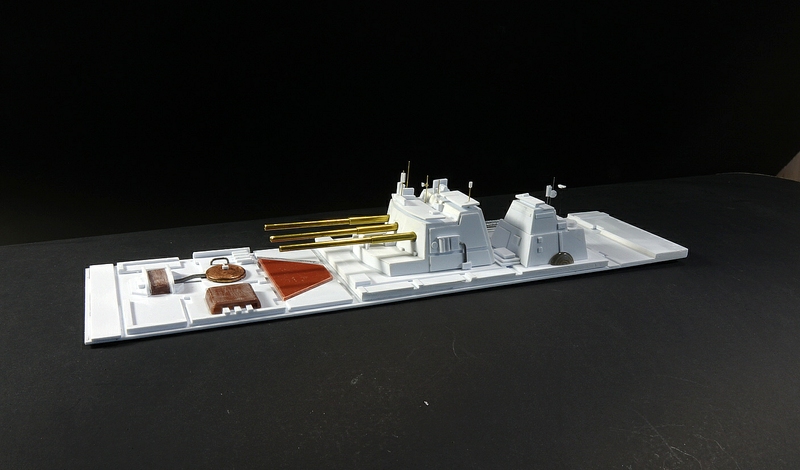

A simple base plate was added..

Till next time...



[JamesM242]

Carlb - outstanding work! Thank you for sharing your progress.



[CosmicQuest]

Awesome as usual!!



[joberg]

Clean and sharp
