An RPF Open Source 5 ft Millennium Falcon Build/Reference Thread. All Are Welcome

[jcoffman99]

Any ideas on the circled bits?
View attachment 1639004

The one on the right is a Duster gun.



[jcoffman99]

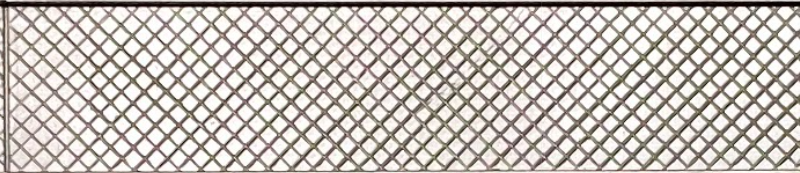

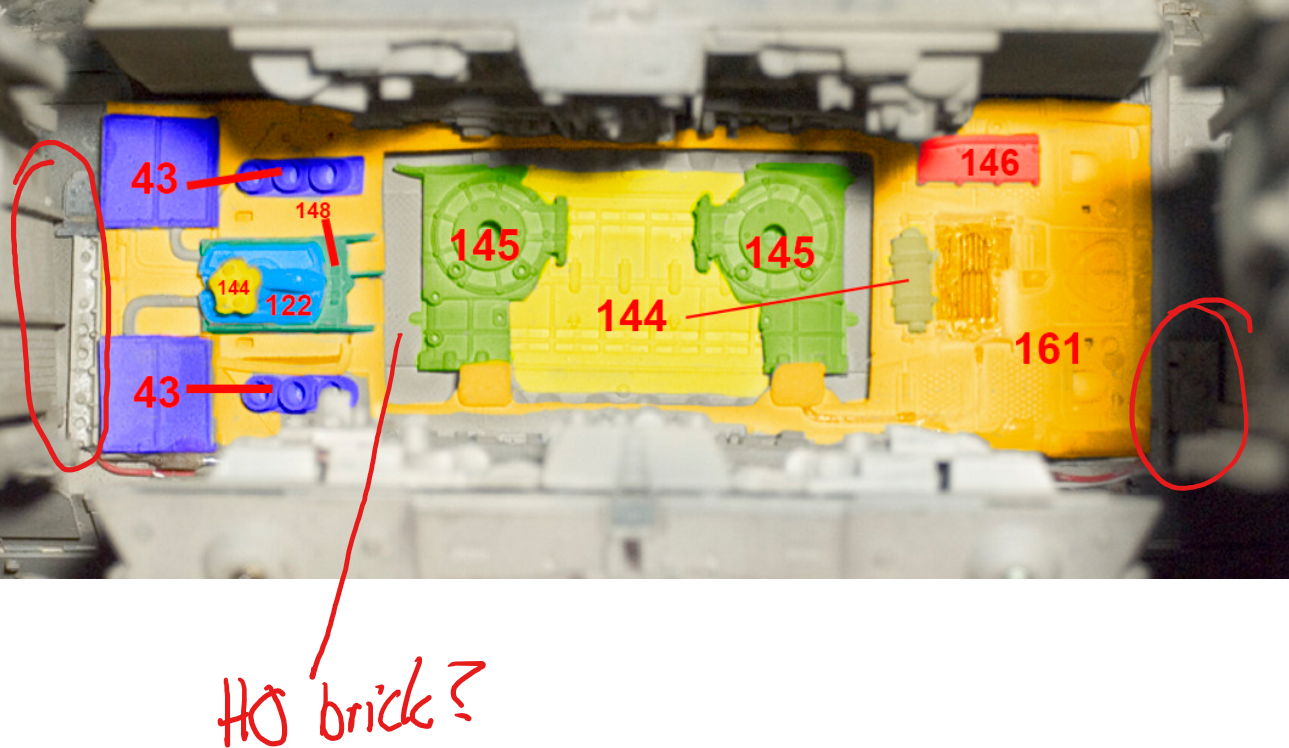

The "HO Brick" is a cut down piece of the Pontoon Bridge I believe. Thoughts?



[Studio Kitbash]

The "HO Brick" is a cut down piece of the Pontoon Bridge I believe. Thoughts?
View attachment 1639404

View attachment 1639403

Seems plausible enough.



[Tsophika]

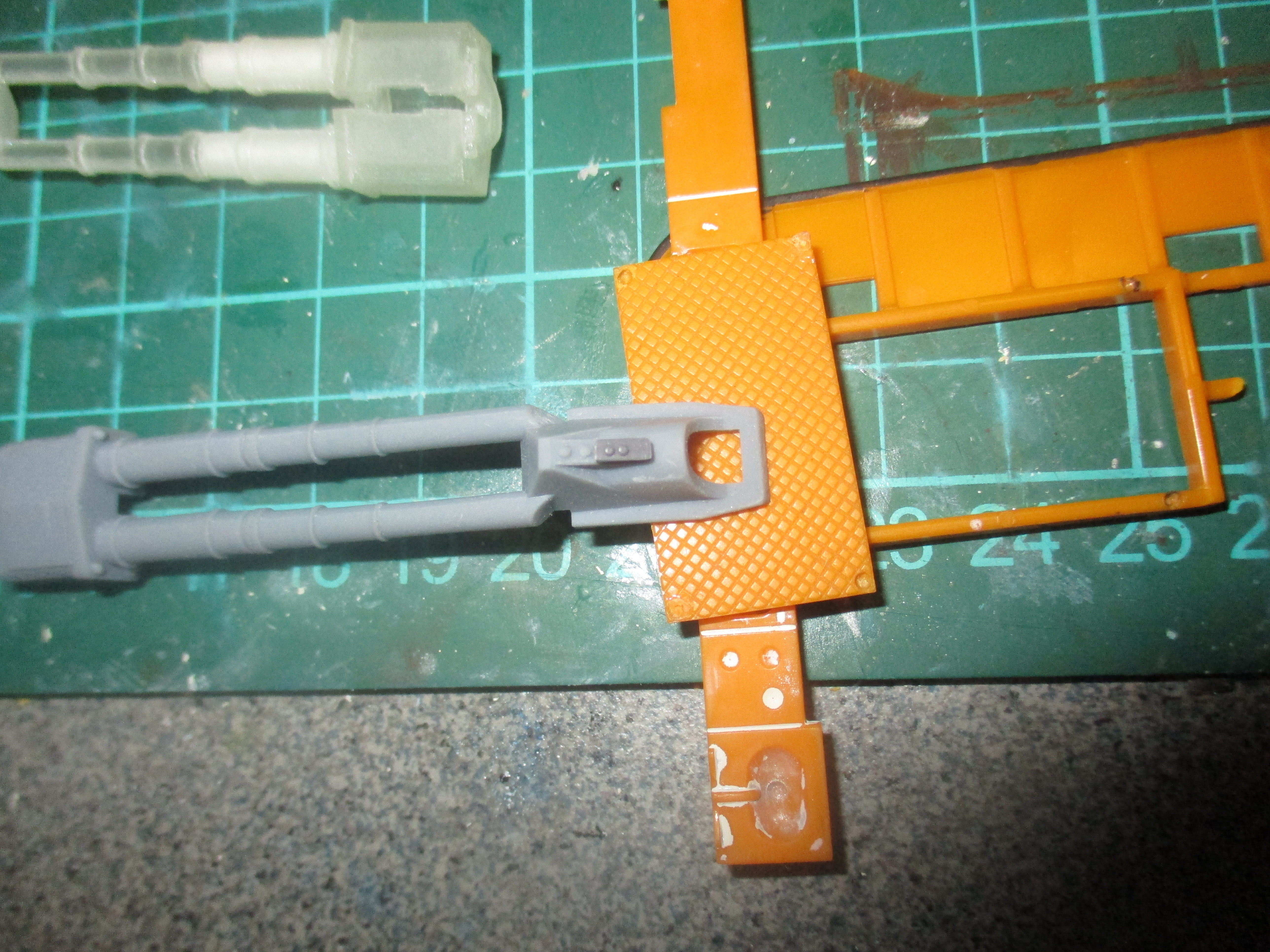

Think a little more orange.

Craig



[jcoffman99]

Seems plausible enough.

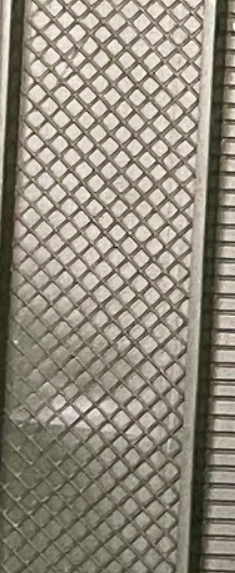

Look like you can see the raised part of the Pontoon bridge in the hole.



[jcoffman99]

Think a little more orange.

Craig

Hmmmm.



[Studio Kitbash]

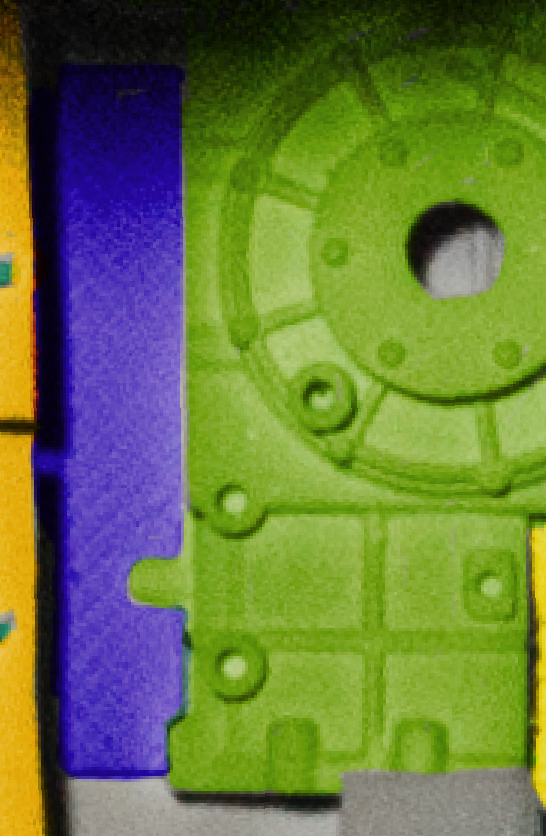

Oh, yeah, there is a Sealab part that also matches, and there are lots of other Sealab pieces in this area.



[jcoffman99]

Oh, yeah, there is a Sealab part that also matches, and there are lots of other Sealab pieces in this area.

I can't see to find a complete Sealab scan. Anyone have one?



[Studio Kitbash]

I'm not in the studio, but next time I'm there I can send a picture of the piece.



[Studio Kitbash]



[jcoffman99]

Awesome. Thank you. I'll fix my map.



[jcoffman99]

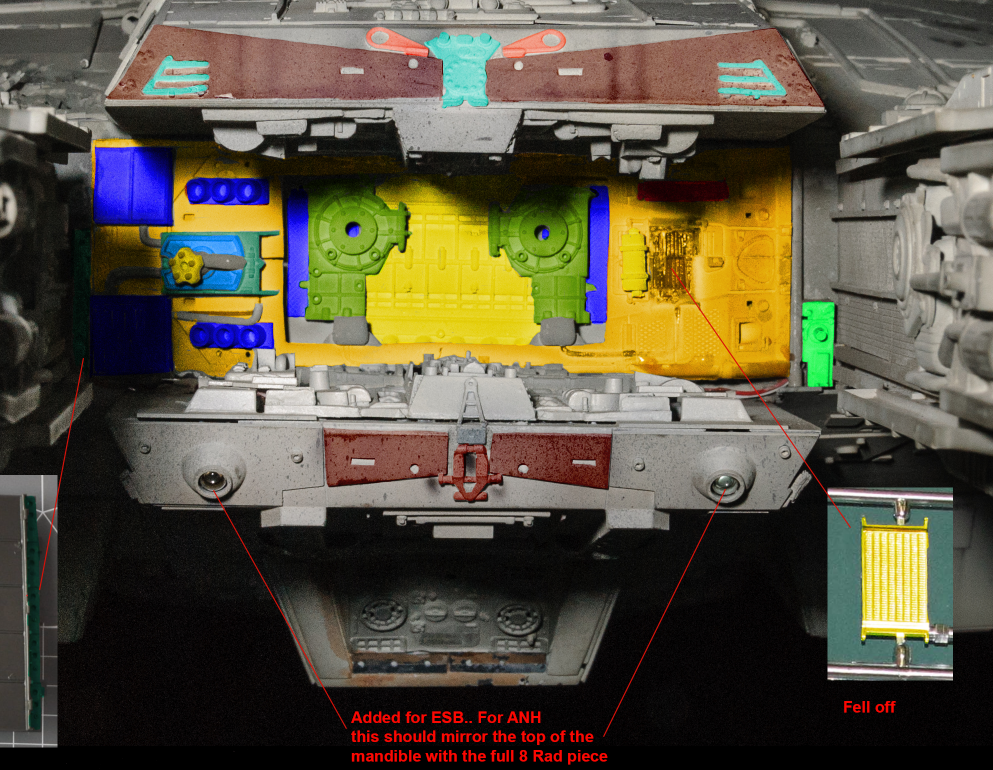

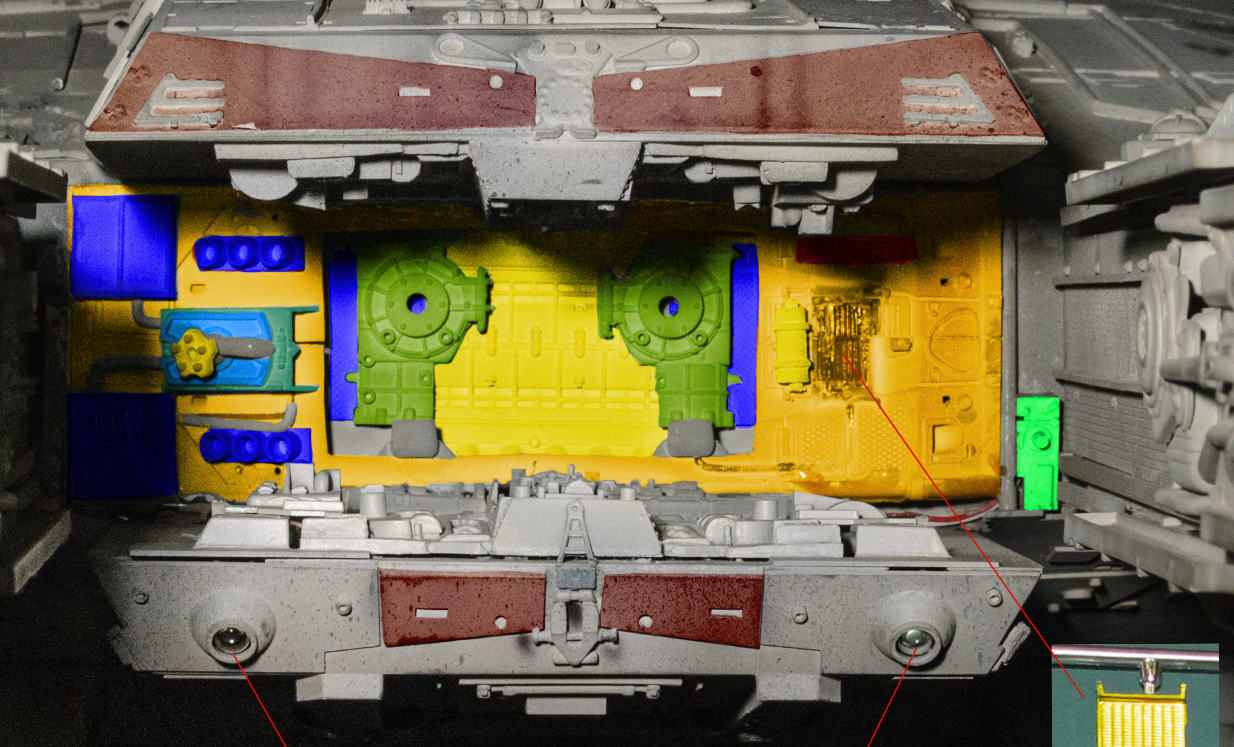

Getting closer...Just need the two pieces on the far left, (one looks like a truck frame but I can't find a match), the two pieces at the bottom of the Elf parts, and the round bar between the tank body and Duster gun.



[Searun]

Think a little more orange.

Craig

Think a little more orange.

Craig

Jedi !



[swgeek]

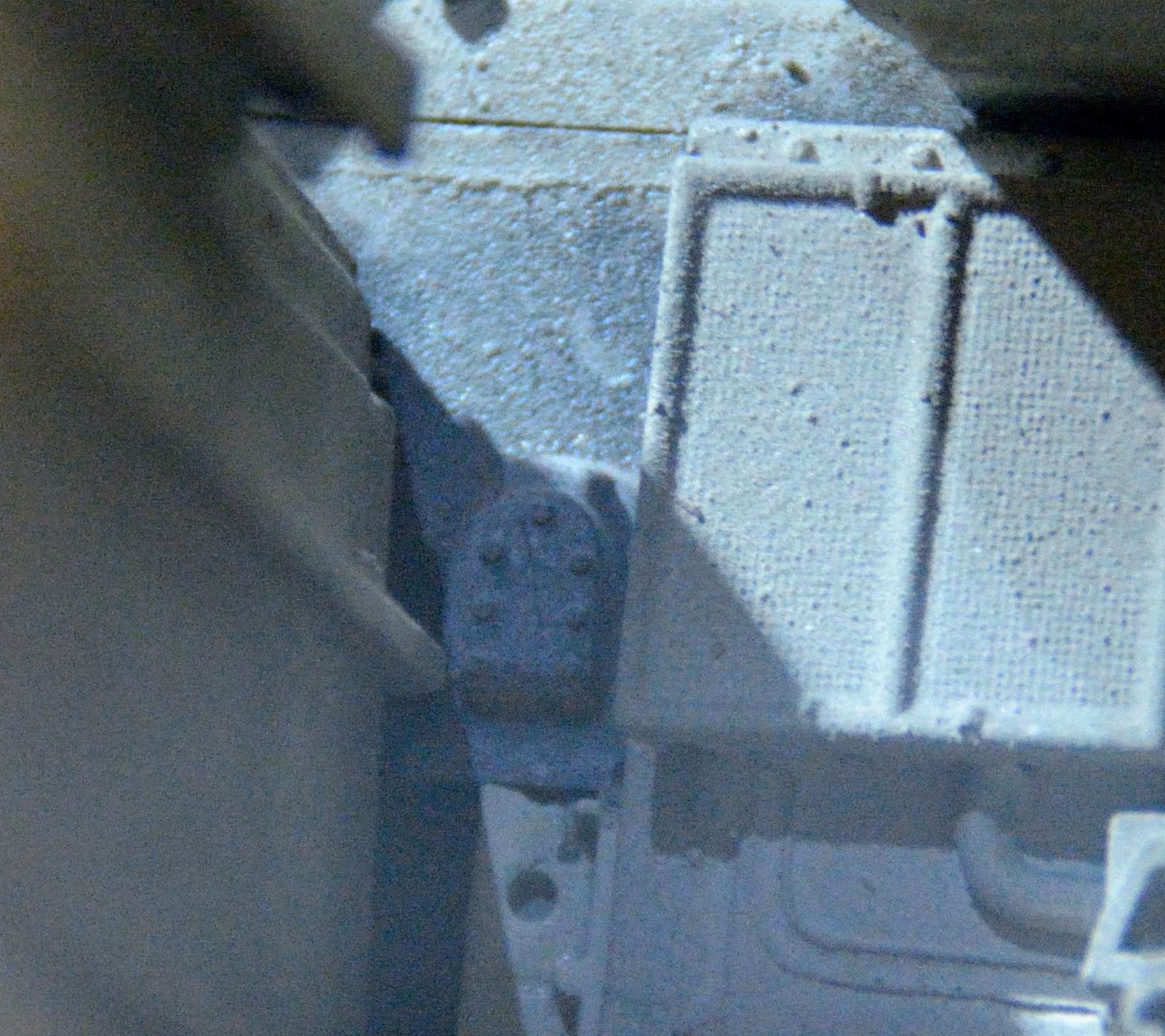

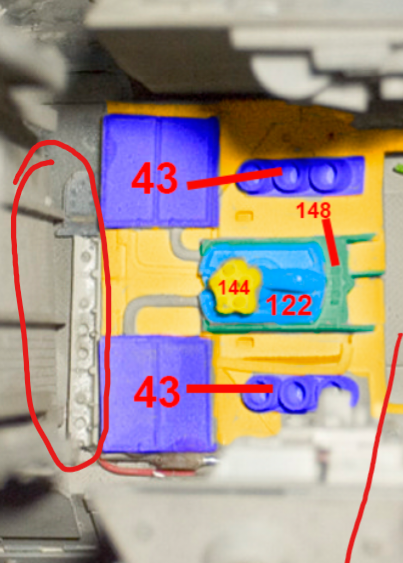

I was wrong earlier. The piece I was talking about in post 875 is not a rudder pedal. What I thought were holes are actually rivets.



[swgeek]

Also, the bottom part, circled in red is Tamiya 1/25 Centurion.



[Bjorn]

I was wrong earlier. The piece I was talking about in post 875 is not a rudder pedal. What I thought were holes are actually rivets.

View attachment 1639847

Cracking photo! Cheers,



[jcoffman99]

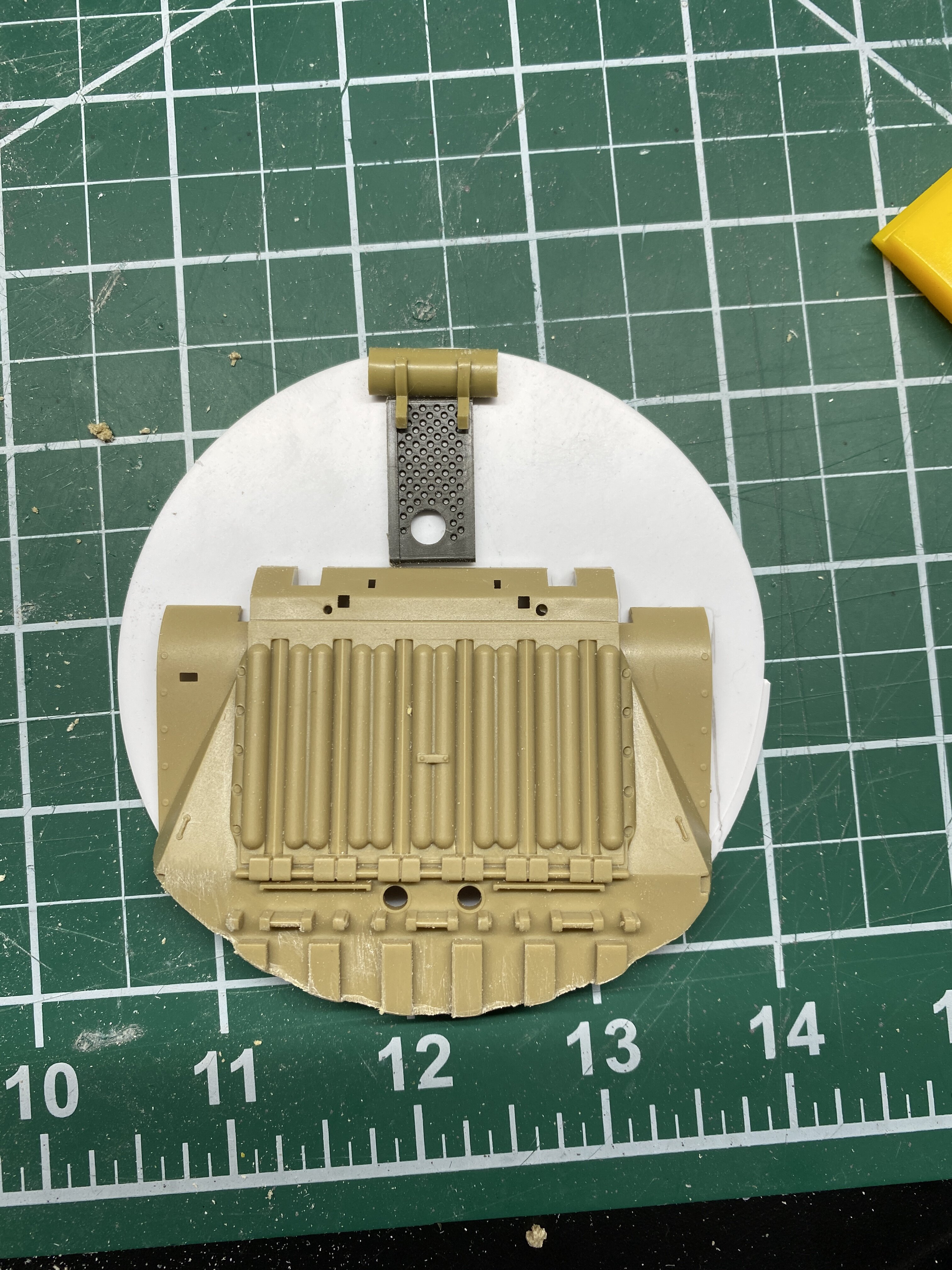

Almost there....



[jcoffman99]

Gotta clean up the edge but it’s progress.



[jcoffman99]

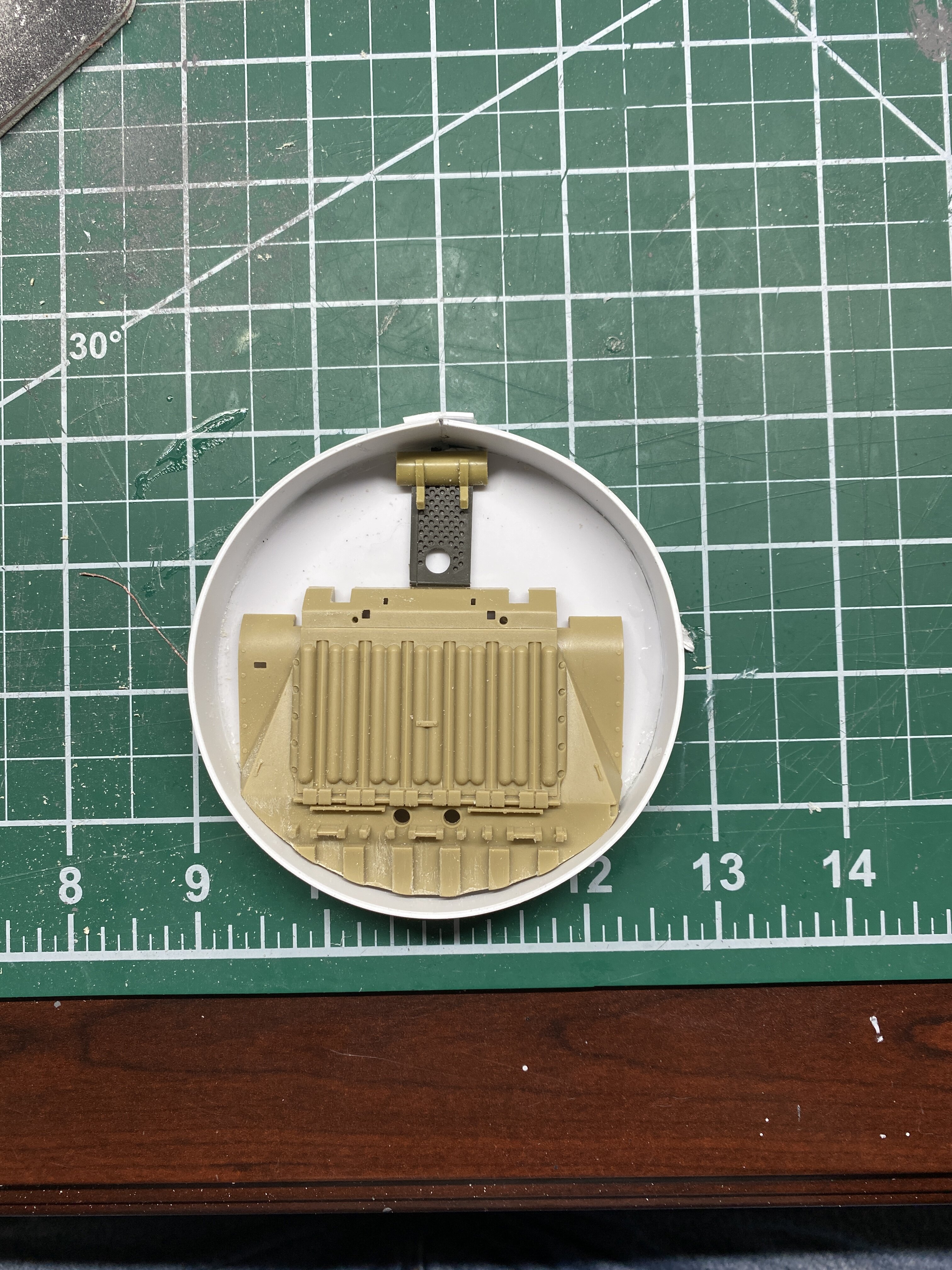

Ok. Be honest. Does this work for ya? I haven’t glued anything yet. When I do, the gap around the curved edge of the tank hull disappears. The seam will be hidden by the 8 Rad parts. Height is 14mm based of the PG.



[swgeek]

Looks good to me. I think you could eliminate the gap if you wanted, but I don't see a need to.
