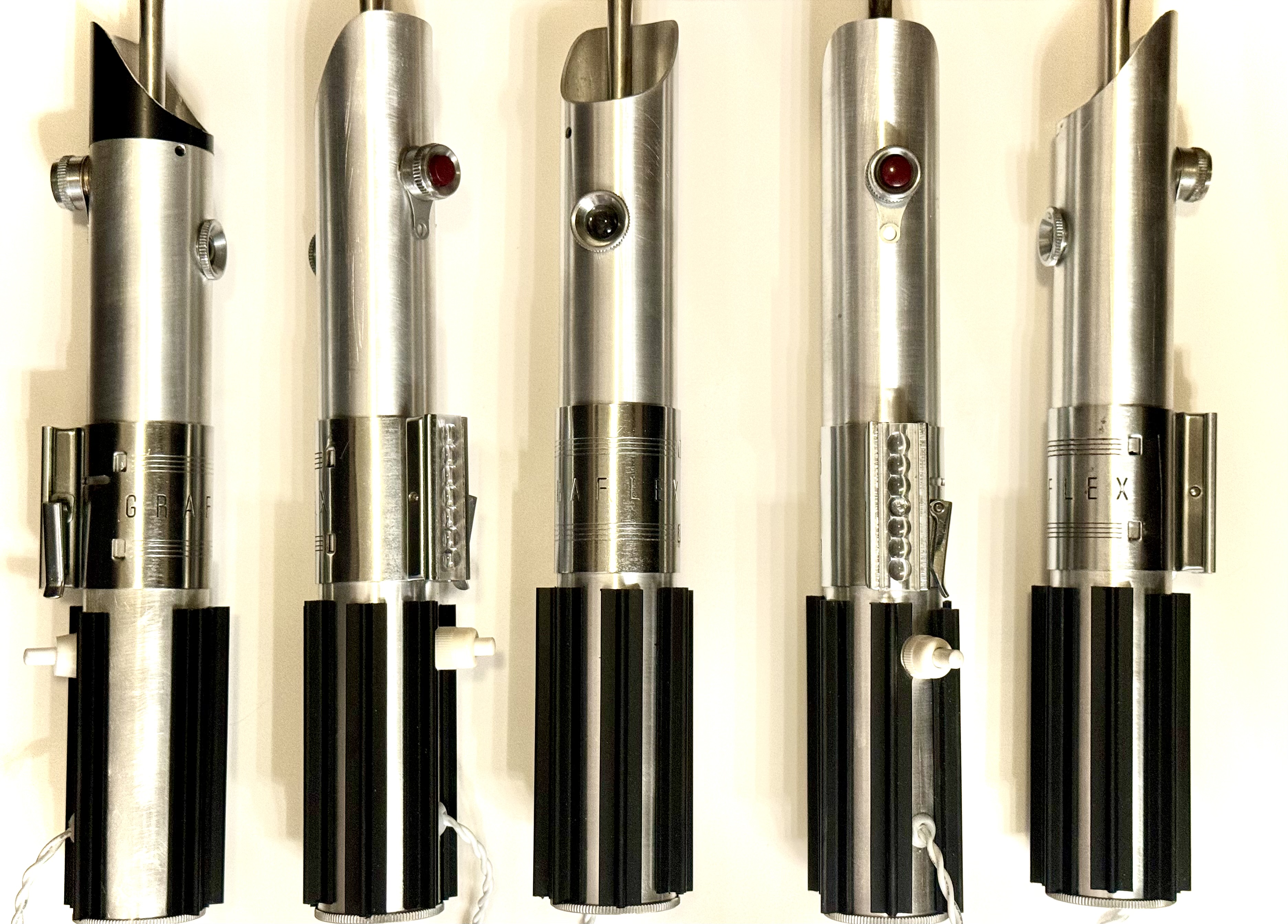

Just finished up these 5! All completed with vintage clamps, bubbles, beer tabs, thin knurled buttons, and eyes!
-
Welcome to the Project Runs Forum!
This forum is intended for interest gauging and active runs. Due to the transient nature of this forum, please keep all research and ongoing discussion in one of our main forums so your information is not lost.
Only Premium Members can start a new run.
Interest Luke / Vader ANH shared stunt saber kit
Amazing to see 5 of those finished together! Thank you Shane
Just 4 base kits left in stock people, all the rest is sold out. Cheers
I have converted the last two kits I had on hand and released them on the website. Those are the very last two. Get them now if you have interest in this saber because I don't see myself doing more anytime.
supergreenprops.com
Luke ANH stunt saber
supergreenprops.com
taco
New Member
Hello!Hello there,
small but important update,
Knurling.
bane of my existence!
Knurling is hard to make on a relatively small lathe. There are also different type of knurling and knurling tools. Diamond knurling is actually simpler to make because it is made with a double wheel that each does one diagonal. You tighten the tool itself, don't really push with the lathe chariot.
Straight knurling is hell.
you have to push the tool into the material really hard to make the knurl appear little by little. The thing is, with my lathe, the material was usually stronger than the tightening of the lathe chariot and tool holder, so they started to turn more and more as i pushed on the material, never really managing to get into the material.
So, I added a first strong screw to hold the tool holder better and prevent him for rotating when pushing into the material, but then the perpendicular charriot started to turn on its axis as well and this one is harder to prevent.
I disassembled the whole system today to drill into it and add another screw that will only be there when doing knurling.

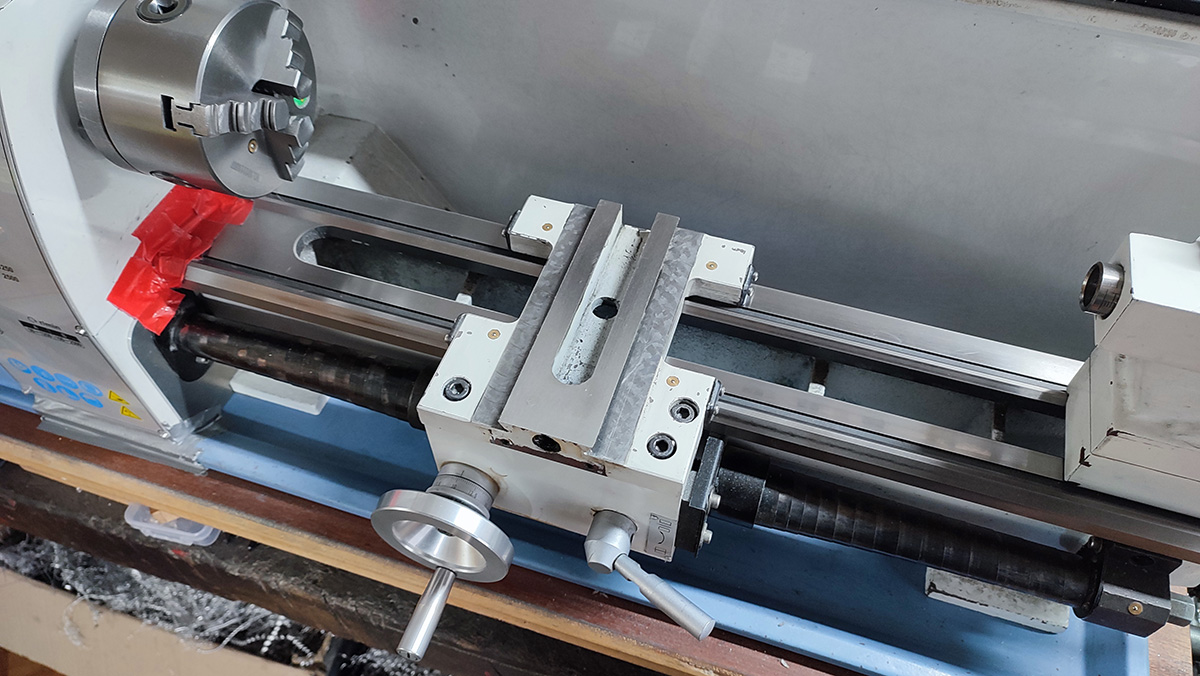

here is the lathe without any tool support anymore, good opportunity to cleanup everything as I never removed the big charriot before.
View attachment 1813721
all the parts...
View attachment 1813722

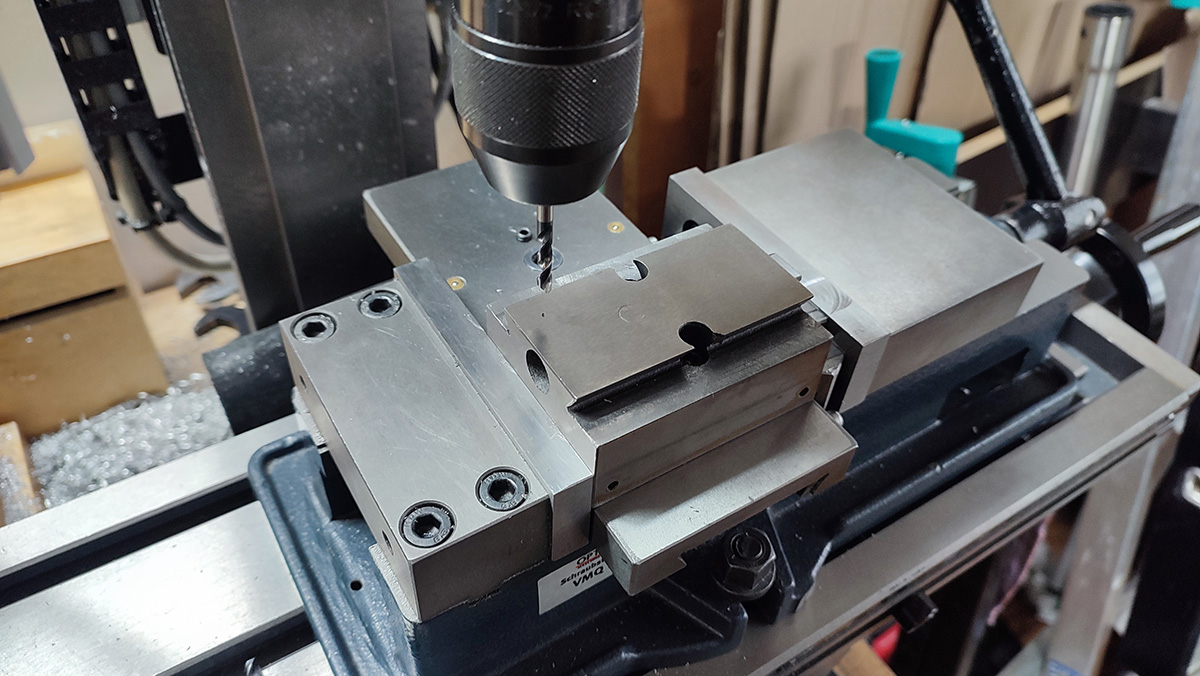

and now we want to drill a 6mm hole into 5cm deep of tool steel! yay!
luckily I have great drill bits now that will drill into really anything, so it's not that hard anymore. It was a lot harder the first time I had to adapt that tool holder to the lathe!
View attachment 1813723
anyways, didn't take other photos of the process, but here is the lathe reassembled with the two additional 12.8 quality steel screws:
View attachment 1813724
Screw #2 can obviously only be there when I do knurling and needs to be removed when using the chariot. screw #1 can be there most of the time and rigidifies the whole tool holder nicelly
#2 is doing a great job at keeping the charriot perpendicular now. However, with my last test, it seems the tool holder is still rotating a bit now even with screw #1! I have tightened everything a bit more tonight, i'll see if it works or if needs a 3rd screw!

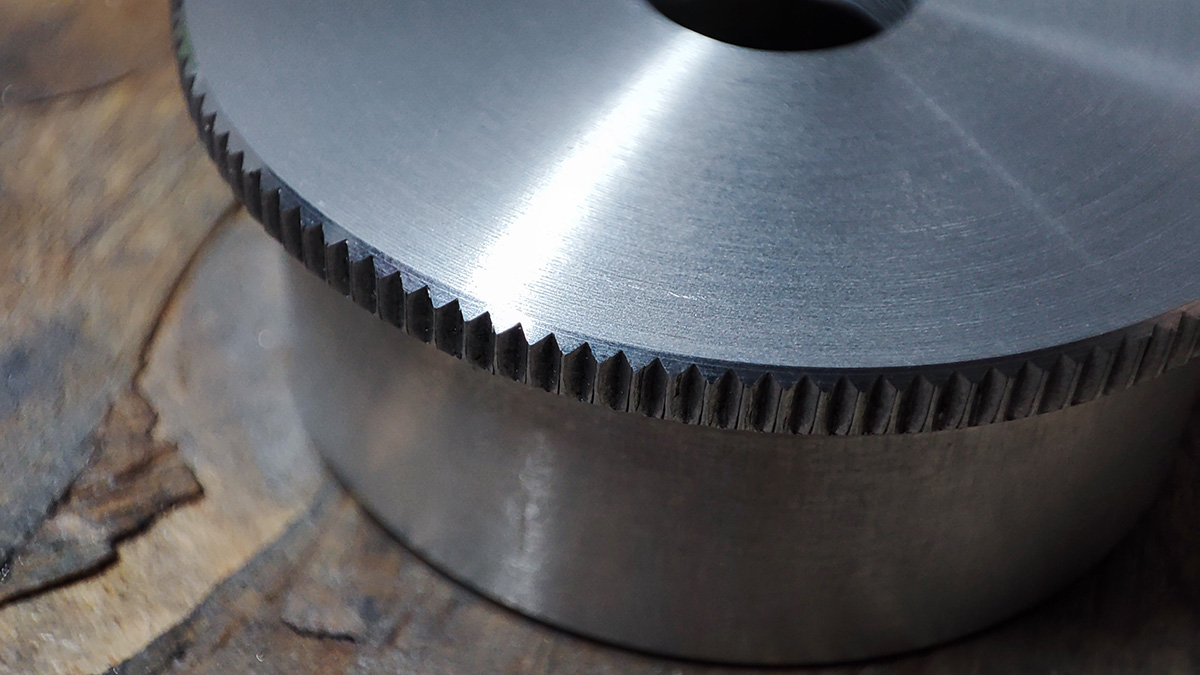

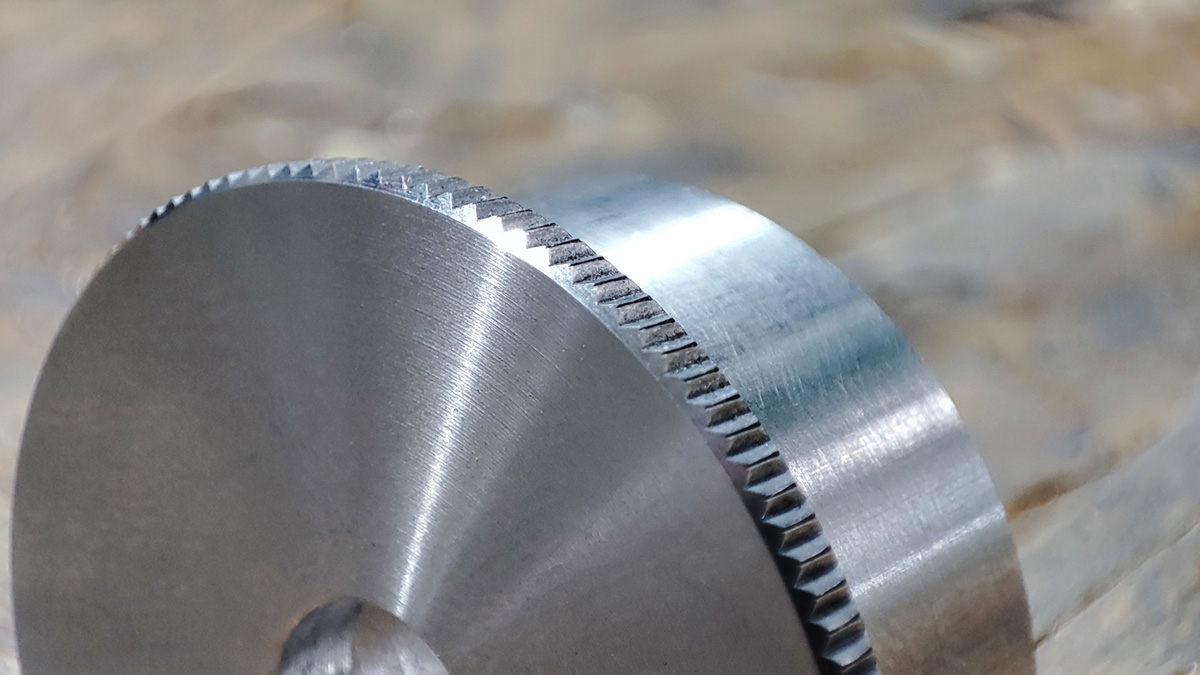

in any case, mostly successful, this is the best straight knurling that came out of that lathe so far! knurls are well formed. I have still a bit that I would like to improve, but it has mostly to do with how to hold the part. But it looks like we will get nice knurled end caps for this run
View attachment 1813725
View attachment 1813726
View attachment 1813727
cheers all!
I am now building Luke(ESB) Severed hand saber, and trying to machine Kobold flash.
However, I am wondering about knurled end caps of Kobold.
Please let me know diameter and height of end caps and size of knurling if possible...
The knurled base on one kobold I have here is 41mm diameter and 2mm high
I know I'm late to the party but do you have any more of these?Thank you Evan! much appreciated. Evan is the one that asked me to do this saber, I think we are all thankfull

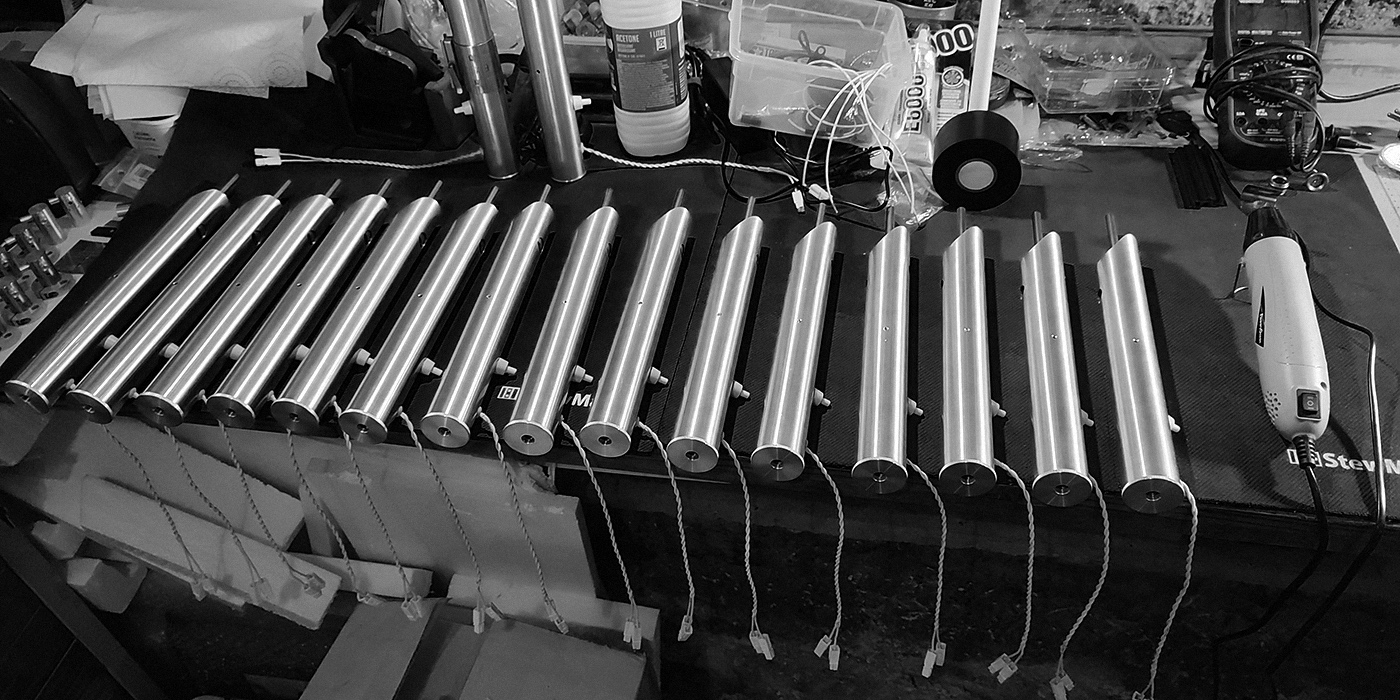

The second batch is ready for tonight!
the release is now in 4h. Still 8PM CET as planned
View attachment 1833623
T
Hey, I have one more but no ETA on completion and a couple people to contact before even if it has been a while.
Helllo--
Is there any chance you will do another run--or at this point you'd prefer to focus on other projects?
Hi,
I would prefer to focus on other projects, unless a lot of interest picks up here of course.
Cheers
I’d personally be interested if you do decide to do another run!
thank you for your kind words, that is adorable
this is not the square shroud thread, but this one is already planned for a small run of around 10 kits and 10 motorized semi-finished kits for when I have the time too. I already have the material, so I need to do it eventually
