Interest 'The Fifth Element' ZORG Industries ZF1 - Kit interest (Metal frame, metal & printed components, electronic movements and lighting effects)
- Thread starter JakeySnakey630
- Start date
Yes I only produce DX kits now (and they’re awesome )

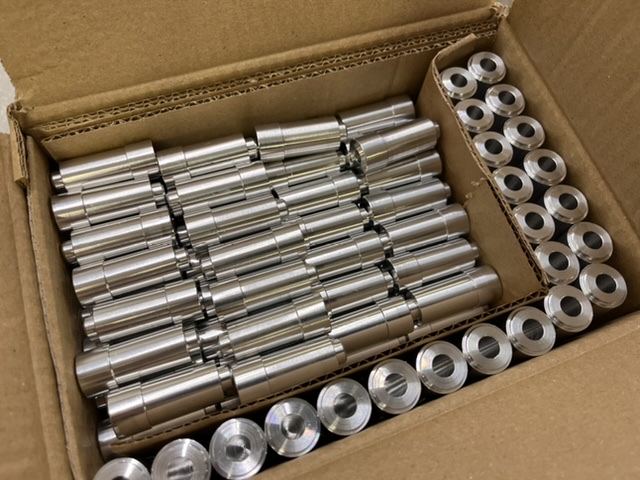

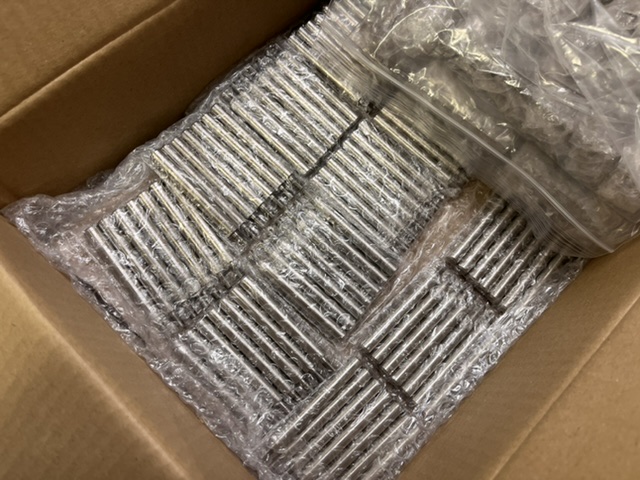

I had hundreds of darts, barrel and scope pistons, scope frame spacers and quite a few other parts CNC machined. I will be producing at least 50 more units into the future.
Painting table of all parts in the ZF-1 kits.
I have produced a table with all the painted parts and their respective paint RAL codes and colours.
Some parts need multiple base colours (IMO) and I have listed them as well in the columns to the right. There is also a key with more information.
I have produced a table with all the painted parts and their respective paint RAL codes and colours.
Some parts need multiple base colours (IMO) and I have listed them as well in the columns to the right. There is also a key with more information.

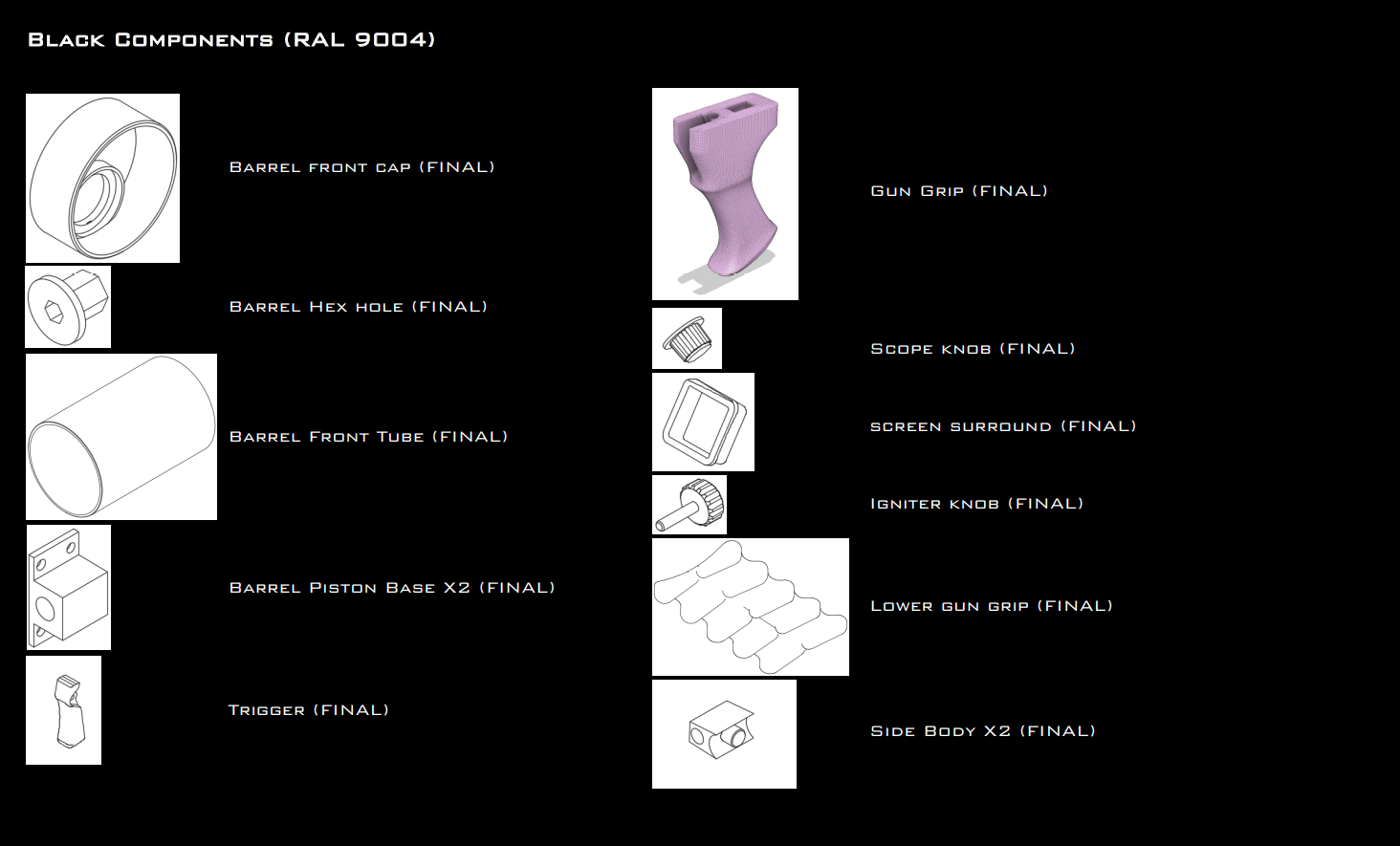

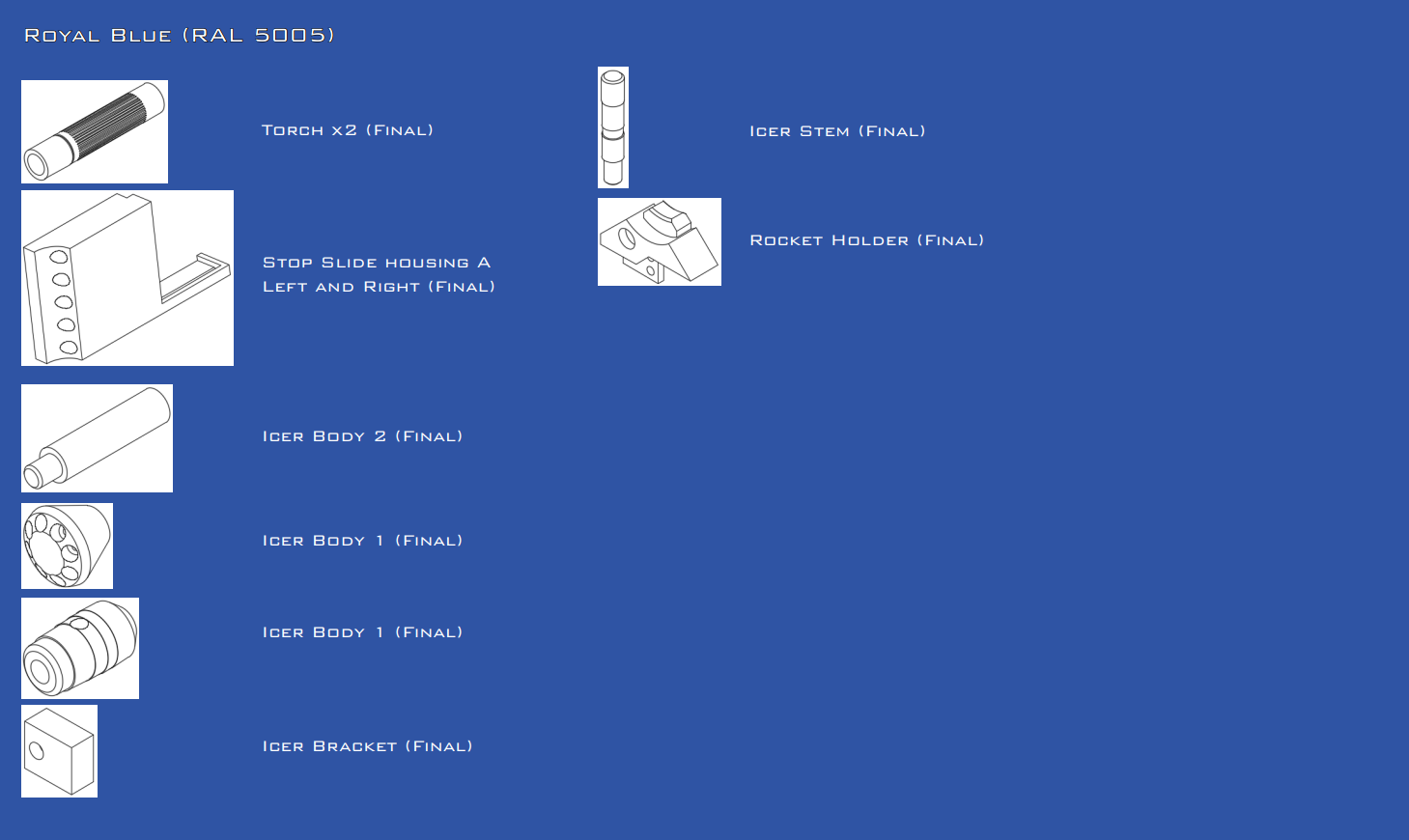

I have also produced a component painting guide.
It shows pictures and names of each component and allows you to easily work out what parts need to be sprayed a particular colour. I have laid the guide out to be completed in order of colours shown, with black being the most common base colour, then aluminium etc etc. This saves you time and energy having to go back to respray parts previously missed.
ZF-1 Component Painting Guide
Some example screenshots:
I hope this helps all the kit buyers out there!
Regards,
Jake
It shows pictures and names of each component and allows you to easily work out what parts need to be sprayed a particular colour. I have laid the guide out to be completed in order of colours shown, with black being the most common base colour, then aluminium etc etc. This saves you time and energy having to go back to respray parts previously missed.
ZF-1 Component Painting Guide
Some example screenshots:
I hope this helps all the kit buyers out there!
Regards,
Jake
Last edited:
Let the assembly begin!
TobermoryWomble
New Member
Did you ever end up having time to do the template for the camo pattern?
I'm just getting ready for painting week in the workshop
Excellent christmas present.
ZF-1 Painting Templates
These templates are copied across from templates I found on the RPF. If anyone knows who originally created them I will include their names. I used these templates when creating my first ZF-1 and they are perfect, so simply spreading the knowledge onwards.
These templates are copied across from templates I found on the RPF. If anyone knows who originally created them I will include their names. I used these templates when creating my first ZF-1 and they are perfect, so simply spreading the knowledge onwards.
Last edited:
New video explaining the latest updates to the newest kits.
This is effectively a placeholder video until I update the assembly guide series of videos (hopefully over the Christmas period!)
Thanks everyone

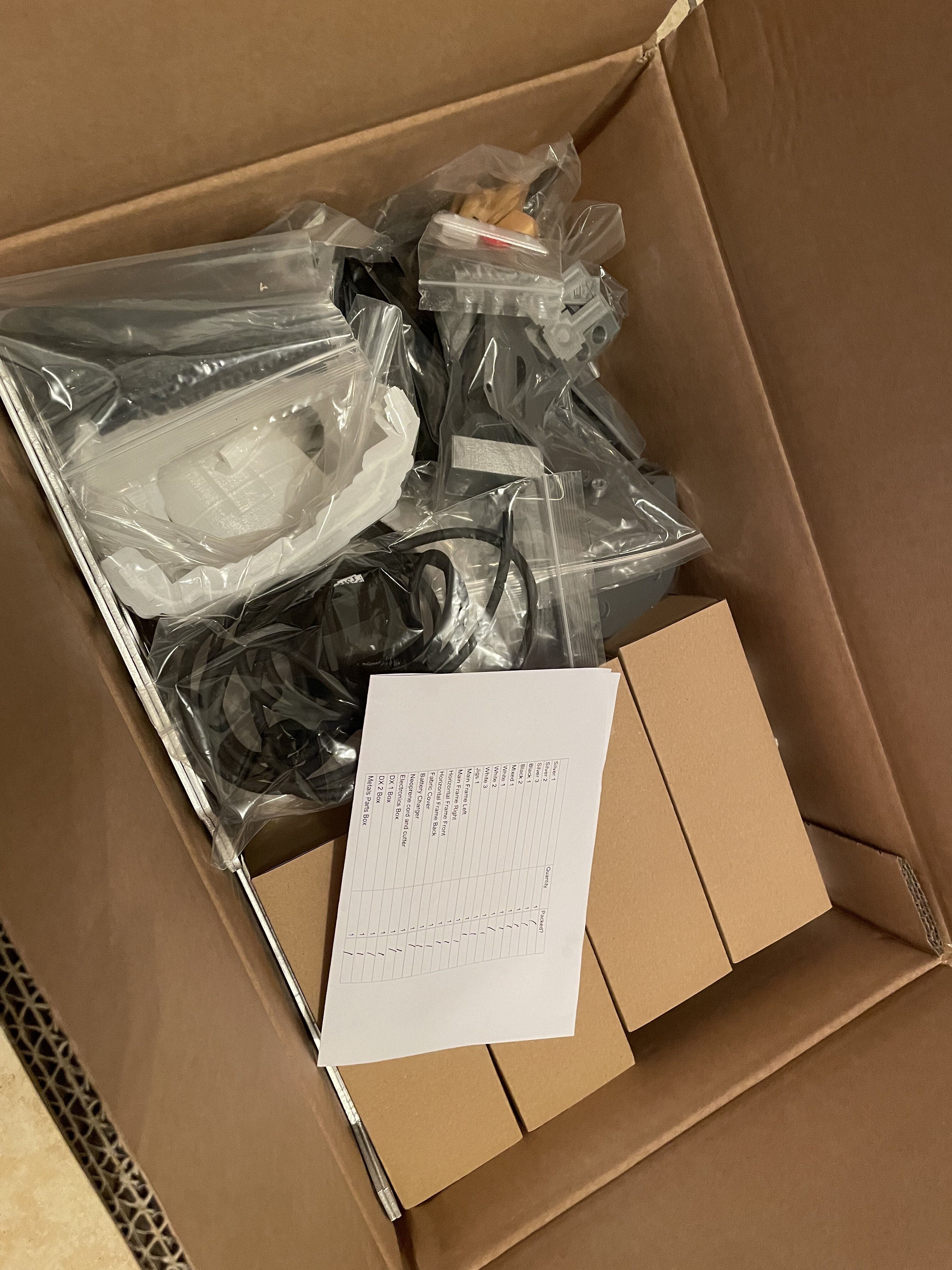

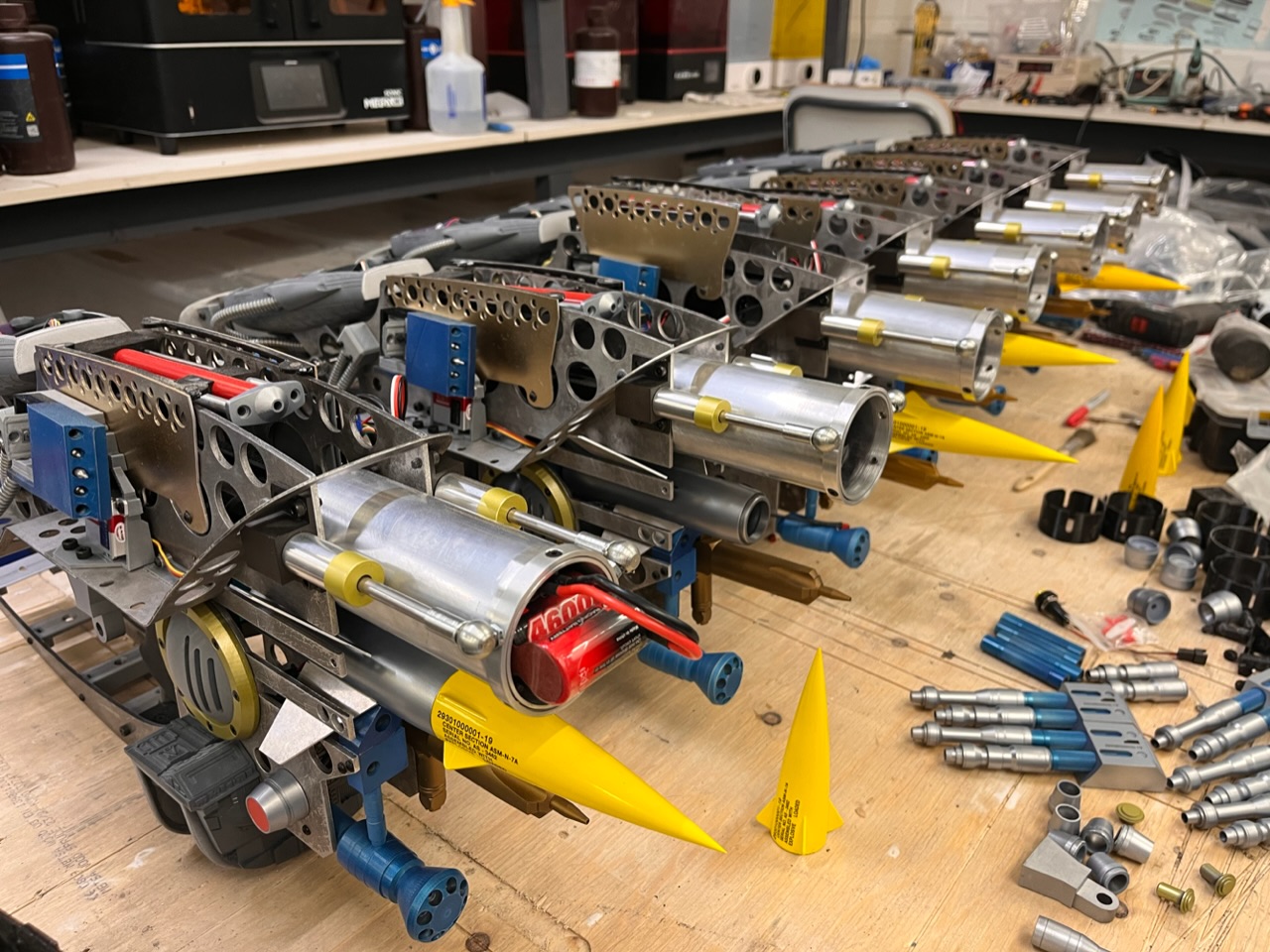

Latest batch a day or two out from shipping!
This is a new tuning video for the most recent batch of kits and any new kits in the future.
It’s a long video at 23 minutes but it goes through every step of the tuning procedure for every servo on the prop, and is a must see for anyone who is building my kits.
The control boards have matured to a point where (apart from any small bug fixes) I cannot foresee any major changes to the tuning procedure going forward.
Anyone with older revision boards will still have a very capable control board, but it will lack a few features that makes the build easier. Please get in touch if you’d like to buy the newer model as they are backwards compatible with older kits.
Hello everyone,

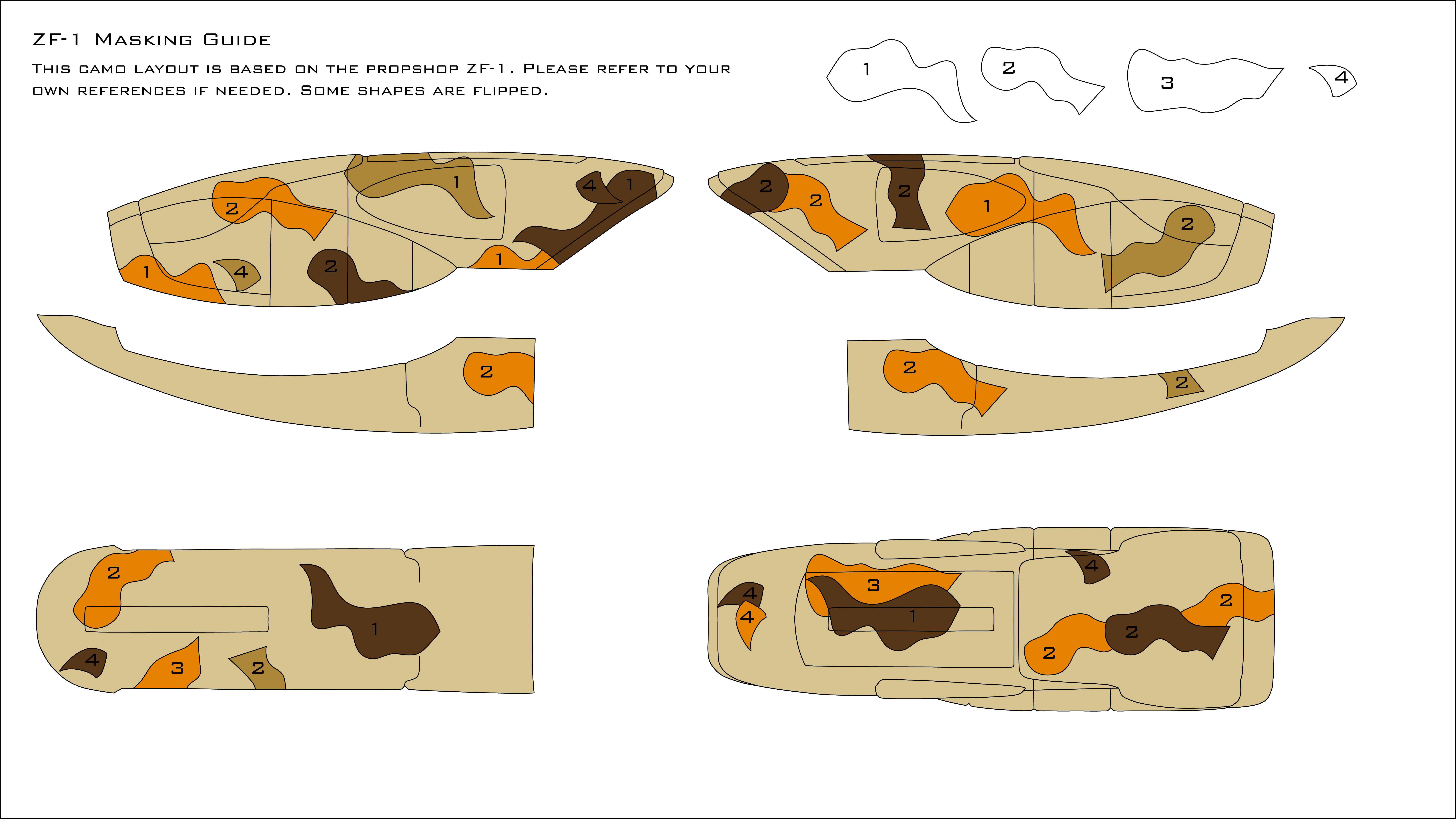

I have made up a camo spraying guide based off the PropStore ZF-1.
Please use this inconjunction with the masks to help you spray your camo.
Just remember this is a guide, and please use your own reference if you'd prefer. I just thought I would make it available to others as this is what I will be using going forward when painting completed ZF-1s for customers.
I have made up a camo spraying guide based off the PropStore ZF-1.
Please use this inconjunction with the masks to help you spray your camo.
Just remember this is a guide, and please use your own reference if you'd prefer. I just thought I would make it available to others as this is what I will be using going forward when painting completed ZF-1s for customers.
Sidewinder
Sr Member
How do we know which version/revision board we have?
It will be written on the board itself. If the shell is on, you should be able to peak through the left dart hatch to see it.
Sidewinder
Sr Member
ok, its easy - mines still unbuilt.
Hi everyone,
I have a kit ready to ship if anyone would like it. Shipping internationally from the UK. £850 + shipping.
I have a kit ready to ship if anyone would like it. Shipping internationally from the UK. £850 + shipping.
Hatefrost
Well-Known Member
I’ll message you
