Ok some updates !
I built the conical engine bell masters for the secondary engines.
I built it myself to save some money but wasnt sure about the result... The first attempt was a disaster, it was way out of shape (couldnt get a perfect round shape lol).

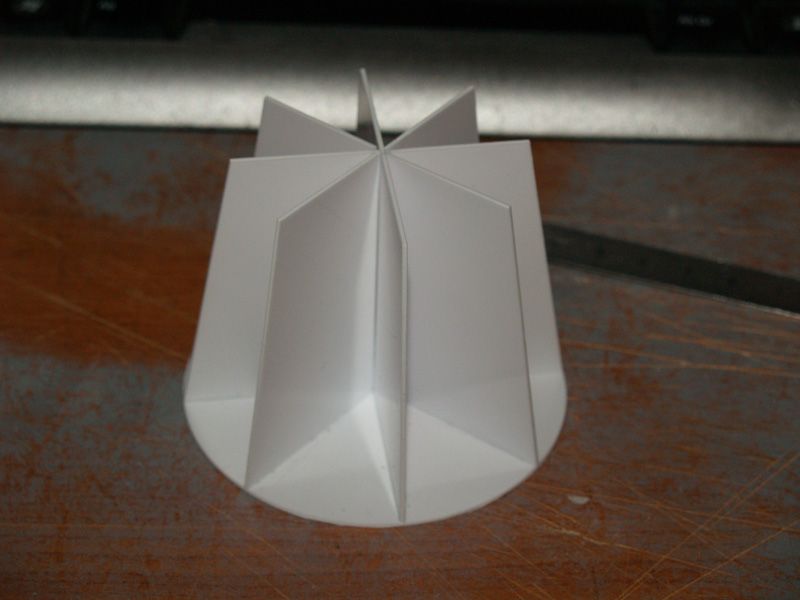

So first I built this :
Then wrapped it with 4 layers of 0.5mm styrene. The 2 inner layers are shorter to create a lip.
Eventually I ended up with that :
I was very happy ! Almost perfectly round (Im sure it's rounder than the original), very strong and light.
Then I cut those 9 blocks. None of them are perfectly identical :

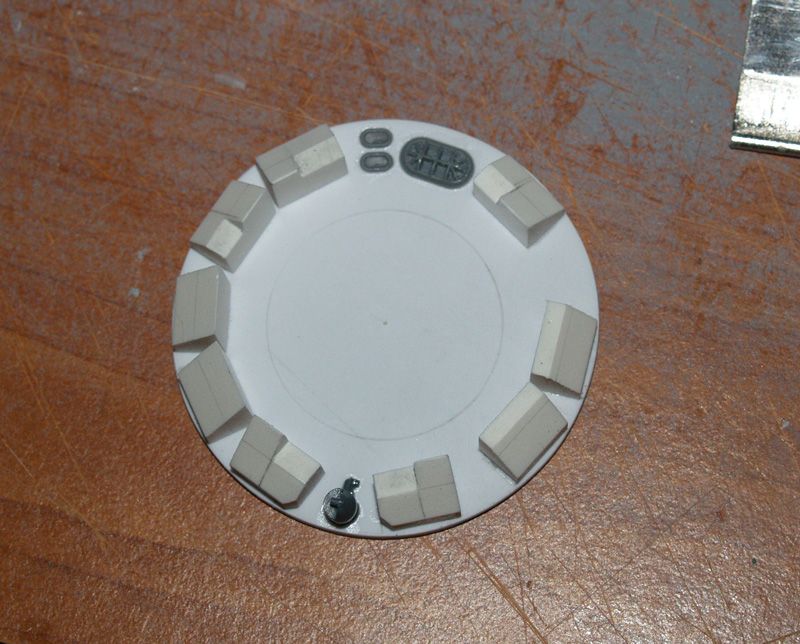

On the round plate, with some greeblies :

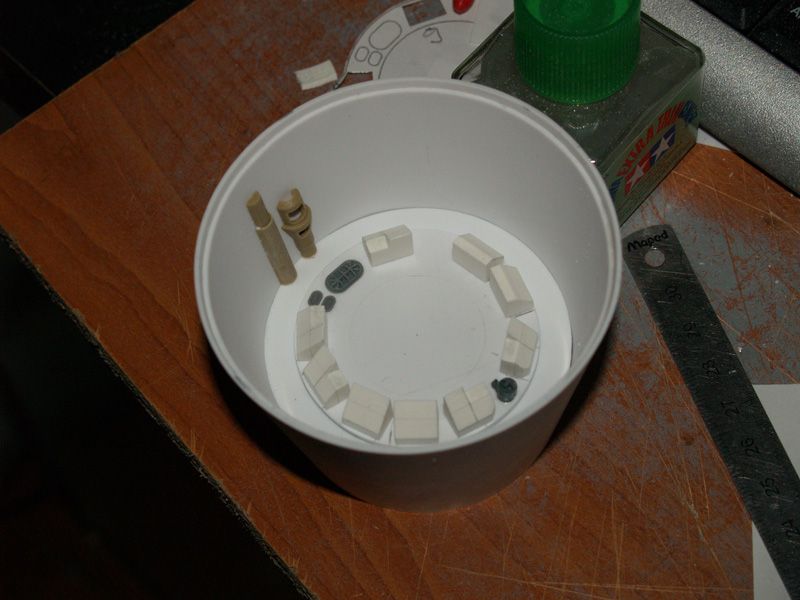

Dry fit :
Now I had to built the inner tube. Of course I didnt had the right diameter (33mm and I wanted 35.6mm) so once again I layered some styrene around it !
Everything glued in place, ready for primer !
Light coat of primer (I had some air bubbles created at the edges of the lips, going to sand them).
Almost ready to pour rubber on it !
I'm very proud of it, when I started this part I have very little hope to be successful but I think it is !
I built the conical engine bell masters for the secondary engines.
I built it myself to save some money but wasnt sure about the result... The first attempt was a disaster, it was way out of shape (couldnt get a perfect round shape lol).
So first I built this :
Then wrapped it with 4 layers of 0.5mm styrene. The 2 inner layers are shorter to create a lip.
Eventually I ended up with that :
I was very happy ! Almost perfectly round (Im sure it's rounder than the original
), very strong and light.Then I cut those 9 blocks. None of them are perfectly identical :
On the round plate, with some greeblies :
Dry fit :
Now I had to built the inner tube. Of course I didnt had the right diameter (33mm and I wanted 35.6mm) so once again I layered some styrene around it !
Everything glued in place, ready for primer !
Light coat of primer (I had some air bubbles created at the edges of the lips, going to sand them).
Almost ready to pour rubber on it !
I'm very proud of it, when I started this part I have very little hope to be successful but I think it is !
MonsieurTox
Master Member
Thanks guys !
Haha Joe, I would have love to be in the team if only I was born...
I've molded and pulled some engine bells and installed them on the boxes I previously built :
As you can notice they fit waaaaay better than the ILM ones, there's no the huge 2 mm gap all around the bell on the top box ! Well to tell the truth I wanted to recreate this gap, however my cone is not narrow enough, it's a tad too wide where it meets the top box so it fill the entire cutout. Oh well it's noticeable where you're in front of them ! :facepalm
For the ones who followed this thread you may remember I built the master for the laser turrets. However I had one more part to build, the support of the guns.
I also molded the guns because I need a ton of them (16 for the turrets and plenty of them for all over the trenches). I have enough real kitparts for the turrets but I dont want to run out of them so I did a mold, I'm not sure I'm going to buy more of those PoW kits since I only need them to detail the trenches and the leading edges of the hull so I will probably cast all the parts I need.

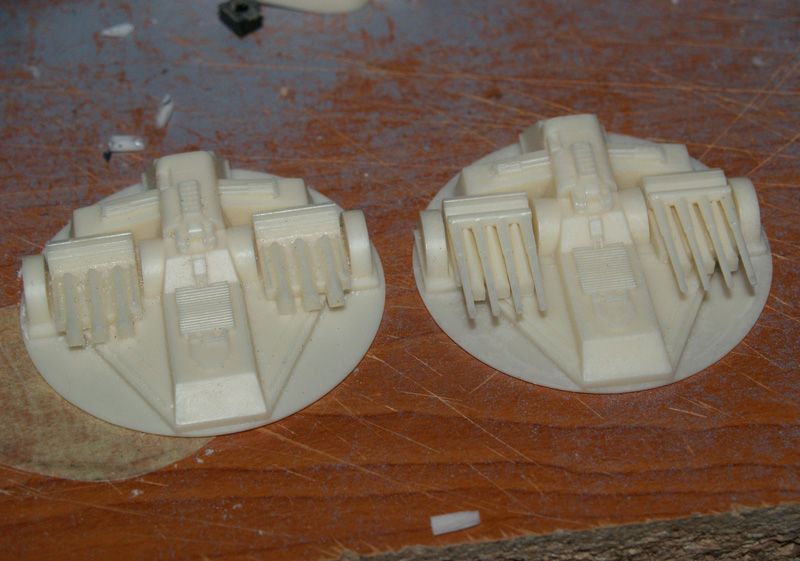

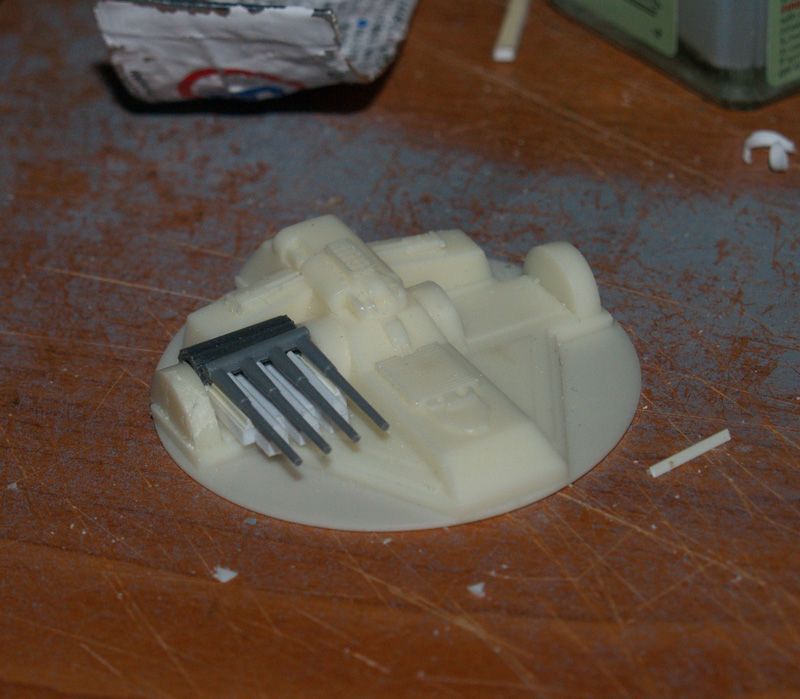

Well now the laser turret platforms... well at least the hero one ! Took me 3 days to build it and it's not finished yet :
The small black platform took me 3 hours to cut, fit etc... I thought that would be very quick to do but no.
I think most (if not all) of the lines of the platform were penciled, however I prefered to scribe the main lines. It will help to pencil the other lines.
I've got to stop looking at your thread Julien. I'm going through too many napkins to wipe up the drool,
Joe
Haha Joe, I would have love to be in the team if only I was born...
I've molded and pulled some engine bells and installed them on the boxes I previously built :
As you can notice they fit waaaaay better than the ILM ones, there's no the huge 2 mm gap all around the bell on the top box !
Well to tell the truth I wanted to recreate this gap, however my cone is not narrow enough, it's a tad too wide where it meets the top box so it fill the entire cutout. Oh well it's noticeable where you're in front of them ! :facepalmFor the ones who followed this thread you may remember I built the master for the laser turrets. However I had one more part to build, the support of the guns.
I also molded the guns because I need a ton of them (16 for the turrets and plenty of them for all over the trenches). I have enough real kitparts for the turrets but I dont want to run out of them so I did a mold, I'm not sure I'm going to buy more of those PoW kits since I only need them to detail the trenches and the leading edges of the hull so I will probably cast all the parts I need.
Well now the laser turret platforms... well at least the hero one !
Took me 3 days to build it and it's not finished yet :
The small black platform took me 3 hours to cut, fit etc... I thought that would be very quick to do but no.
I think most (if not all) of the lines of the platform were penciled, however I prefered to scribe the main lines. It will help to pencil the other lines.
Thrilled to see you back on this!
MonsieurTox
Master Member
Thank you !
I want to do as much as possible on her for 2013 even if I now I wont be able to finish her ! Still a long way to go !
I want to do as much as possible on her for 2013 even if I now I wont be able to finish her !
Still a long way to go !
