TRON: Legacy Lightcycle Baton Build Progress Thread (ArtFunk Kit)
- Thread starter Bandit-Jedi
- Start date
Bandit-Jedi
Sr Member
ripleys clone, thanks for the pics and you are right, your end caps came out great using the twisted cotton technique. Very nice color choices too! I see you chose not to cut slot for the on/off switch too. Its just too nice of a design to mess up with having a hole in it anywhere for the switch so yeah I'm keeping mine tucked inside under the magnet closure like you.
I just love seeing these Batons!
Im almost finished painting my Light-up Kit Baton and thought I'd post this pic just to show what it would look like with the Control Box being Flat Black. ( Painted it a coat of Flat Black to help with the light bleed)
I just love seeing these Batons!
Im almost finished painting my Light-up Kit Baton and thought I'd post this pic just to show what it would look like with the Control Box being Flat Black. ( Painted it a coat of Flat Black to help with the light bleed)
Last edited:
Bandit-Jedi
Sr Member
Did a bit of a photo shoot with my Batons and other T:L prop replicas
power on
power on
Last edited:
ArtFunk
Well-Known Member
Bandit-Jedi
Sr Member
WOW WOW, very great work Bandit, i'm happy to see this.
Thanks so much! I'm just so overwhelmingly happy to actually have some Baton's in my collection and that is thanks to you, sir! Grazie!!
Looking good Bandit :thumbsup I still haven't started on my baton. Maybe this weekend
Last edited:
Bandit-Jedi
Sr Member
renderinfo
Active Member
Mine is finally being started. I chose what I think are slightly different colors from the batons here and I'll post picks once it gets finished. I didn't choose any colors that were metallic or "with flakes". I chose a silver grey for the end caps and center, and a satin black for the main wand, and a flat black for the wand rectangle inserts. I figure I can always opt for a clear coat gloss added on later if I need it, but from the D23 pictures (and the spinmaster prop), the baton didn't seem that shiny or reflective to me. We'll see. I love the pics on this thread, so please keep them coming!
Bandit-Jedi
Sr Member
So looking forward to the pics, renderinfo! Did you request the person putting it together for you to take progress pics so you could have those for the sake of having them? I love seeing the different color choices. I was even thinking about redoing one of mine.
- - - Updated - - -
Thank you, sir!
I would imagine you would have little spare time with all the other awesome stuff you work with.
- - - Updated - - -
Thank you, sir!
I would imagine you would have little spare time with all the other awesome stuff you work with.
renderinfo
Active Member
Nah. But... if it comes out OK, she would be happy to put together others as well. For a price, LOL. I've been dying for this for a long time, and I've added a bit more to my display case, so I plan on posting a few new pics once I get the baton back. Amazingly enough, I picked up a Sark disc (didn't have one before) autographed by "Yori" for only $35. Sure wish we heard new Tron news, but I'm convinced that the movies and/or series will eventually continue. I'm just hoping we don't have to wait another 27 years
When you "redo" yours, please post up new pics, your work is outstanding. Now... we are missing a Clu baton and the baton case, LOL. R U listening Artfunk?
Vampiel
New Member
This is some excellent work! What's used for the glow effect on the discs?
http://imageshack.us/a/img268/8732/k6mh.jpg
http://imageshack.us/a/img268/8732/k6mh.jpg
Bandit-Jedi
Sr Member
Thanks!!
The glow "effect" is actually practical lighting via the Soulinertia Disc Mod Kit. Contact Soul for more info ( View Profile: Soulinertia - the RPF ) or check out his Disc Mod Retrofit Kit in the Junkyard.
renderinfo
Active Member
Progress Report.
I had to edit some of the contents, because my builder is getting frustrated and it's taking much longer than we both want. It is coming along however...
She's put about 4 1/2 hours into it so far and I have attached the photos she supplied...

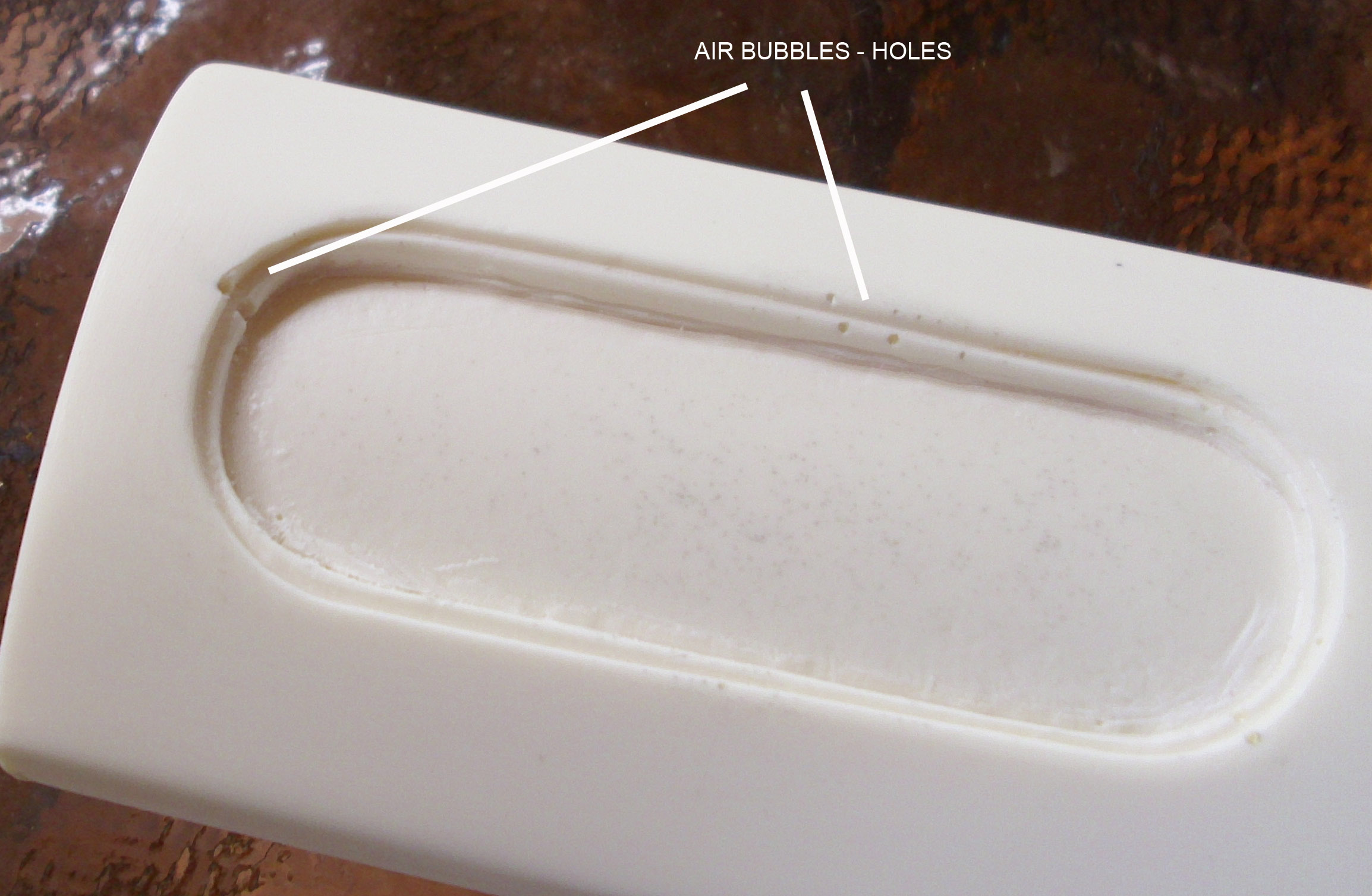

1. the light cover showing you the air holes.

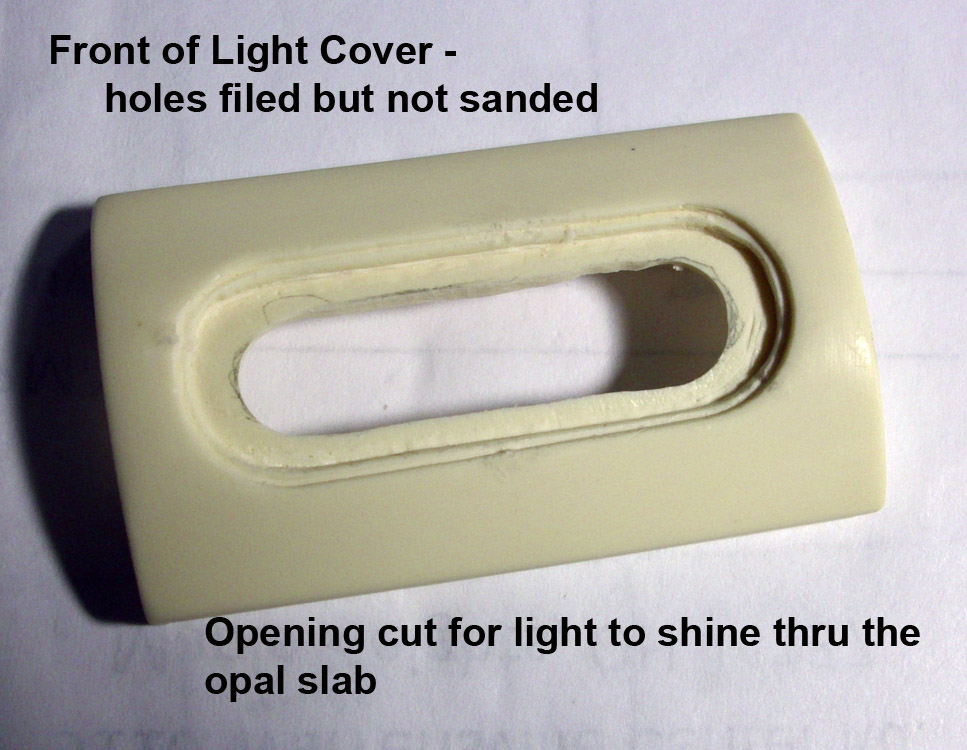

2. the light cover with the holes filled, but not sanded and a space for the light to shine through the opal piece.

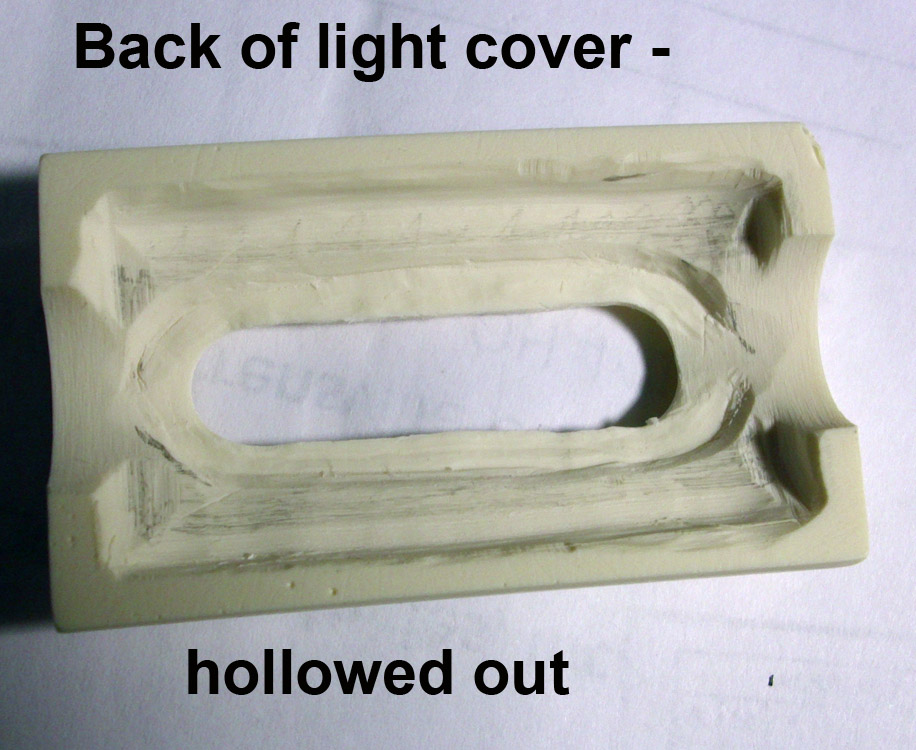

3. the back of the light cover hollowed out

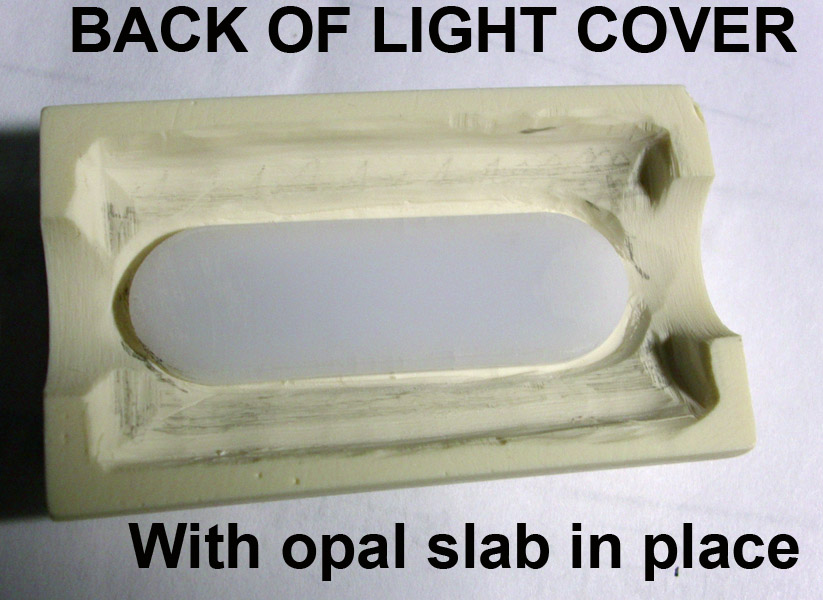

4. the back of the light cover with the opal piece in place
5. The end of the long piece sanded flat and marked where the battery compartment will be

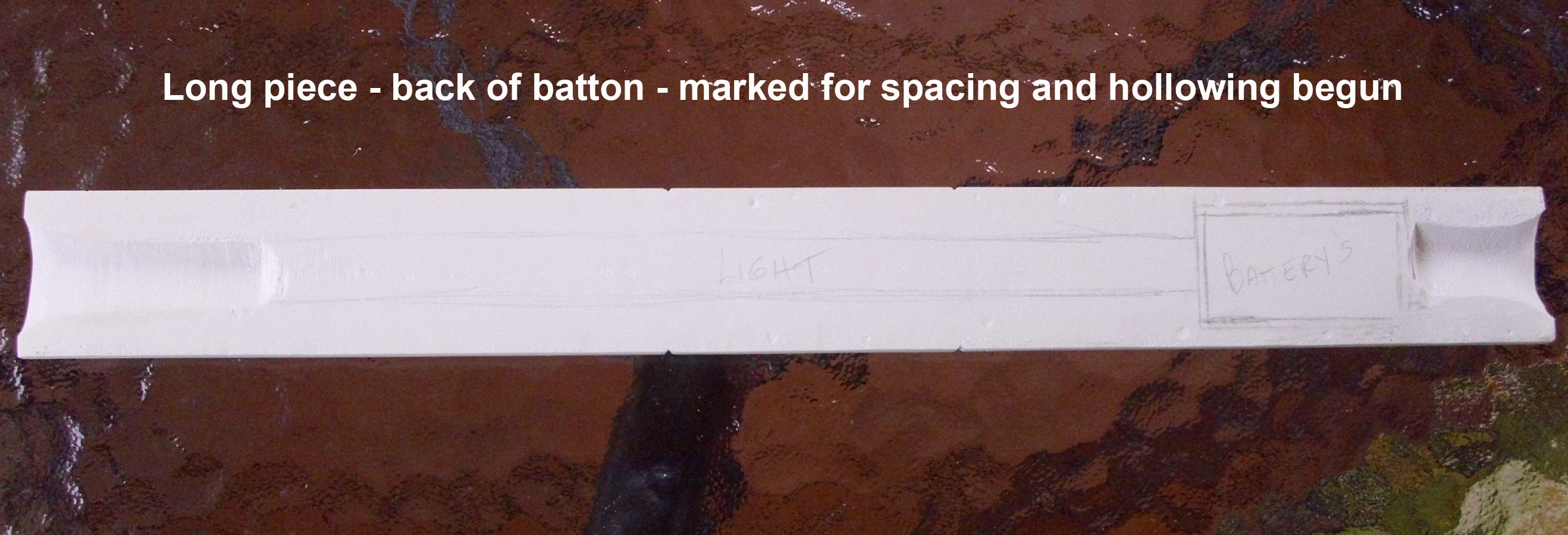

6. The whole long piece showing the markings of where the tunnel and the battery compartment wll be with some hollowing begun

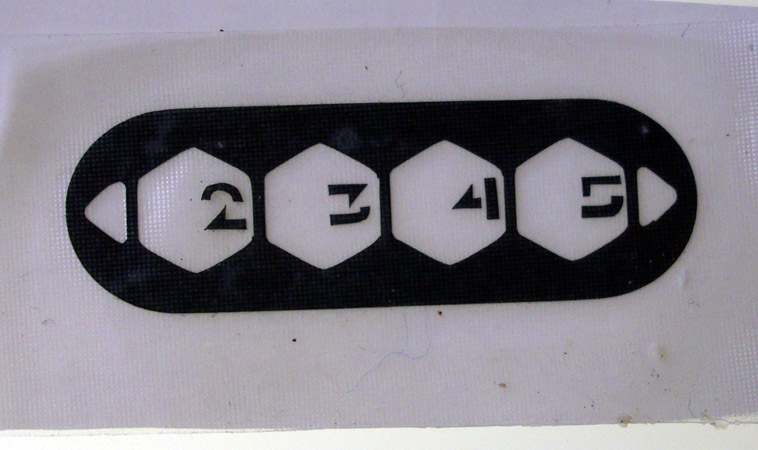

7. The decals in place on the reflective paper and attached to a clear piece of flexible acrylic to be glued onto the light cover after sanding and painting.

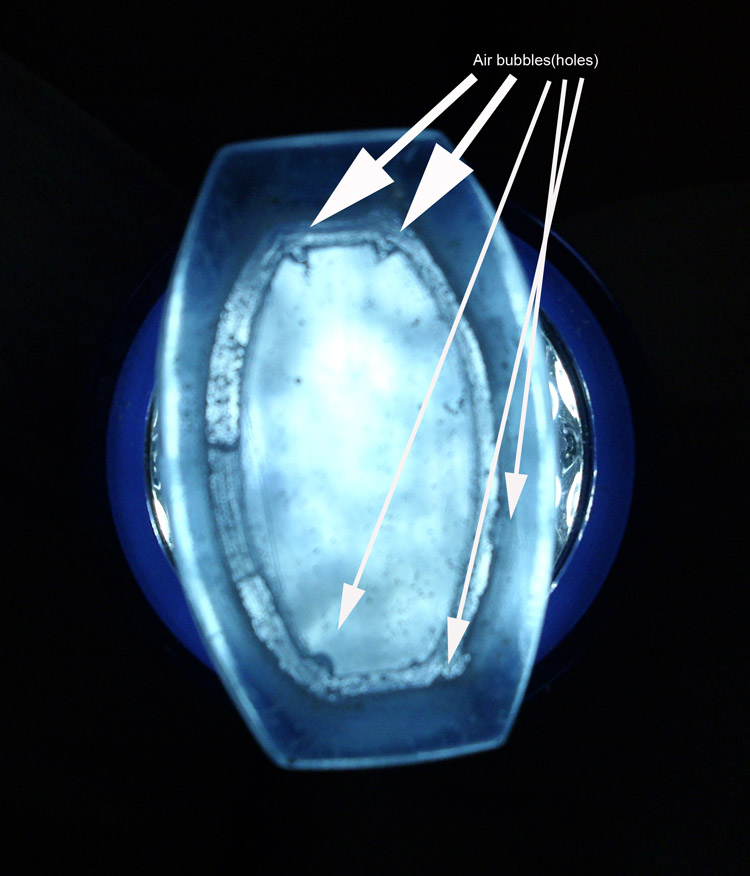

8. The end piece with light showing through it. The holes here are under and behind the edges inside. I have begun to carve out the trench that should be the light, but it isn't going to be a smooth line.
9. The other end piece - air holes, warped edges
I had to edit some of the contents, because my builder is getting frustrated and it's taking much longer than we both want. It is coming along however...
She's put about 4 1/2 hours into it so far and I have attached the photos she supplied...
1. the light cover showing you the air holes.
2. the light cover with the holes filled, but not sanded and a space for the light to shine through the opal piece.
3. the back of the light cover hollowed out
4. the back of the light cover with the opal piece in place
5. The end of the long piece sanded flat and marked where the battery compartment will be
6. The whole long piece showing the markings of where the tunnel and the battery compartment wll be with some hollowing begun
7. The decals in place on the reflective paper and attached to a clear piece of flexible acrylic to be glued onto the light cover after sanding and painting.
8. The end piece with light showing through it. The holes here are under and behind the edges inside. I have begun to carve out the trench that should be the light, but it isn't going to be a smooth line.
9. The other end piece - air holes, warped edges
Bandit-Jedi
Sr Member
had to dig this one back up to see if there had been activity. I totally missed your post renderinfo, looks like some serious reworking going on with yours. It's gonna turn out superb!!!
renderinfo
Active Member
Thanks Bandit Jedi. Here's another update...
My builder's comments:
Pic 1 -

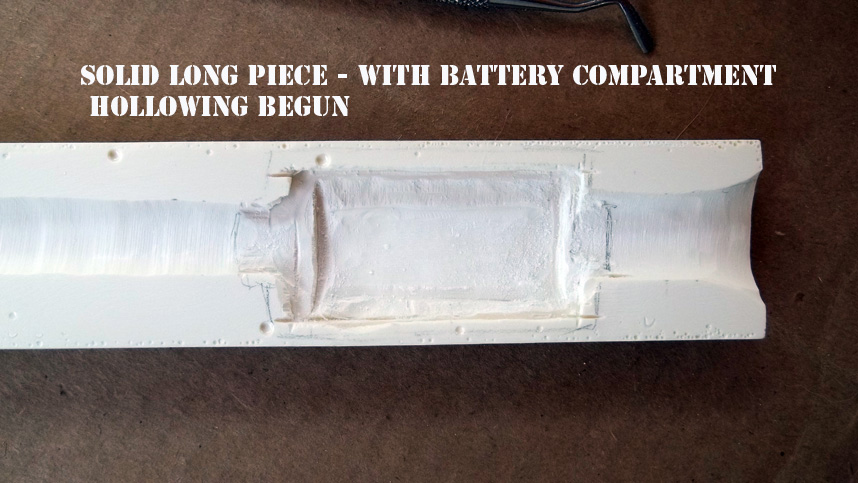

shows the inside rough beginning of the hollowing of the long piece for the battery case: the squared section, along with the long tubes for the wire for the LED lights to get to the middle and the ends. I hollowed out the inside portion first with the round sanding bits so I could use the dremel saw to cut the long straight sides of the battery cover.
Pic 2 -

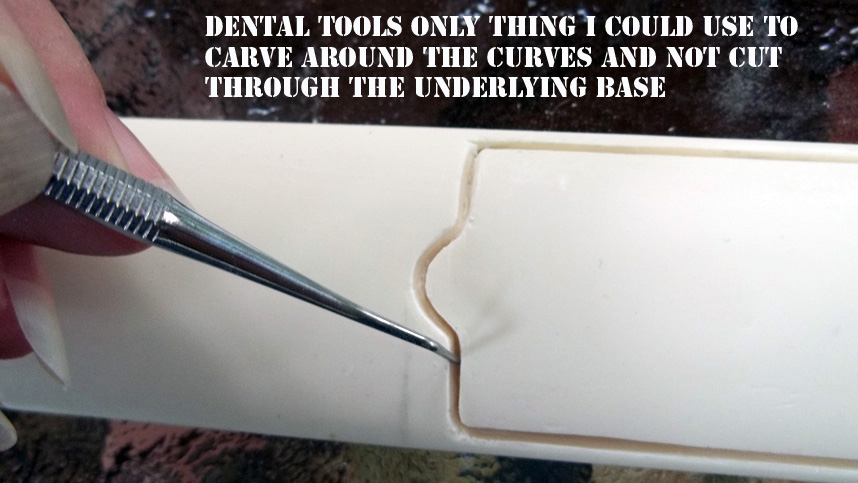

shows the outside beginning of the outside cutting out of the battery cover short sides using dental tools. I couldn’t think of anything else to carve through the resin without disturbing the flat shelf I left on the inside to hold the cover once it is completely cut out. It is a long and tedious process.

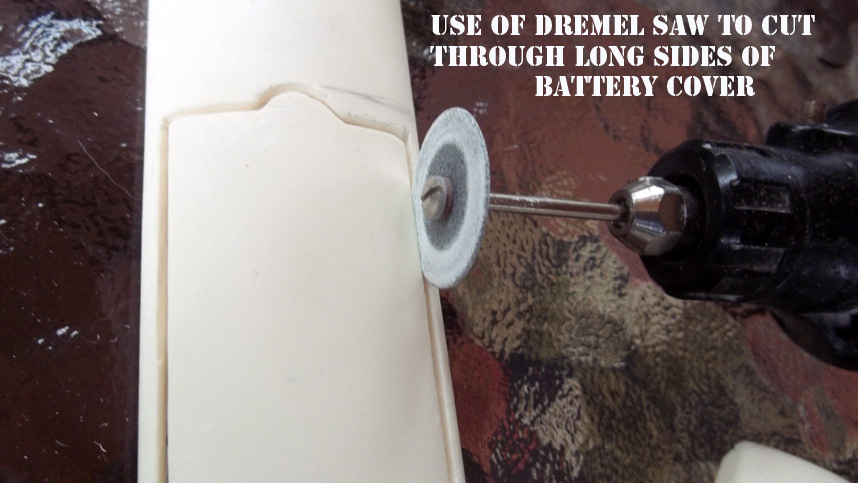

Pic 3 - shows the use of the dremel saw to cut through the long sides of the battery cover.
Pic 4 -

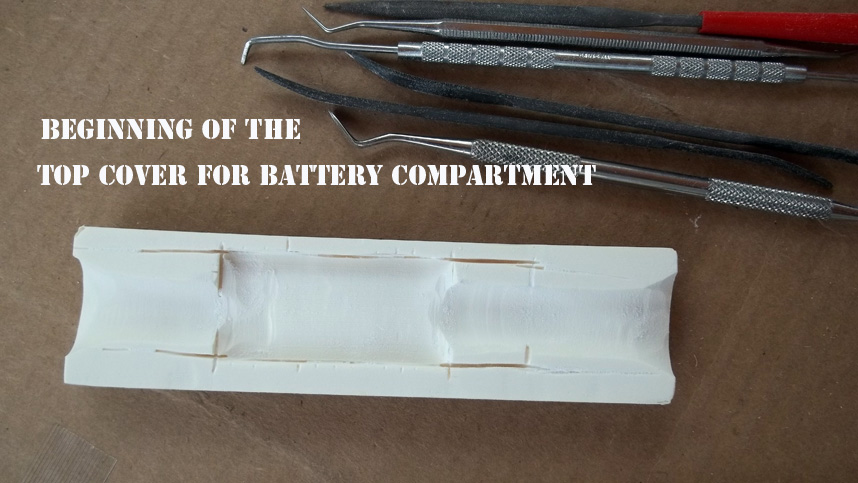

shows the top side of the battery compartment with a rough hollowing out begun.
Pic 5 -

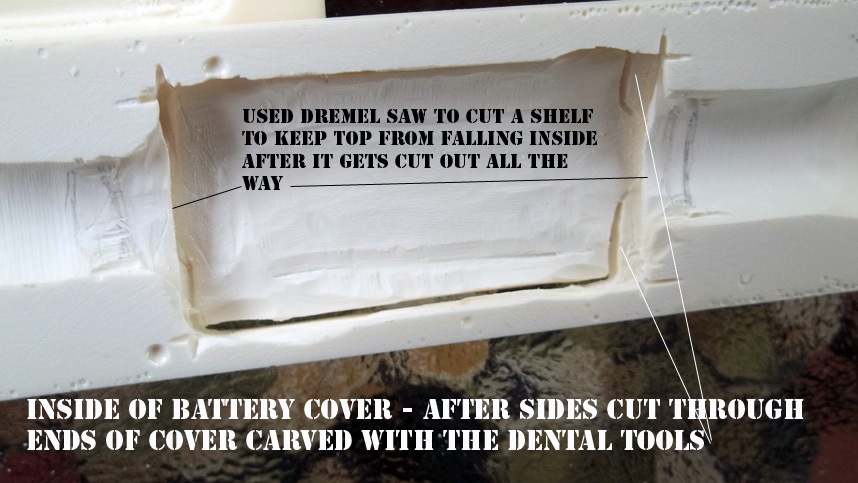

shows the details of the inside (long piece) battery compartment. Don’t know if the picture shows it well enough but I use the dremel saw from the inside to cut flat shelves under the curved tabs of the battery cover to use to hold magnets? To keep the battery cover in place once I get it all the way cut out.
My builder's comments:
Pic 1 -
shows the inside rough beginning of the hollowing of the long piece for the battery case: the squared section, along with the long tubes for the wire for the LED lights to get to the middle and the ends. I hollowed out the inside portion first with the round sanding bits so I could use the dremel saw to cut the long straight sides of the battery cover.
Pic 2 -
shows the outside beginning of the outside cutting out of the battery cover short sides using dental tools. I couldn’t think of anything else to carve through the resin without disturbing the flat shelf I left on the inside to hold the cover once it is completely cut out. It is a long and tedious process.
Pic 3 - shows the use of the dremel saw to cut through the long sides of the battery cover.
Pic 4 -
shows the top side of the battery compartment with a rough hollowing out begun.
Pic 5 -
shows the details of the inside (long piece) battery compartment. Don’t know if the picture shows it well enough but I use the dremel saw from the inside to cut flat shelves under the curved tabs of the battery cover to use to hold magnets? To keep the battery cover in place once I get it all the way cut out.
Bandit-Jedi
Sr Member
Whoa, a functional battery door. Why didn't I think if that! Haha. Yours is progressing to a awesome level. Can't wait to see it finished.
Last edited:
Atlante313
Active Member
Well very nice job men love it
