Spider-man (Raimi) 3D Print Files/Pattern - FREE

[batfan10]

Anyone know the size for the front and back spiders? looking to 3d print them



[jim897]

Anyone know the size for the front and back spiders? looking to 3d print them

Im in the same boat. After looking at pictures looked like it took 4.5 web sections/squares vertically, so i measured that on my suit (6ft tall) which was about 20cm cm vertically turns out the scaling of the files worked out about perfect for my height. Not official but i did mine at ~y = 7.7 inches and x = 5.5 inches and then 0.14 inches for z (3.5mm thick). If anyone else that has a better idea could weigh in that would be great. Hope that helps. As for back spiders went off images and tried measuring a similar length on my suit. Which was 11 inches (28cm) by 10.7 (27.2) inches at the same z height as front spider. Had some weird scaling where it confused mm instead of inches (but the correct numbers) so be wary of that if that comes up.



[Leekarlovic]

Hi,

I am wondering how I can figure out the correct sizing of the web files. When I open up the .stl file they open very small. I am hoping to save them in the correct size. My Height is 5'10. Thank you very much.



[Thetyzon]

Did someone know how to cast spiders on urethane? Some idea?



[Leekarlovic]

Did someone know how to cast spiders on urethane? Some idea?

Hi, the best way from what I have seen is and what I am going to try myself for an emblem is 3d print, smooth it all out and cast using Smooth On Mold Star 15. Once the cast is made I will cast in urethane using Smooth On Products. I am hoping to have this done soon. I would check out their YouTube channel.



[Thetyzon]

Anyone knows how to download or have the mask pattern ? I dont know how to use photoshop...



[scottanderson94]

Ok so... im new on here but iv been using this forum for a while now planning my raimi suit build and now i have begun i wanted to share my progress and some useful tips if i can.

To start with iv just ordered my suit from print costume and used kens pattern with a little updated colours. Super grateful btw kenlandrum for the files you provided.

I also ordered a 3d model for raimi face shell and lens frames from thingiverse and sent the files to a company to get 3d printed for me for only £30 instead of the £100 plus from elsewhere for a already printed shell.

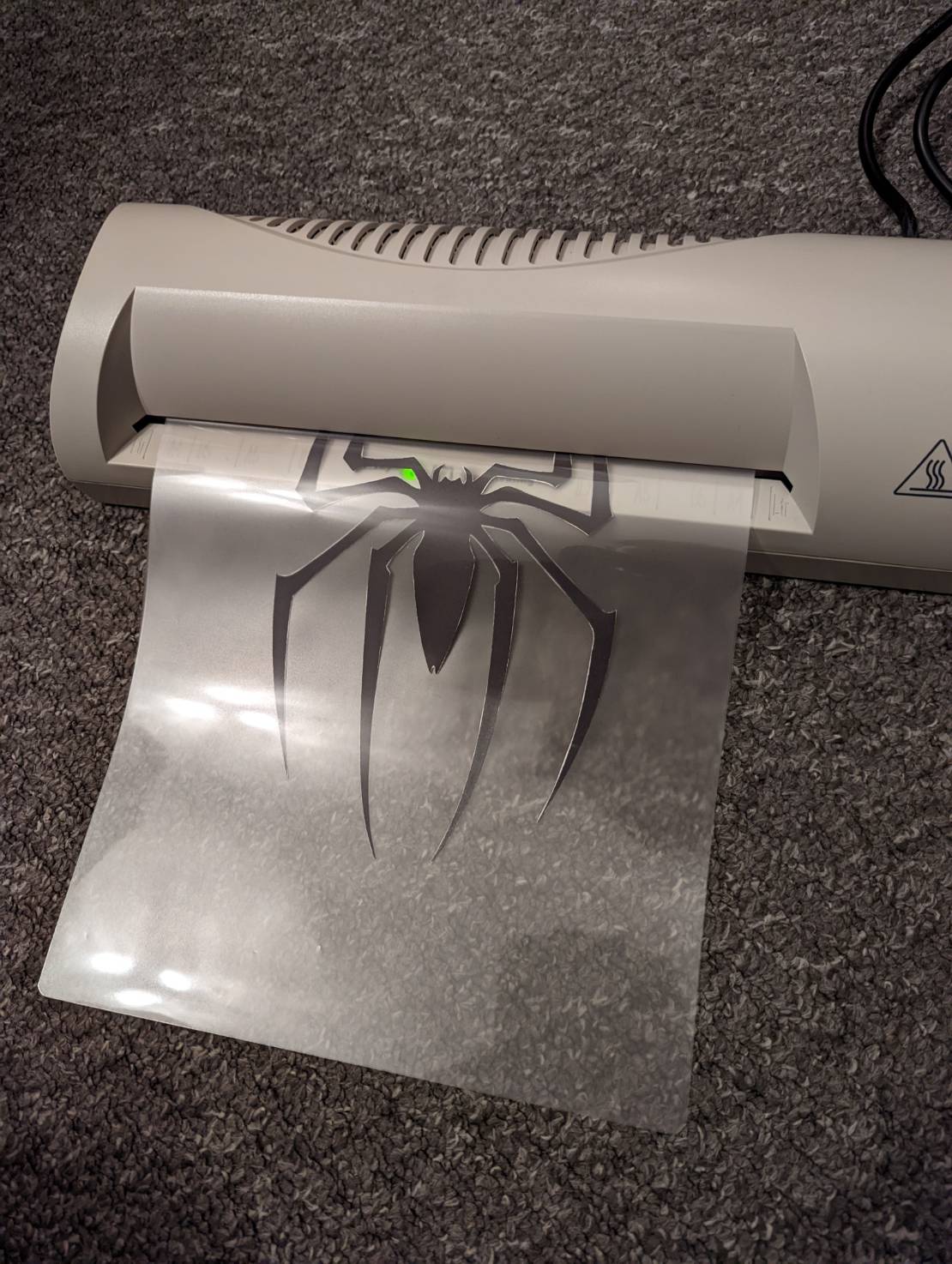

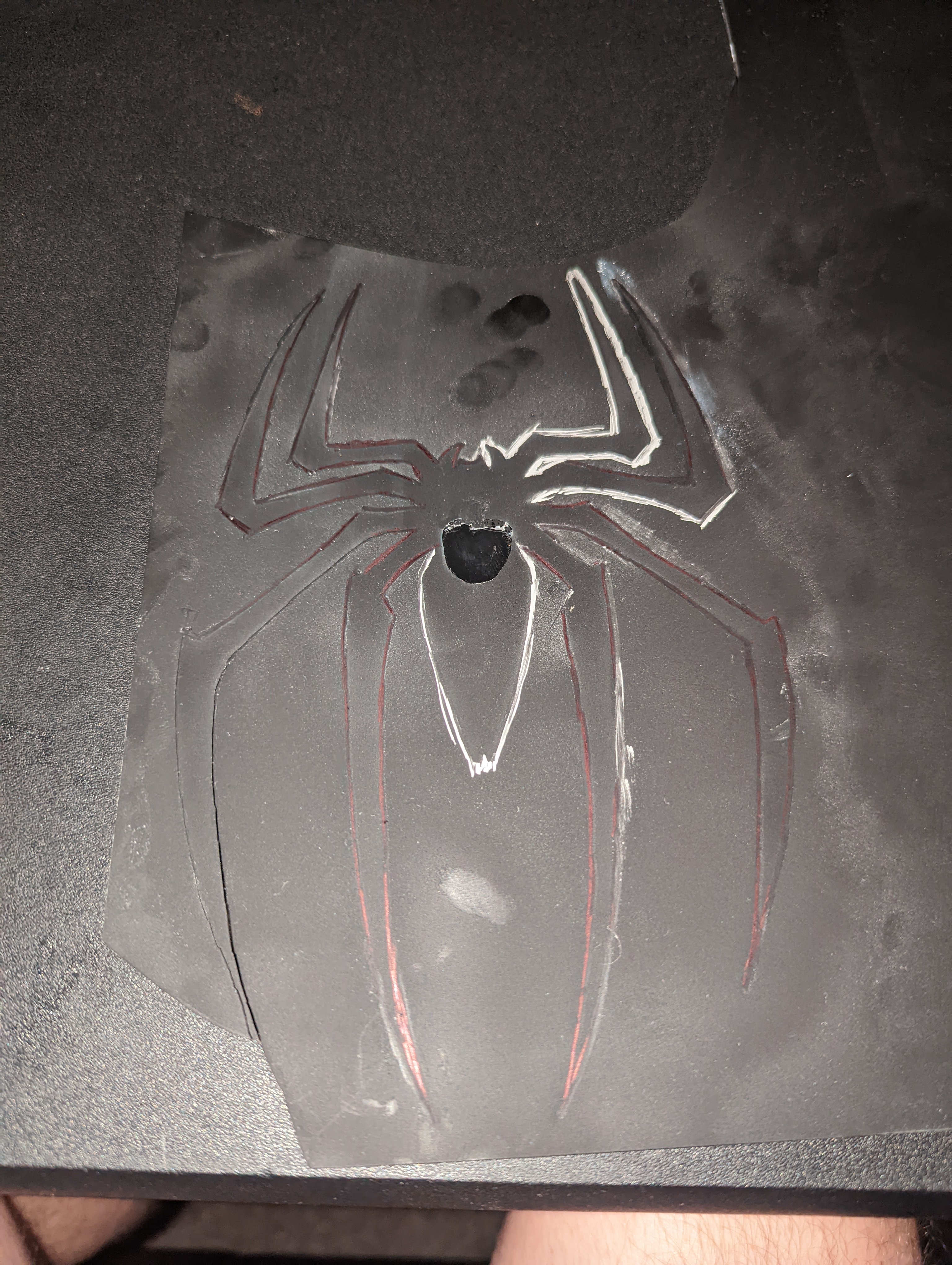

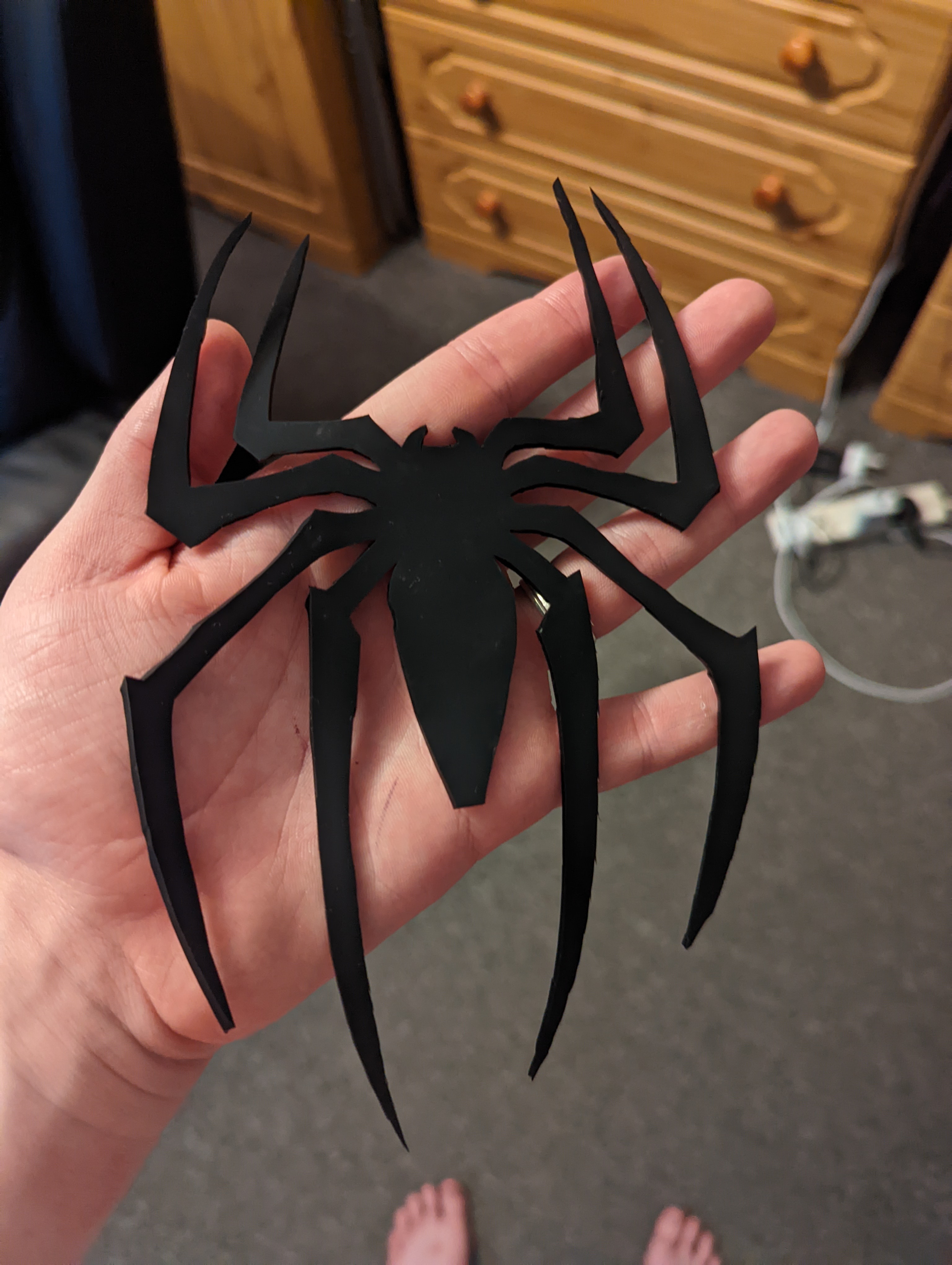

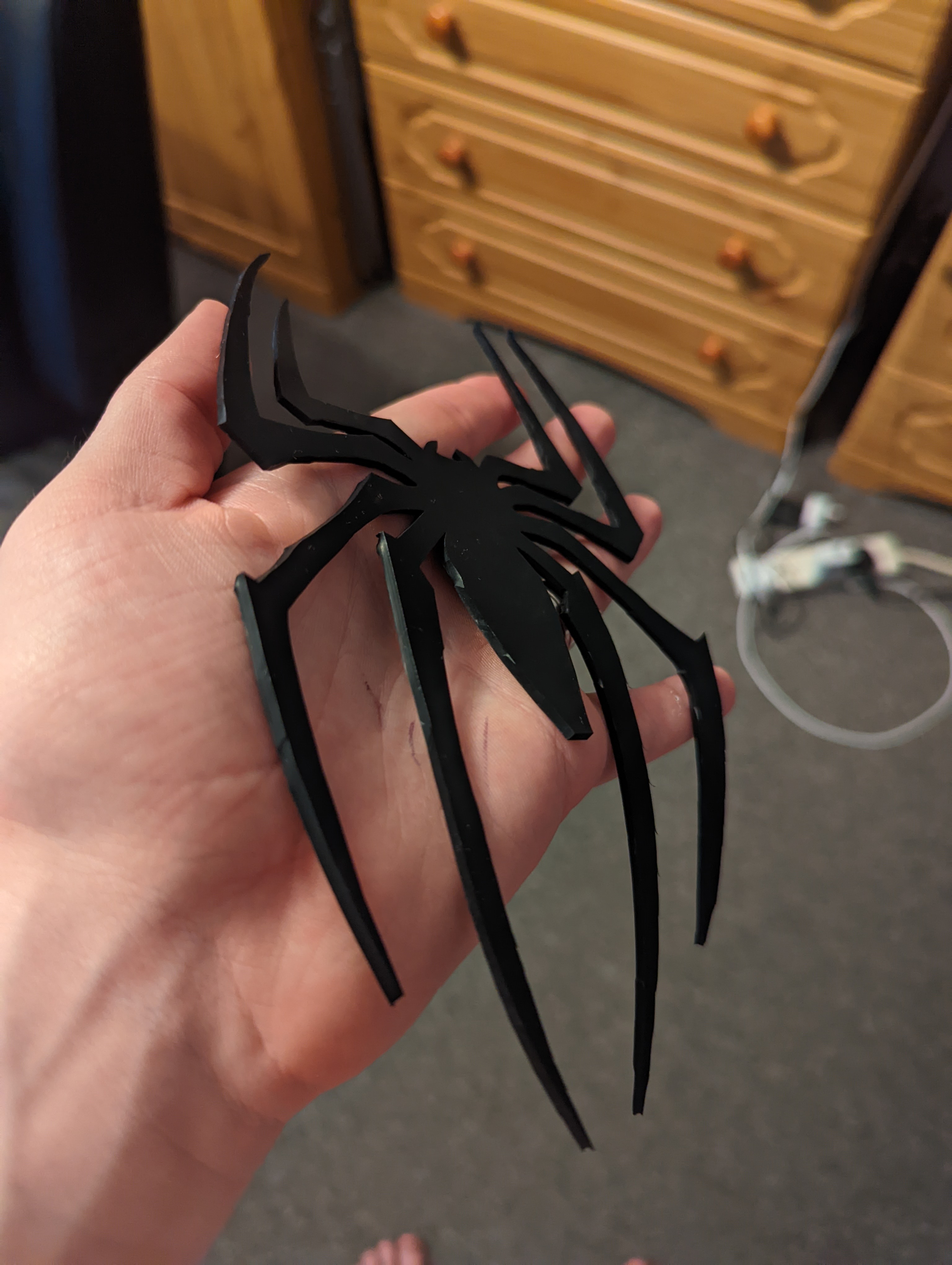

I have attatched photos of my way of doing the front spider emblem and i will repeat the process for the back spider. I used the pattern image i sent to print costume to get the scale for the spider and then used a 2mm thick black silicone rubber kitchen non slip mat and created a stencil the dimentions i wanted then used a ball point pen to carefully trace the stencil and then used scissors and a box cutter to cut out the shape. I have a glossy 2mm sheet of red rubber for the back spider i will do also. I plan on making the front spider more metallic looking too before the time comes to apply it to the suit.

I have already cut a pair of leather shoes to go inside the suit and removed the soles then plan on getting rubber replacement soles off amazon to glue to the bottom but obviosly this will need to wait for the suit to arrive.

i will post some updates in the future when the faceshell arrives from the 3d printing company and i make the lenses for the frames using wire mesh off amazon and some plastic from either a bottle or a clear plastic container as long as it is able to bend how i need without looking bad.

Thanks again for all your help.



[scottanderson94]

Quick update on how the suit is going now that most of the parts needed arrived.

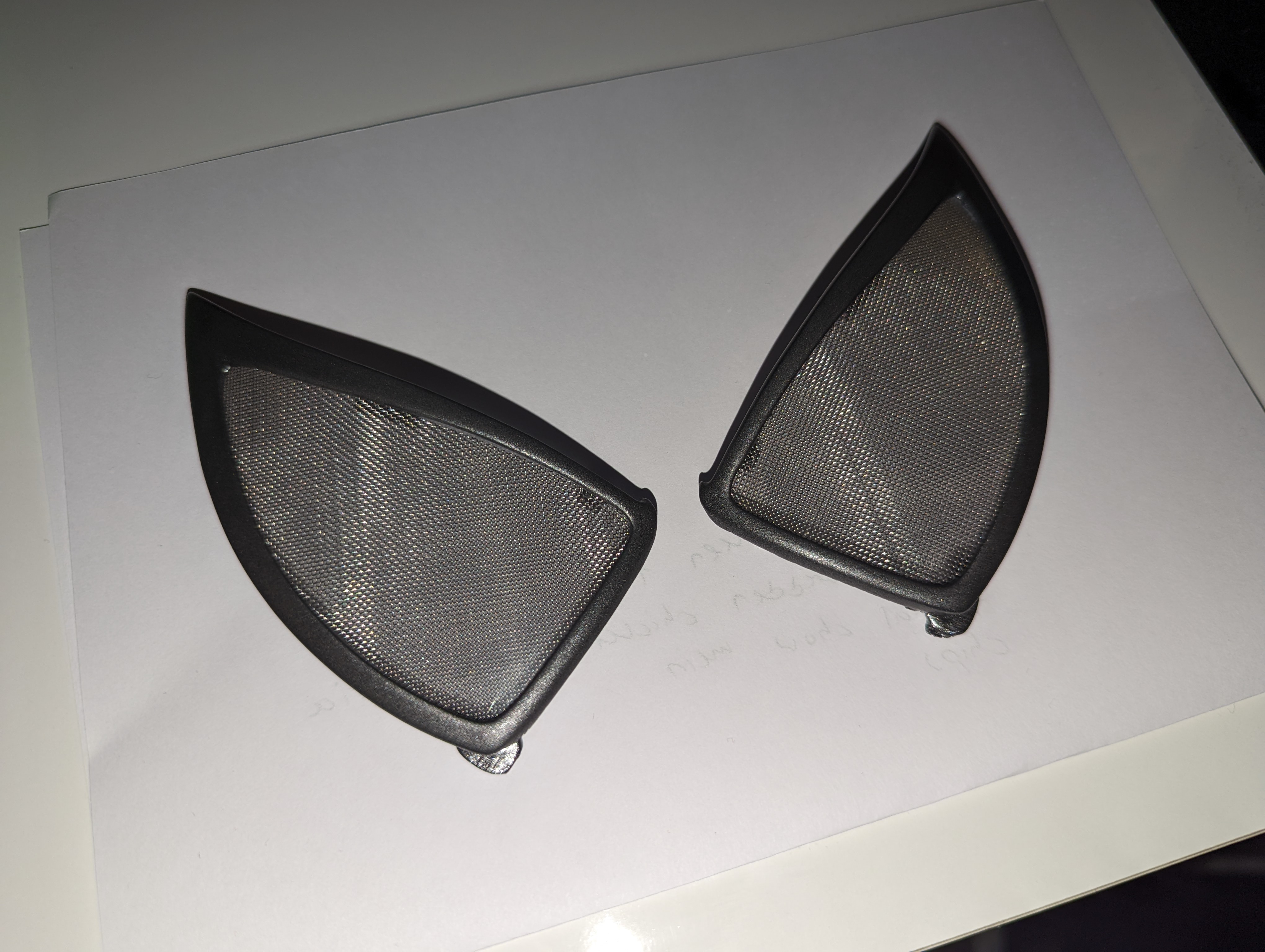

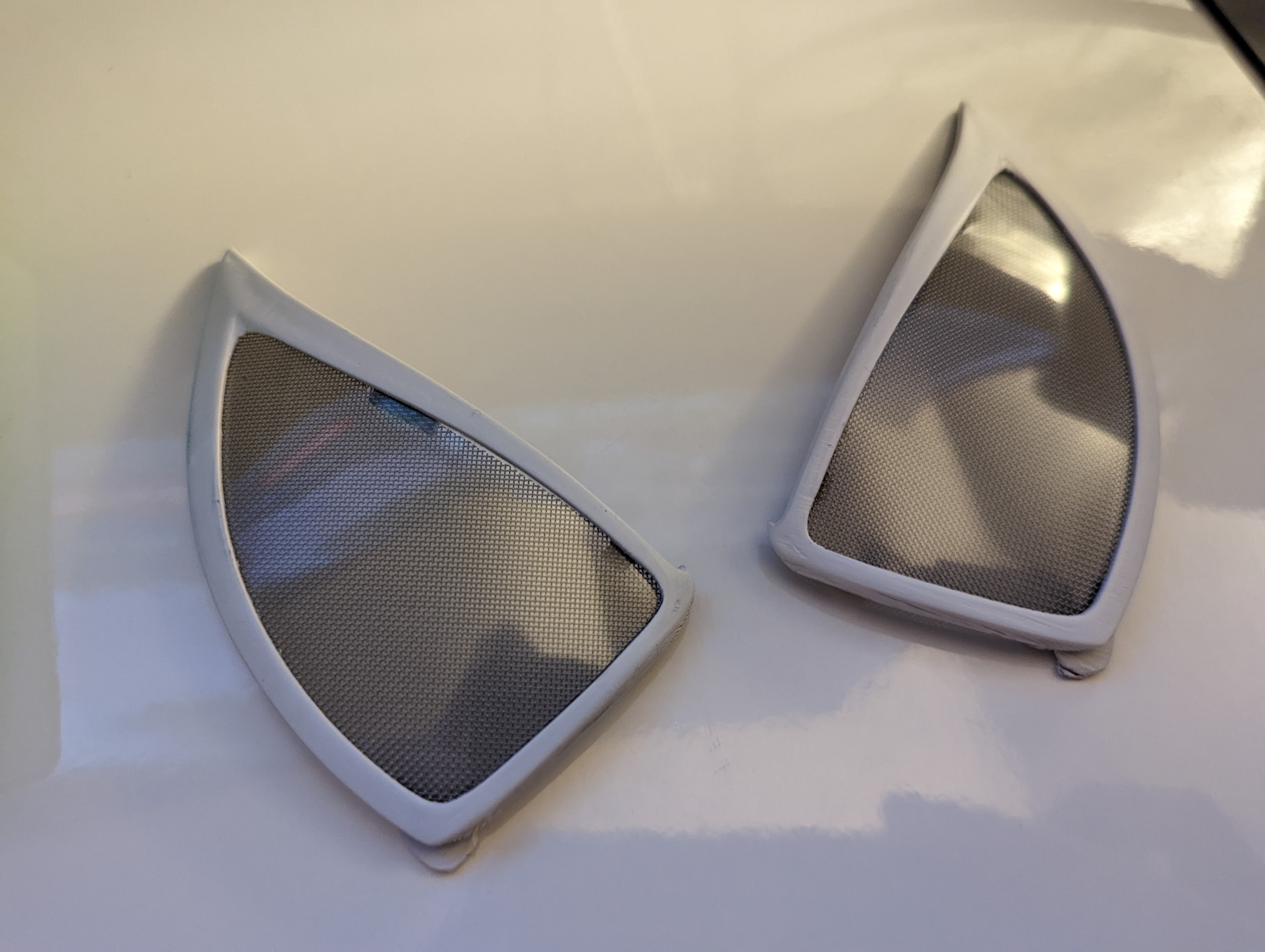

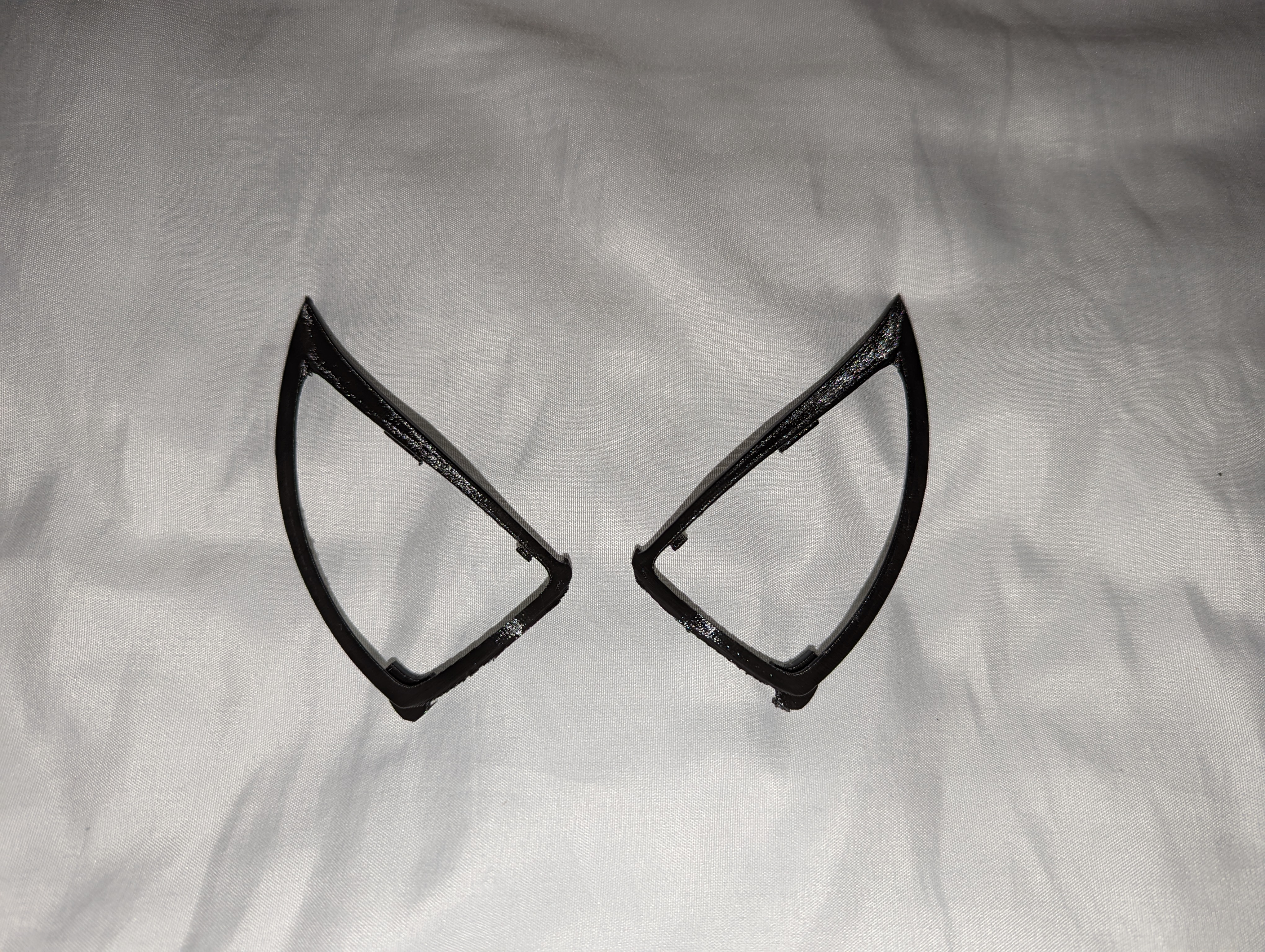

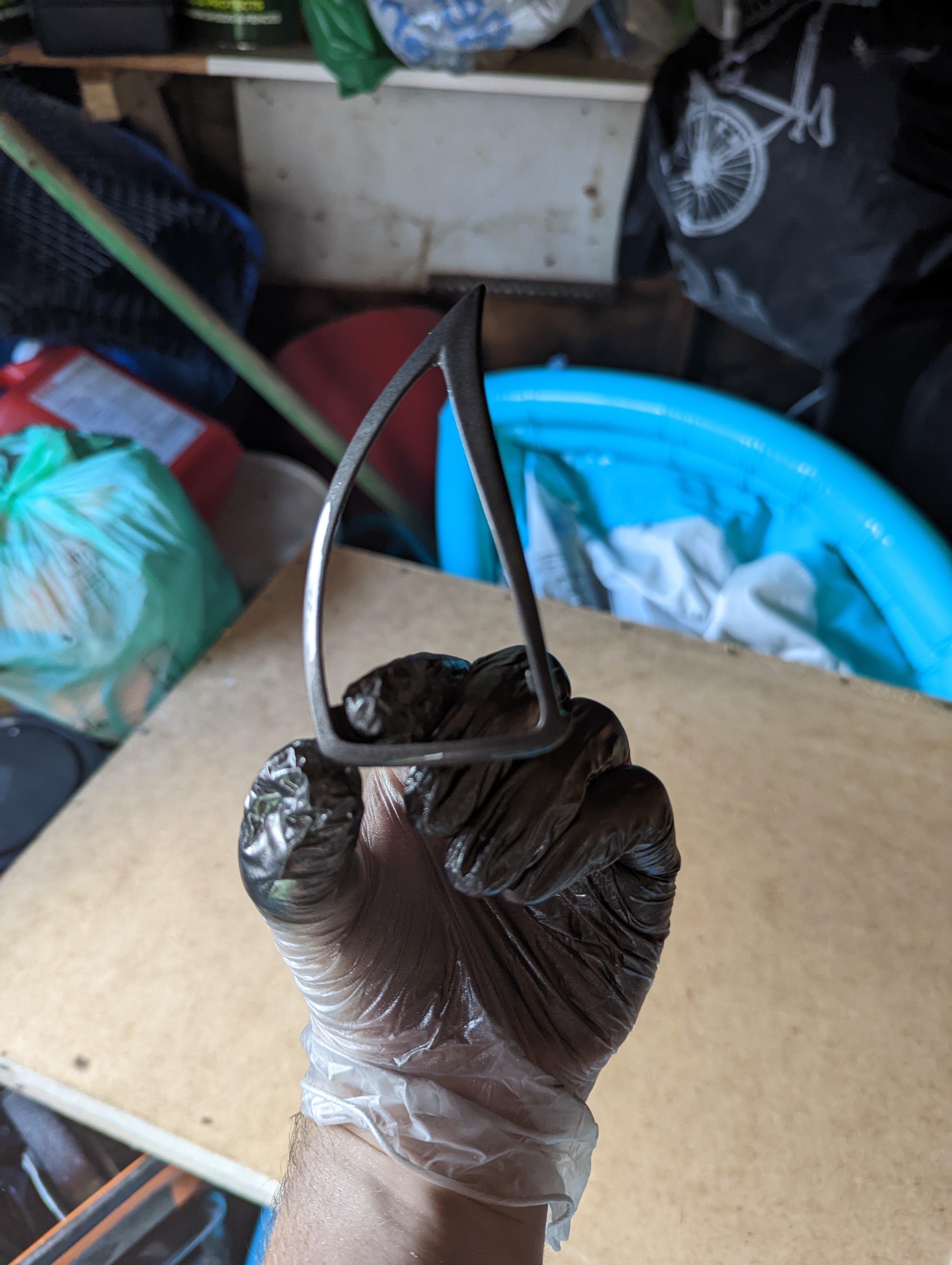

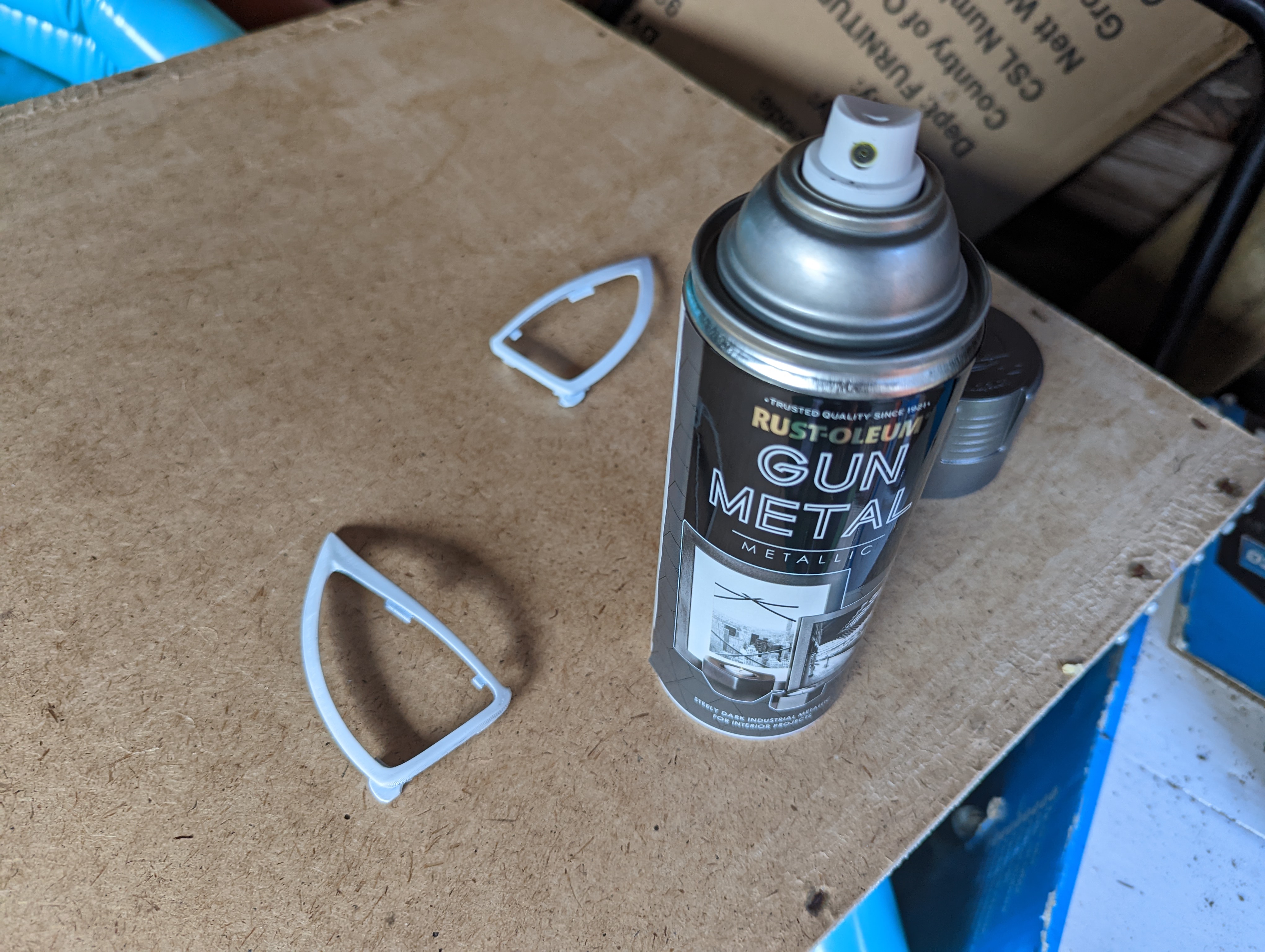

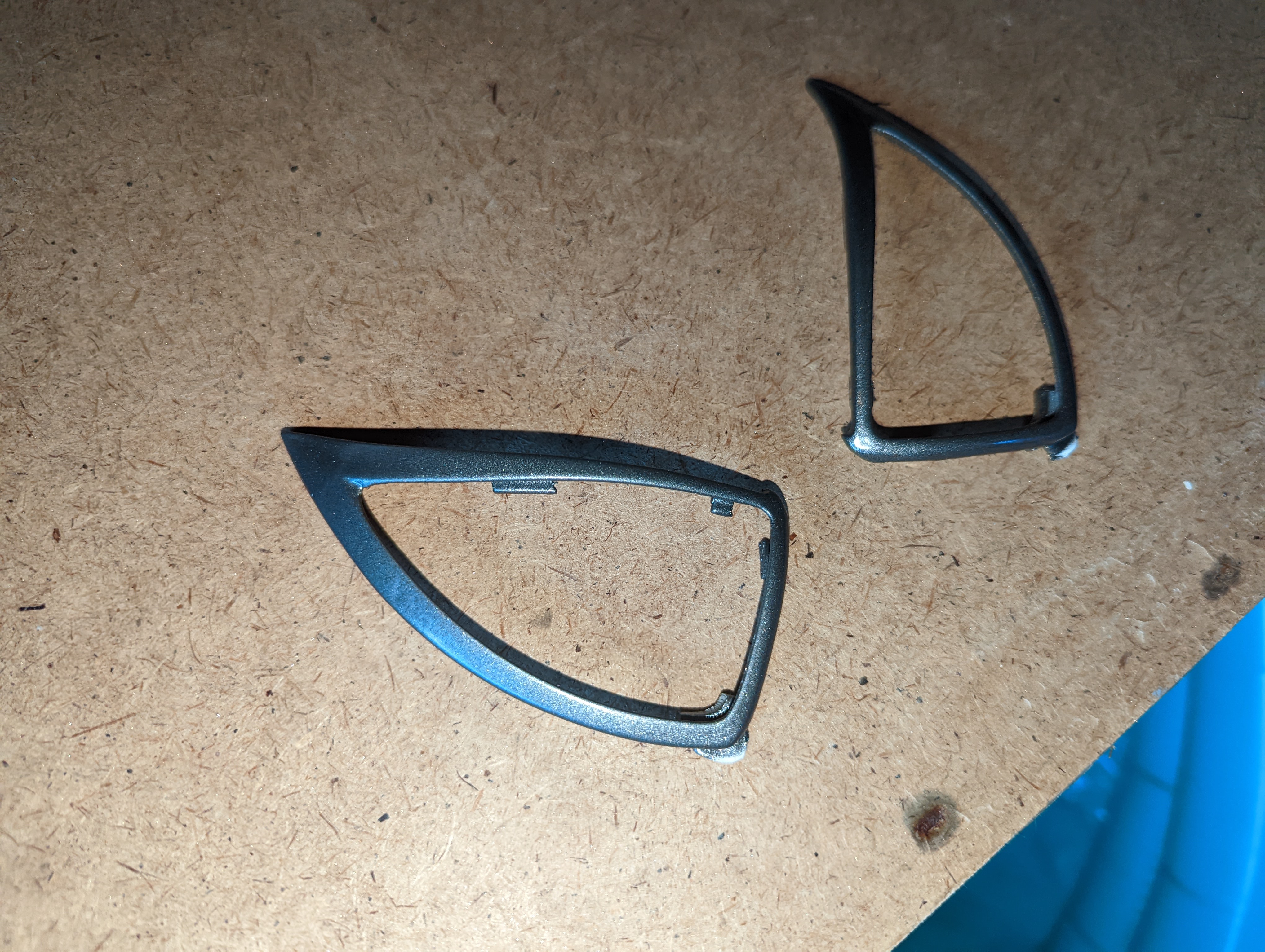

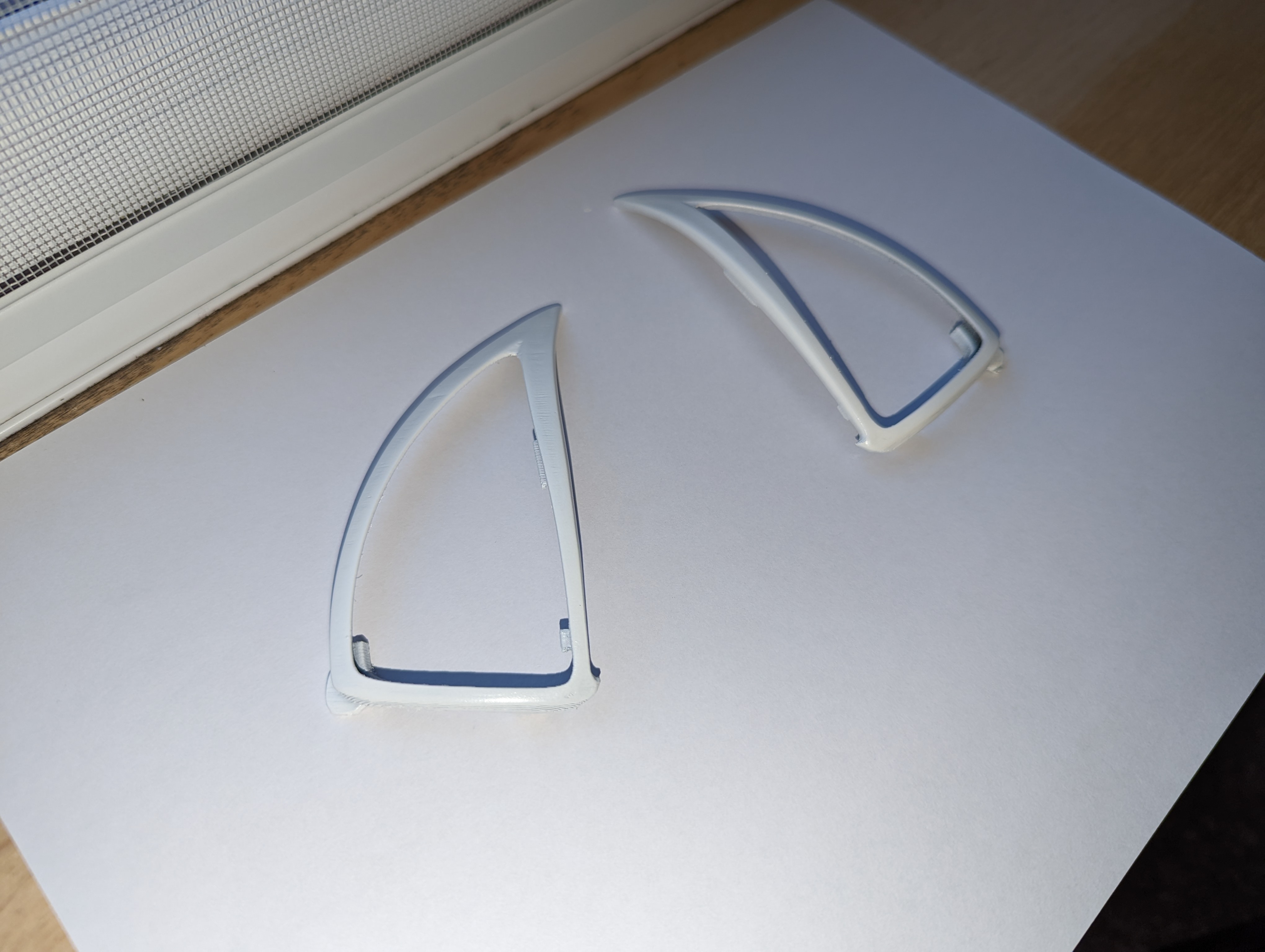

3d printed Frames and lenses with stainless steel 60 mesh and clear mylar sheets for the lens. Frames primed with white plastic primer and finished with gunmetal.

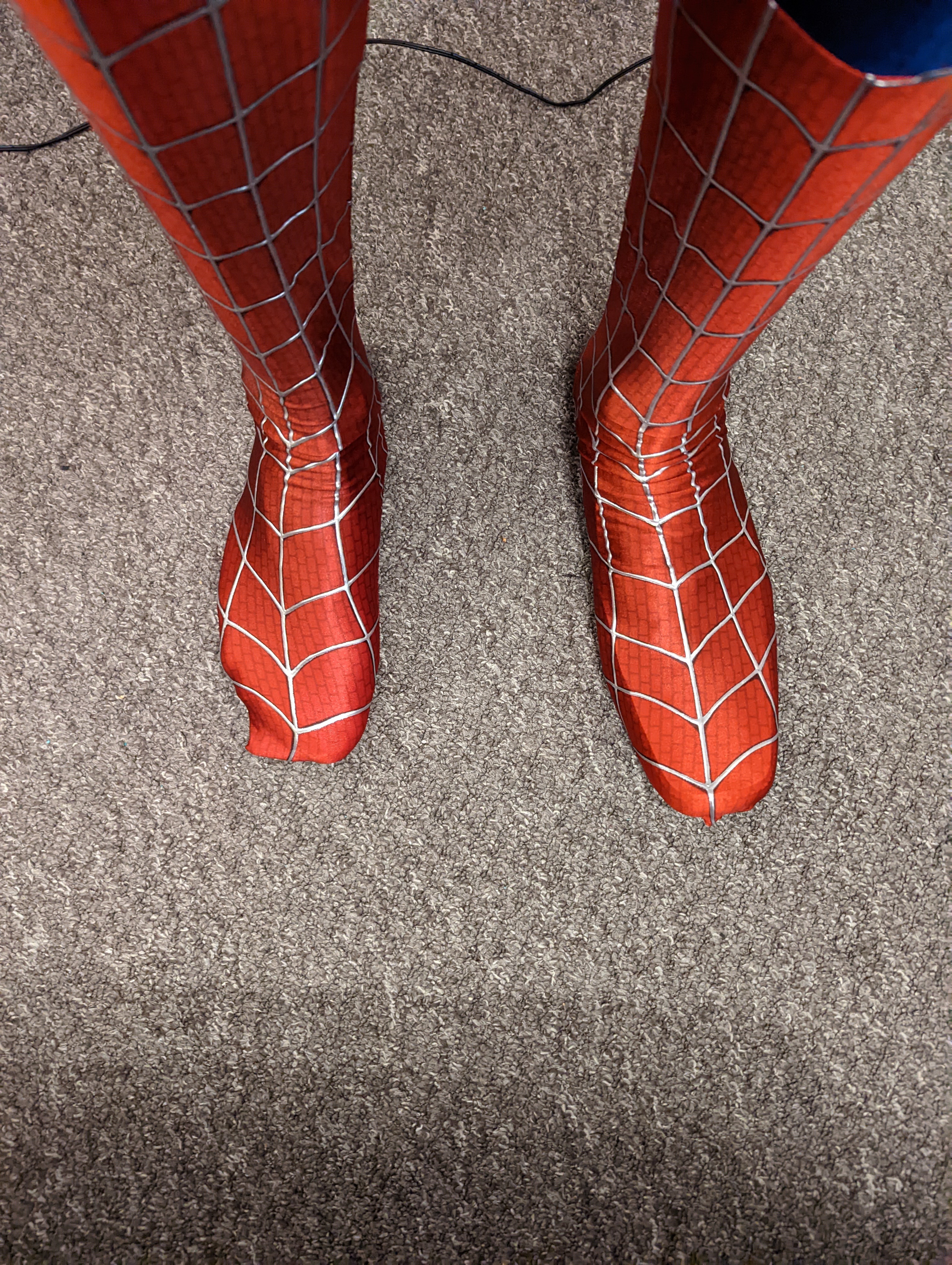

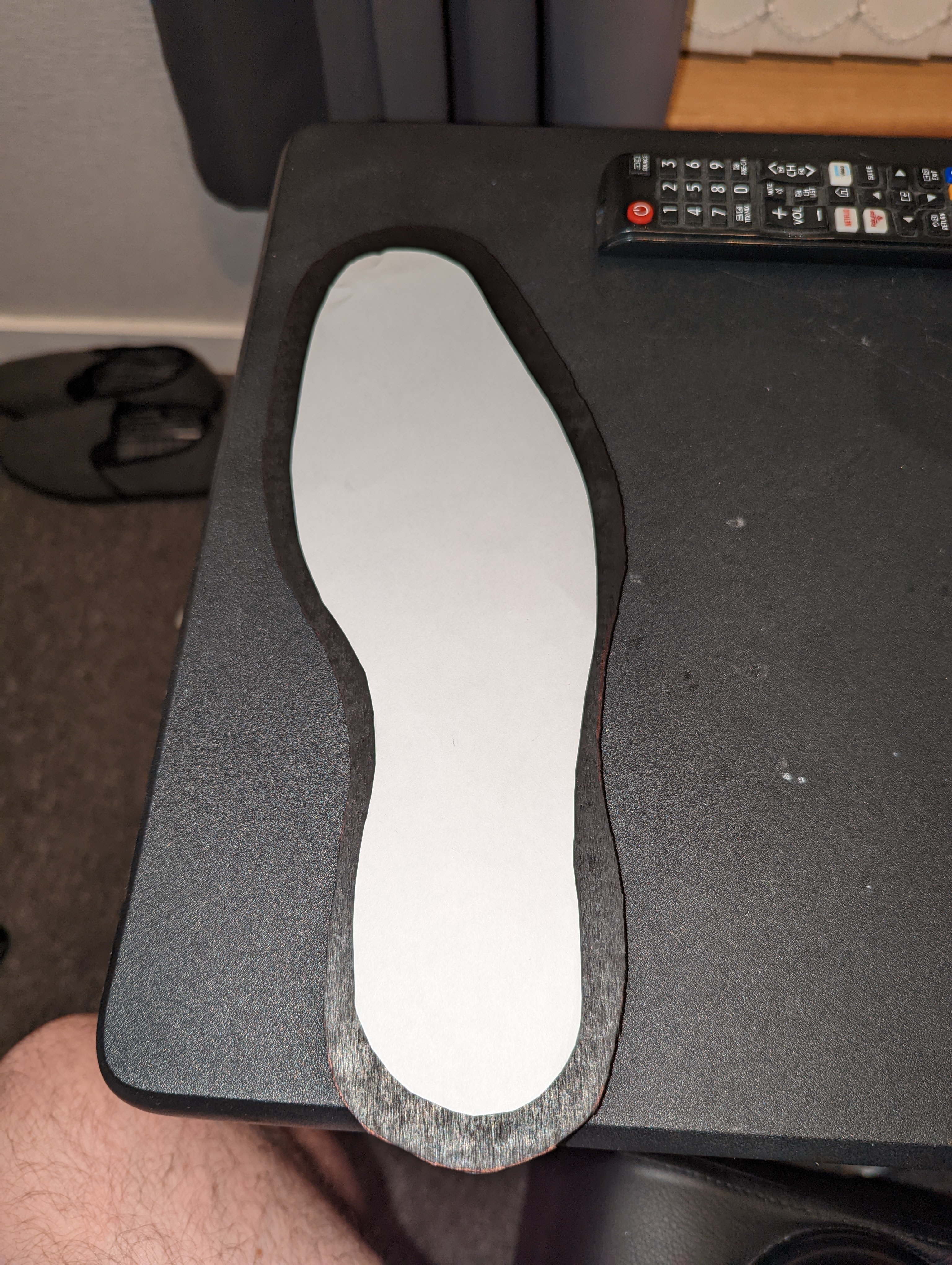

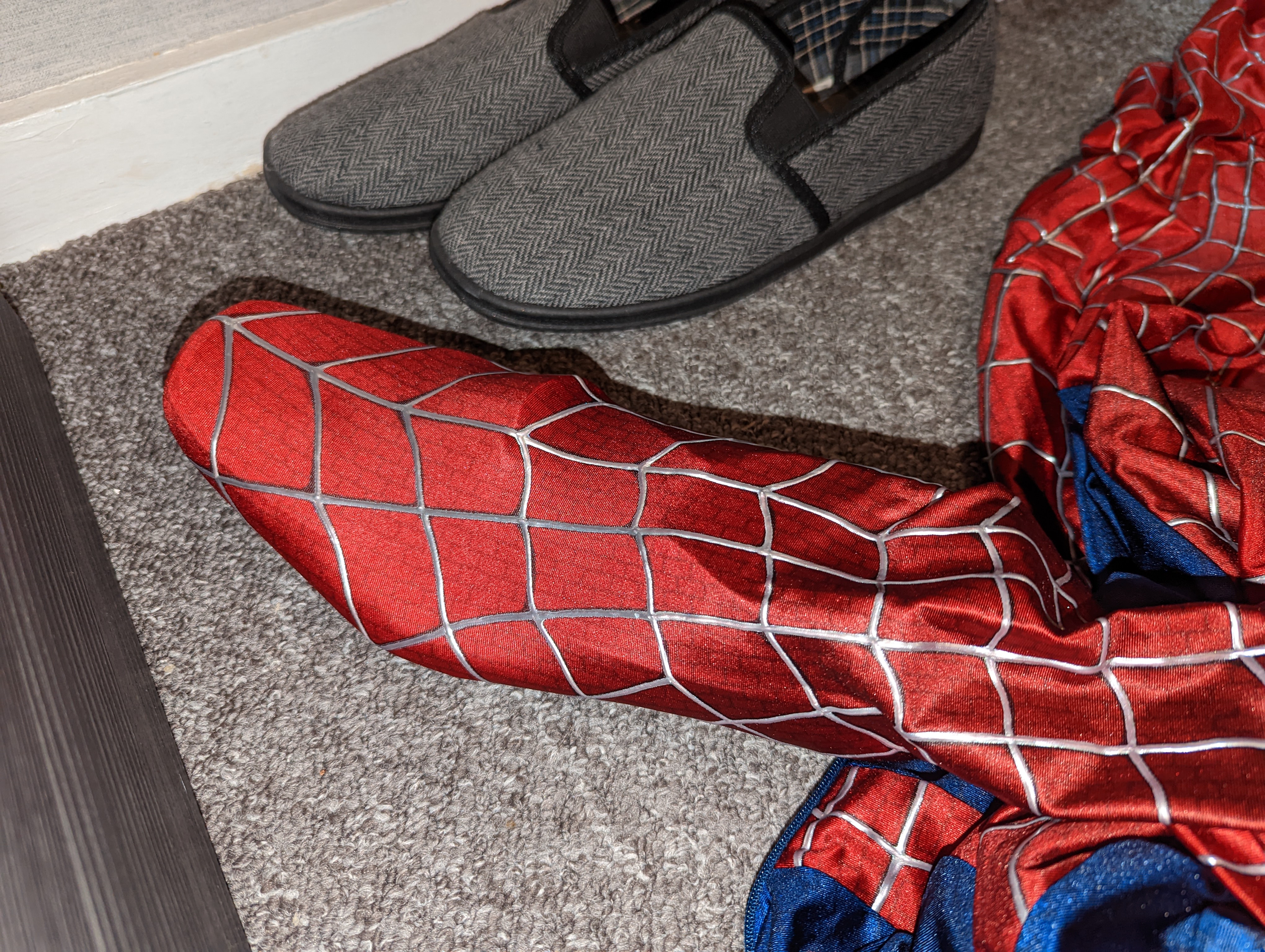

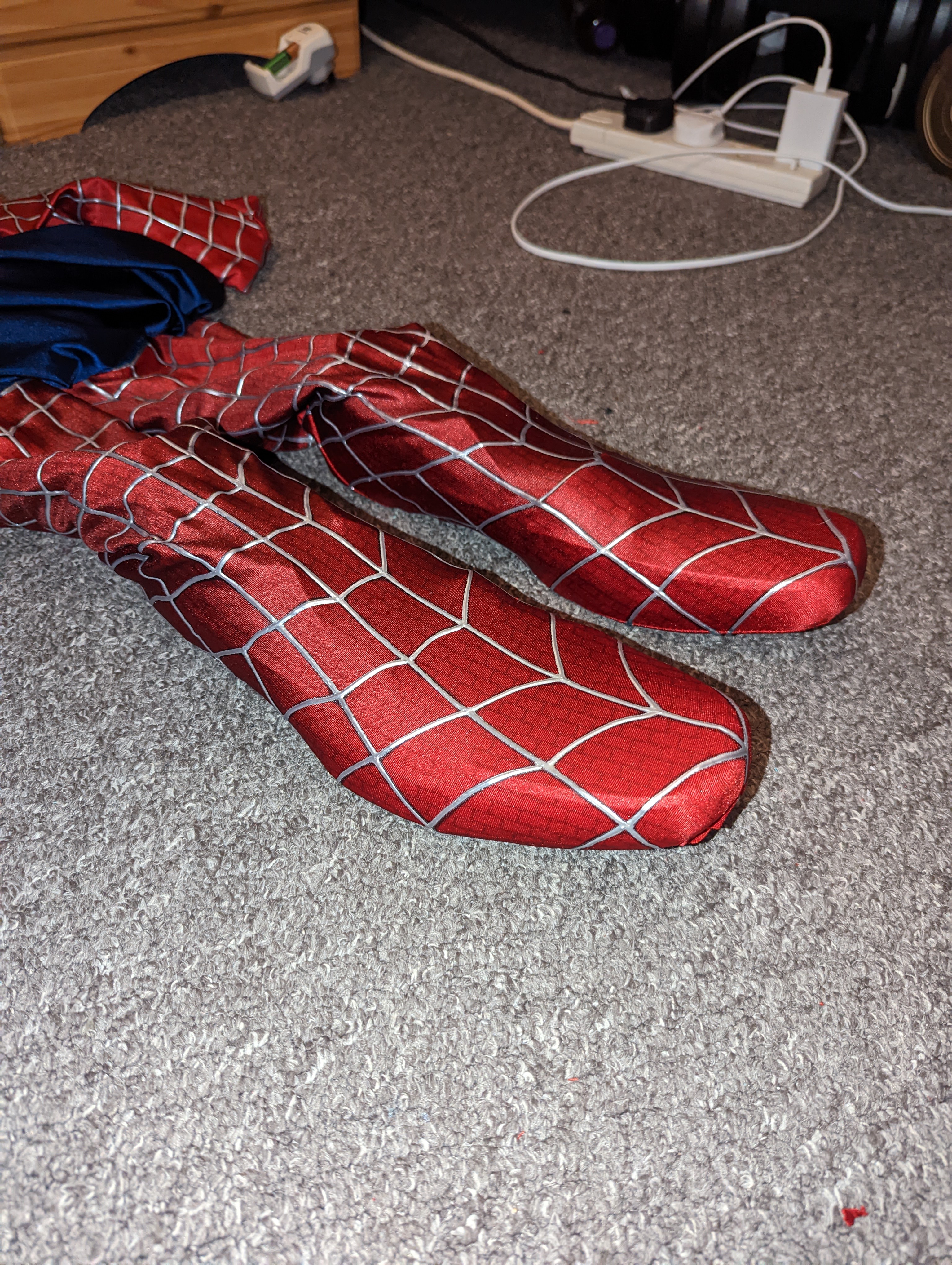

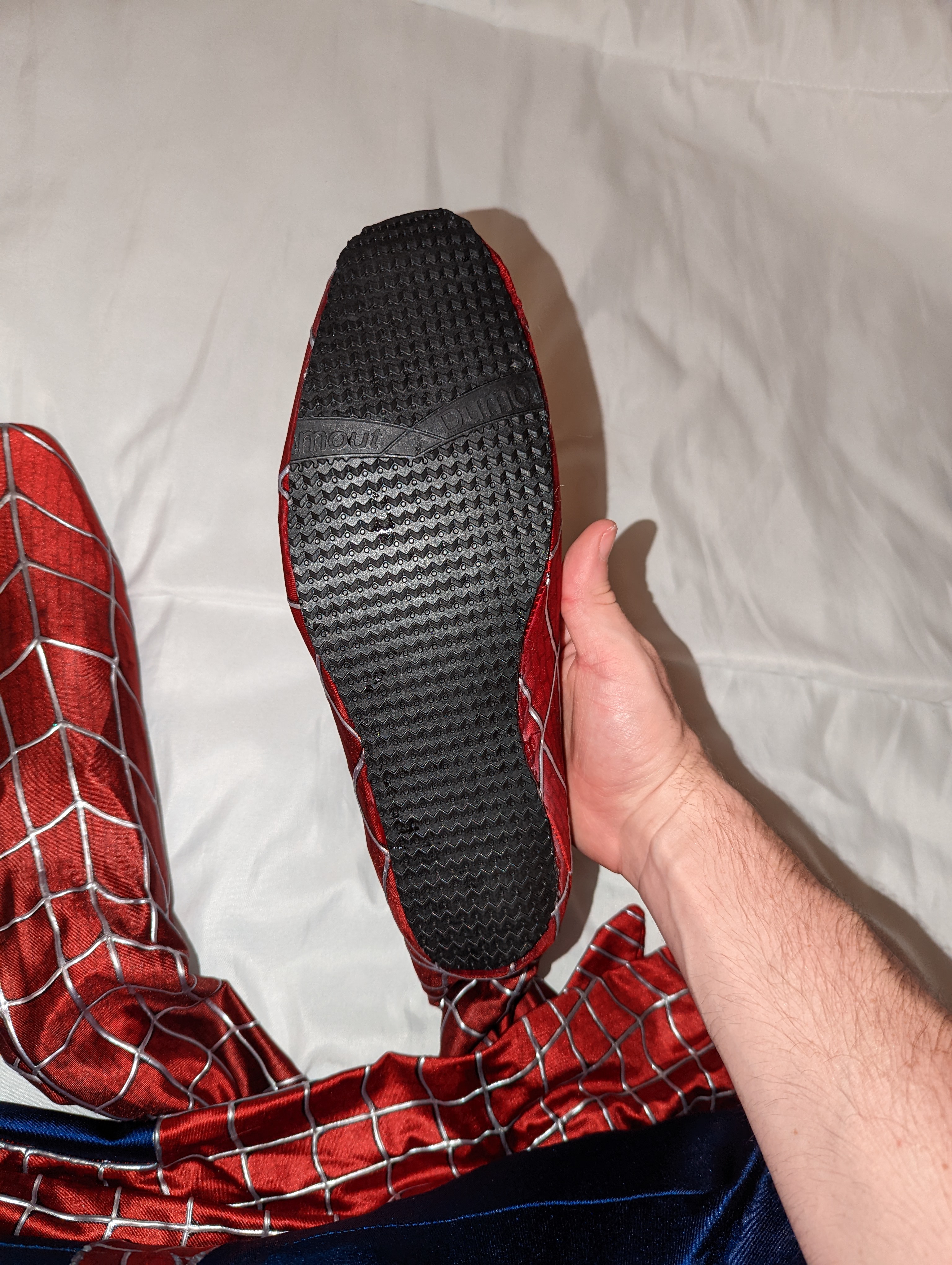

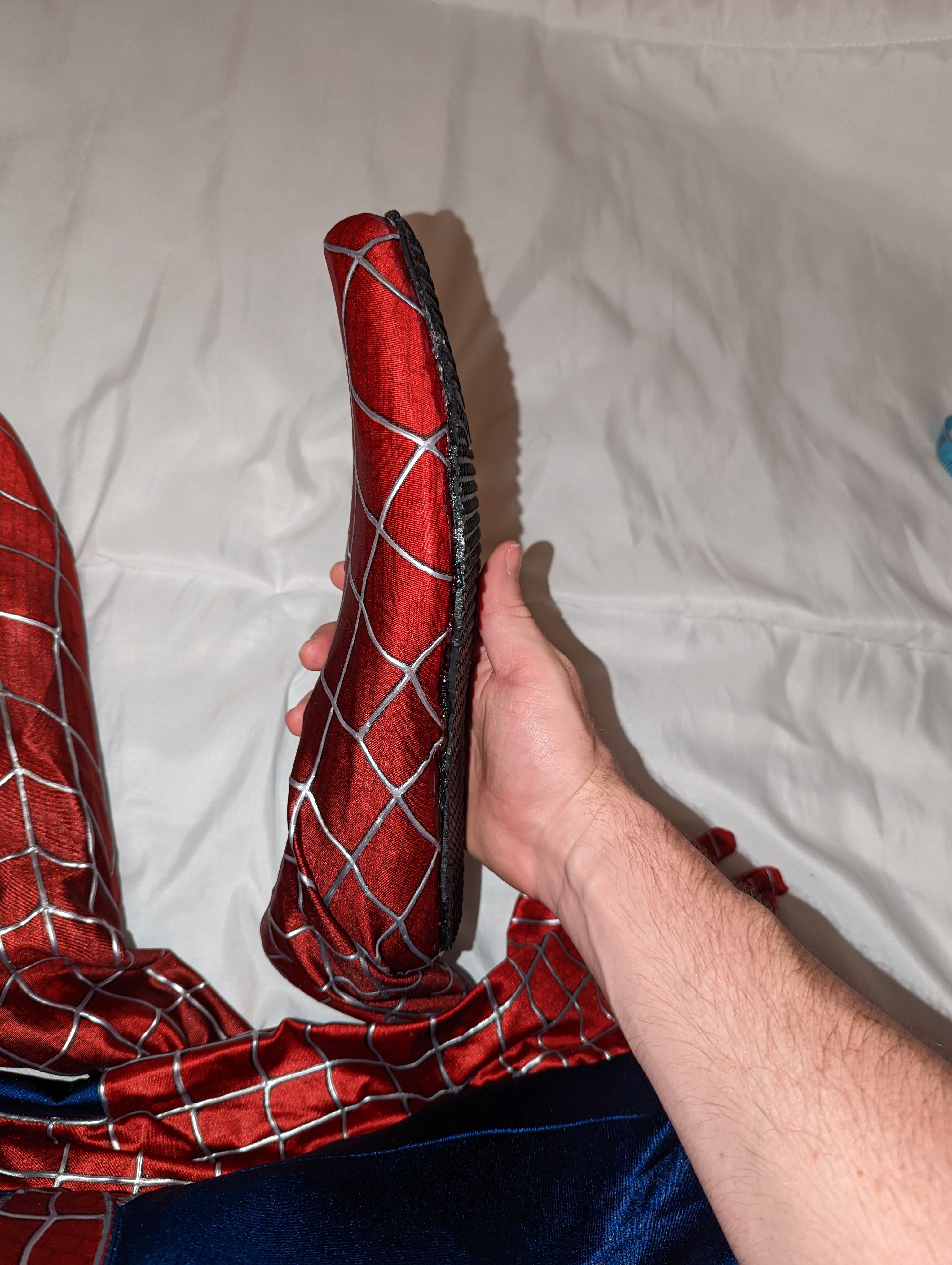

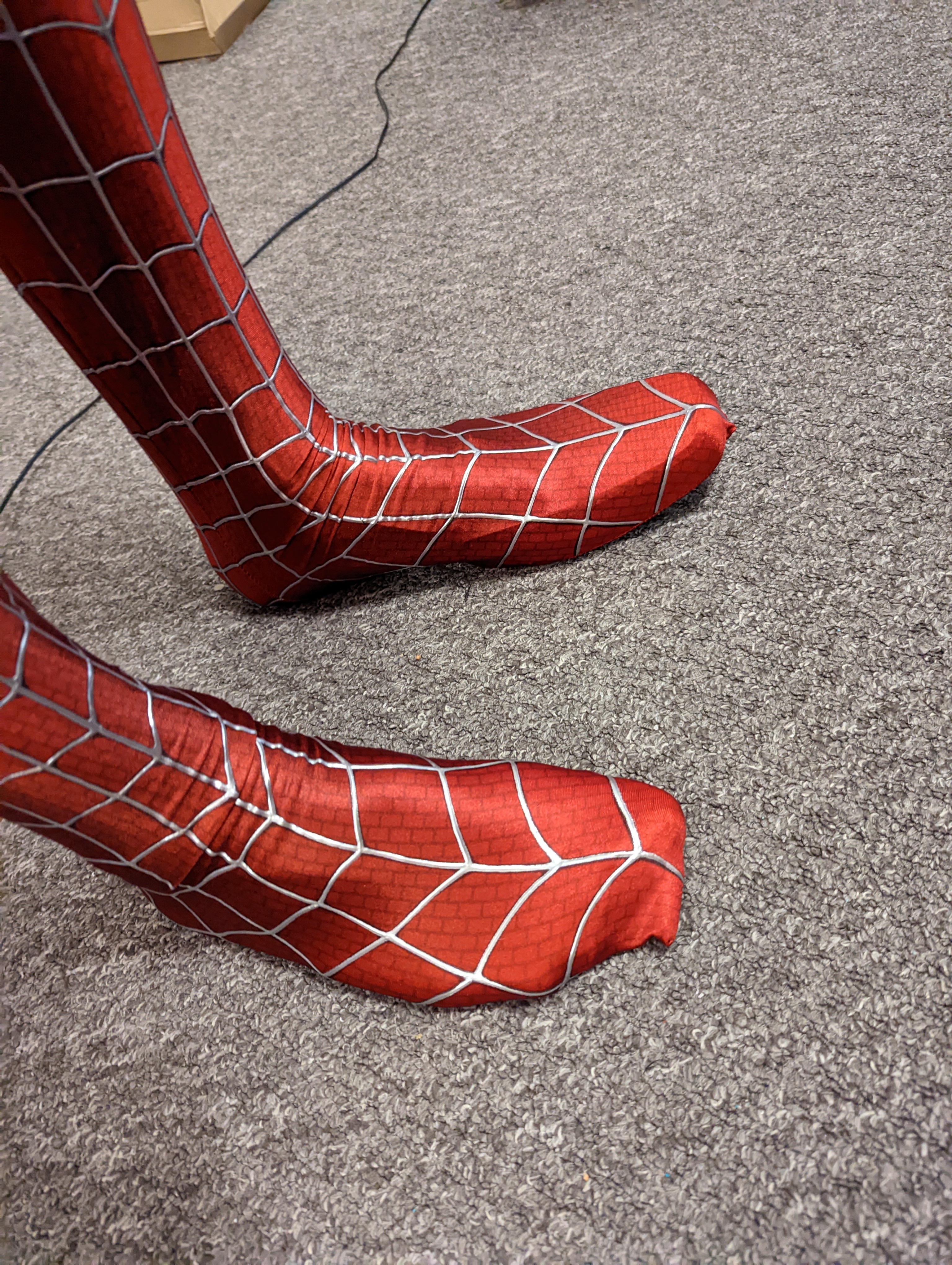

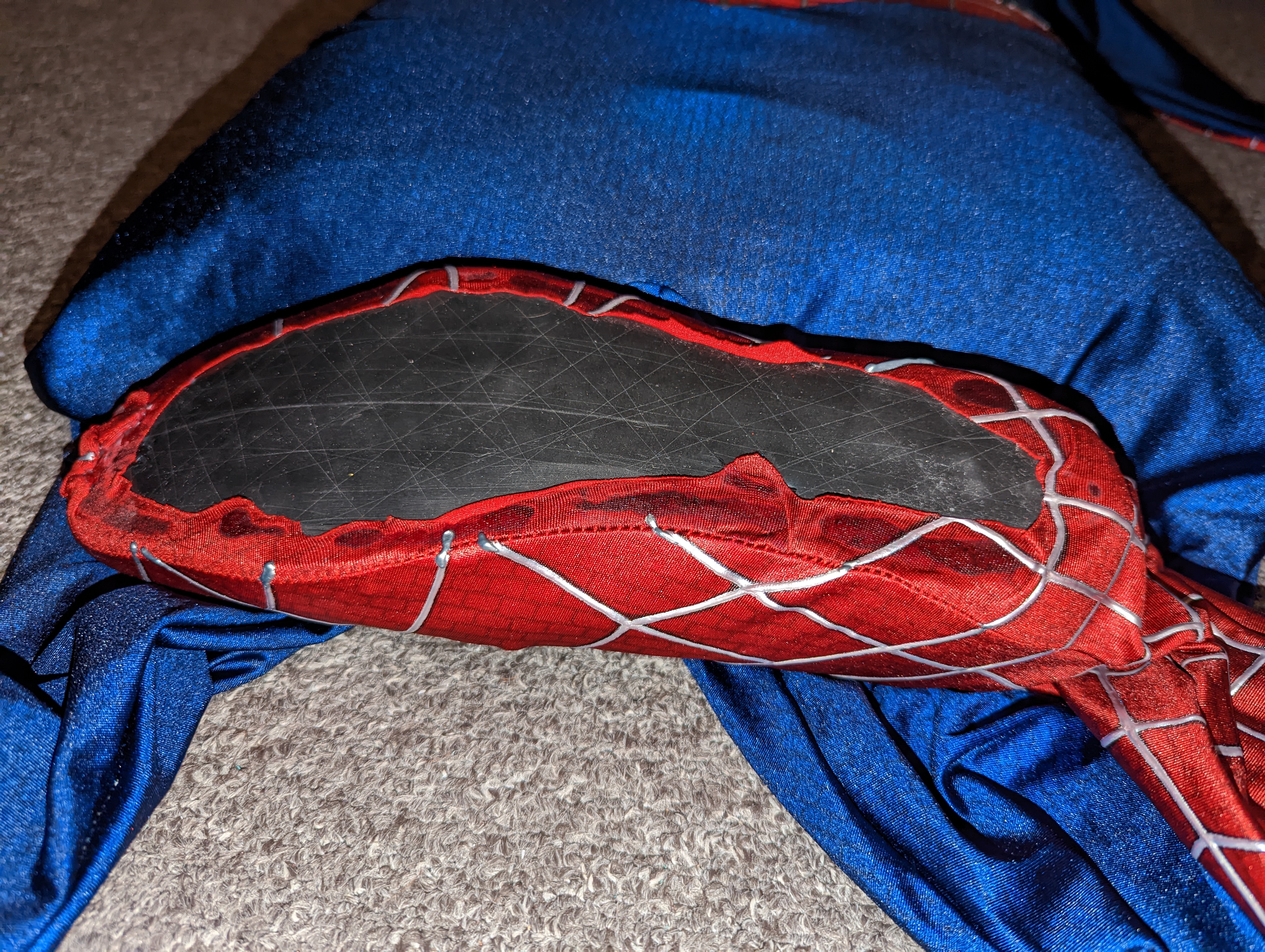

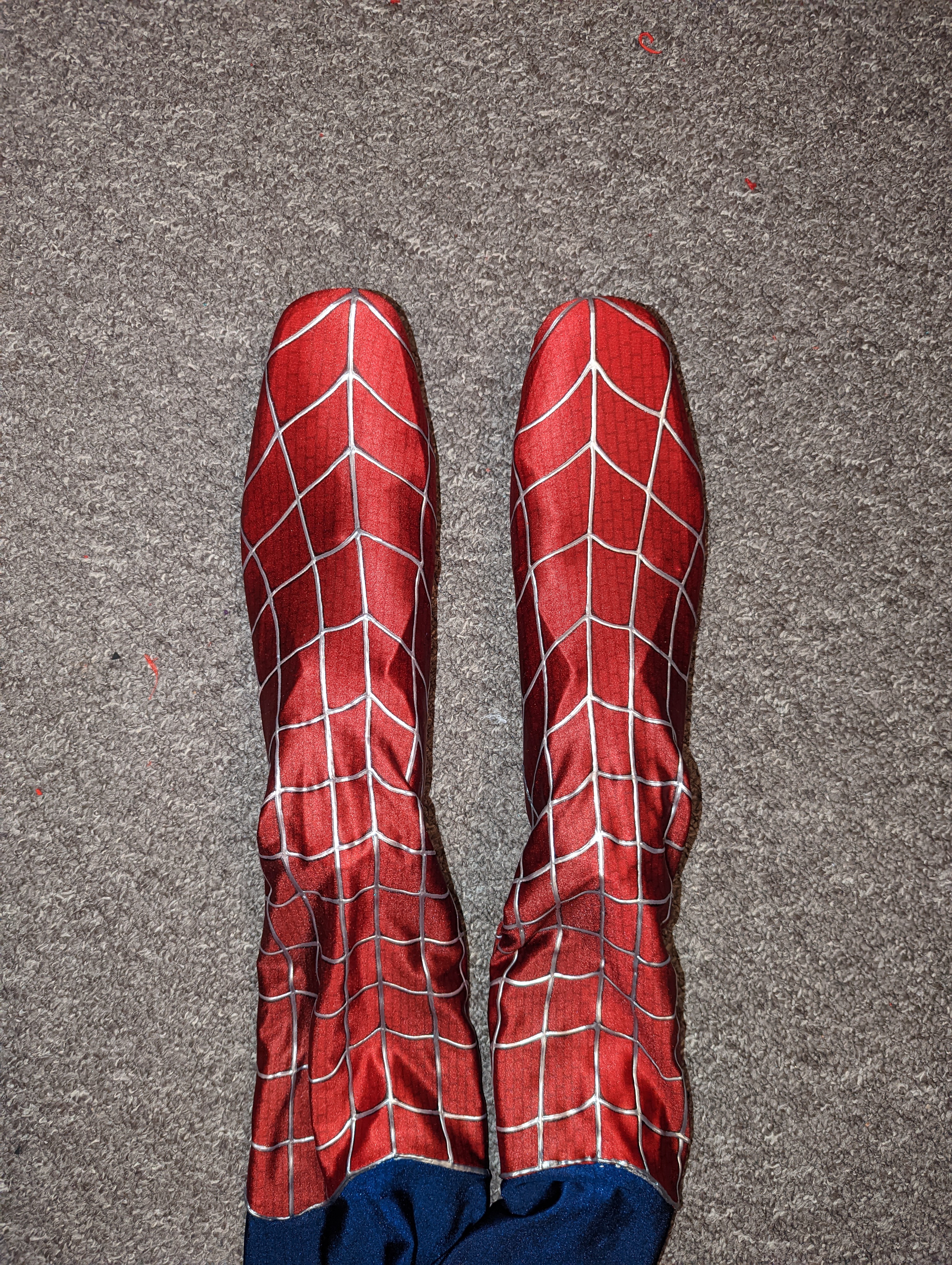

Leather shoes with square tips cut and soles removed then flat rubber sole added to the base of the shoe and glued on. Then shoes put inside the suit and the sole of the suit cut and glued around the sole of the shoe. new rubber grip sole glued to the sole after being cut to shape. Similar to El Fett video on youtube.

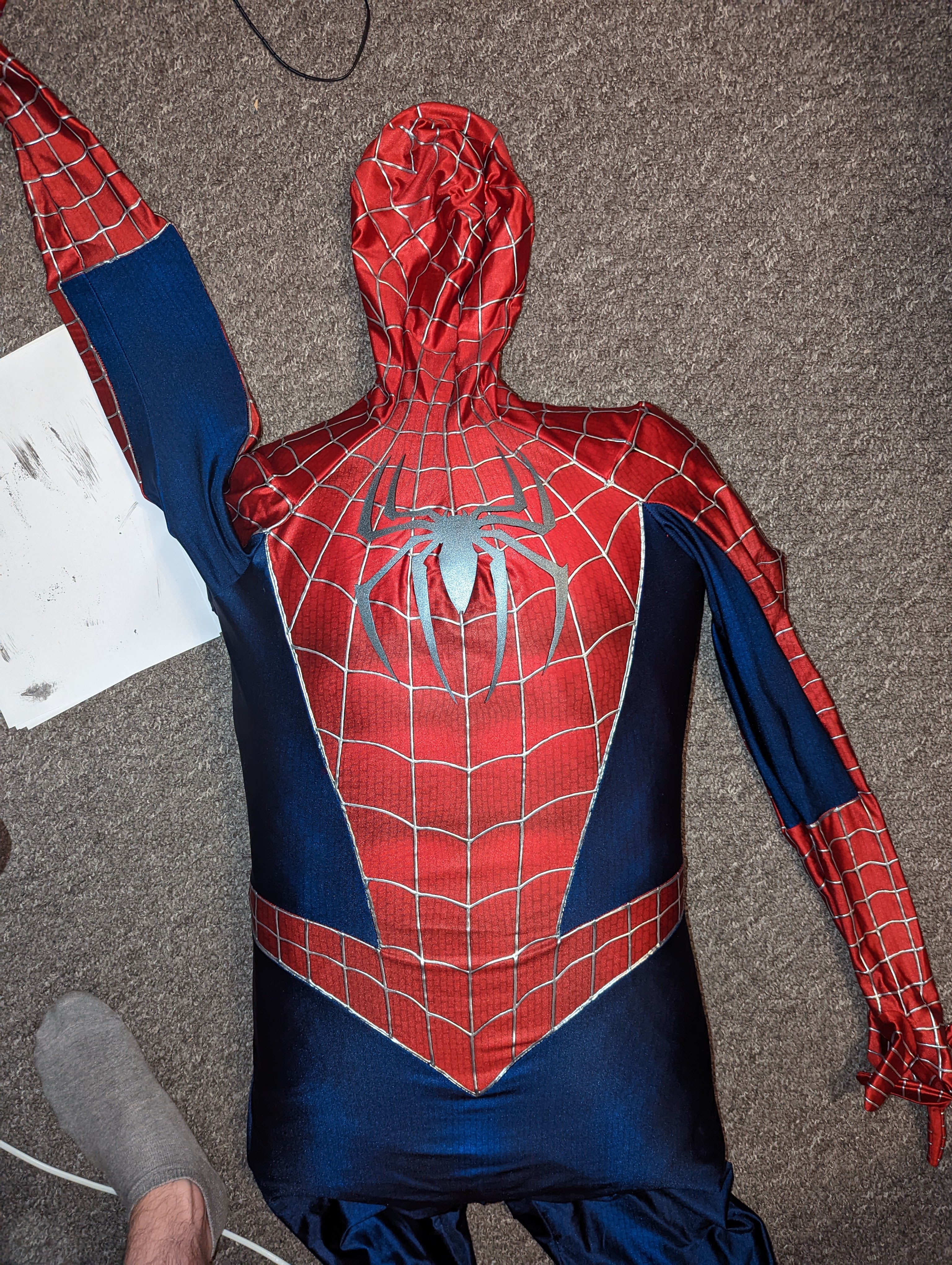

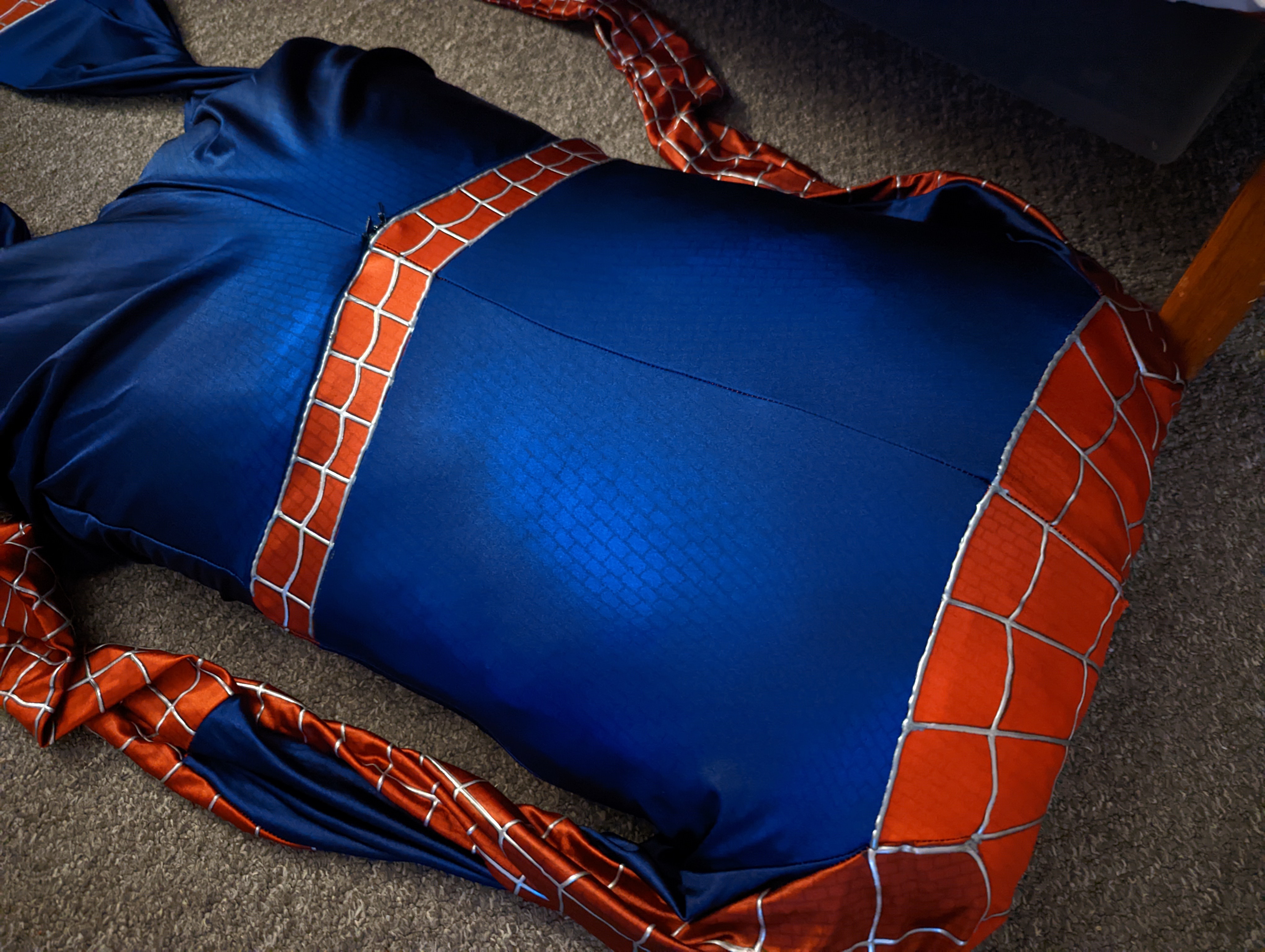

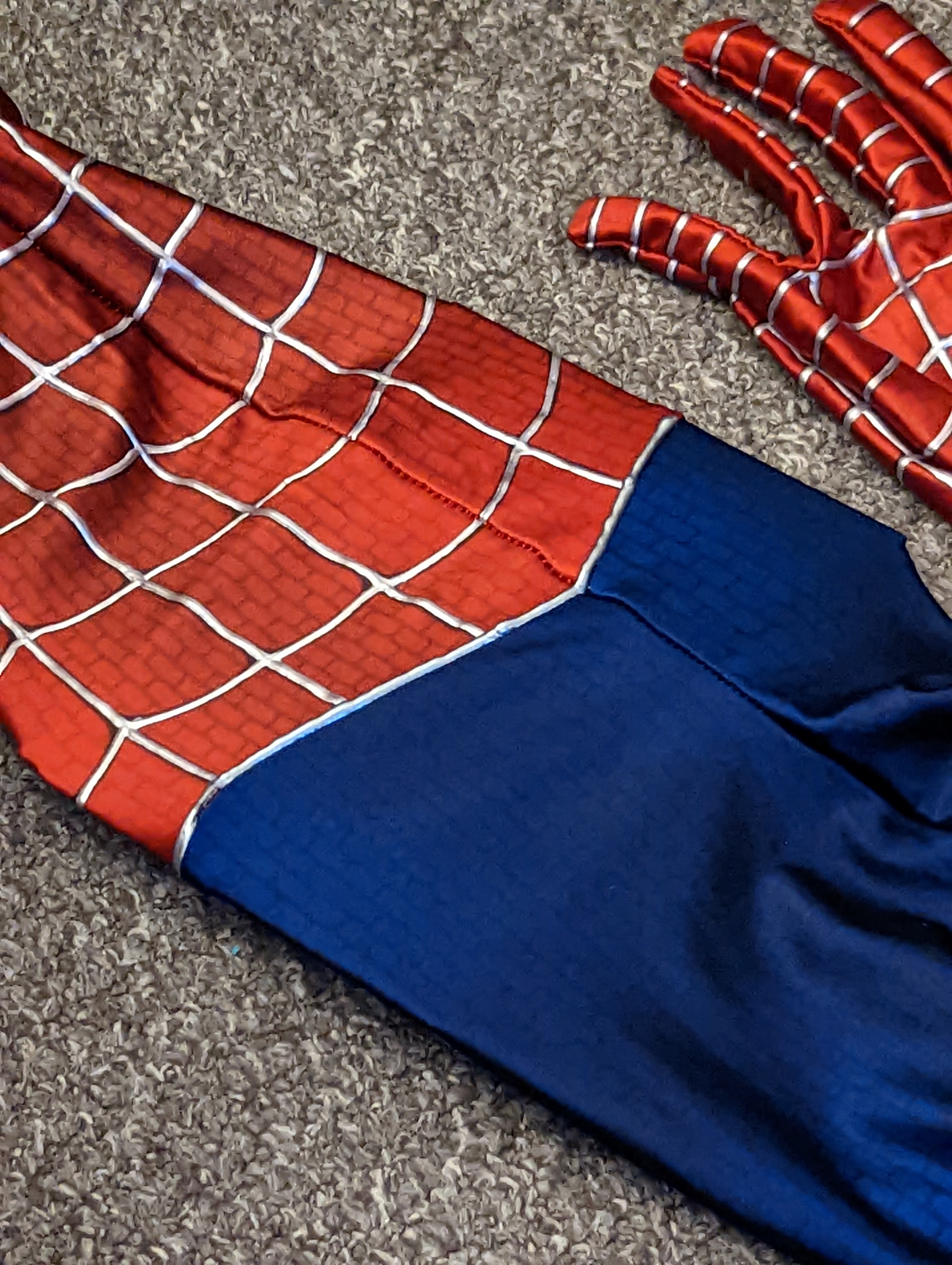

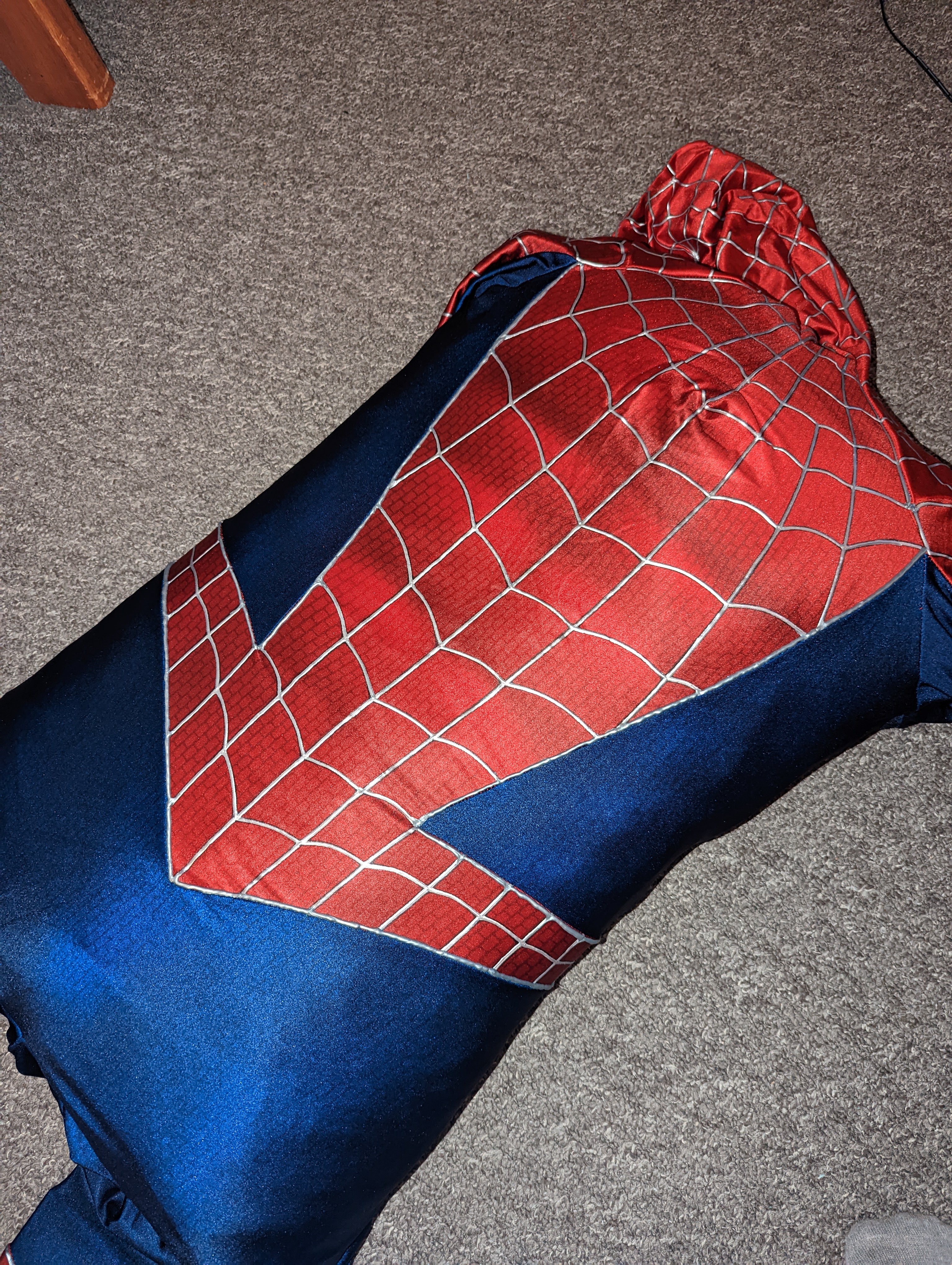

Edges of webbed sections puffy painted with silver (not done by print costume) to enclose the webs.

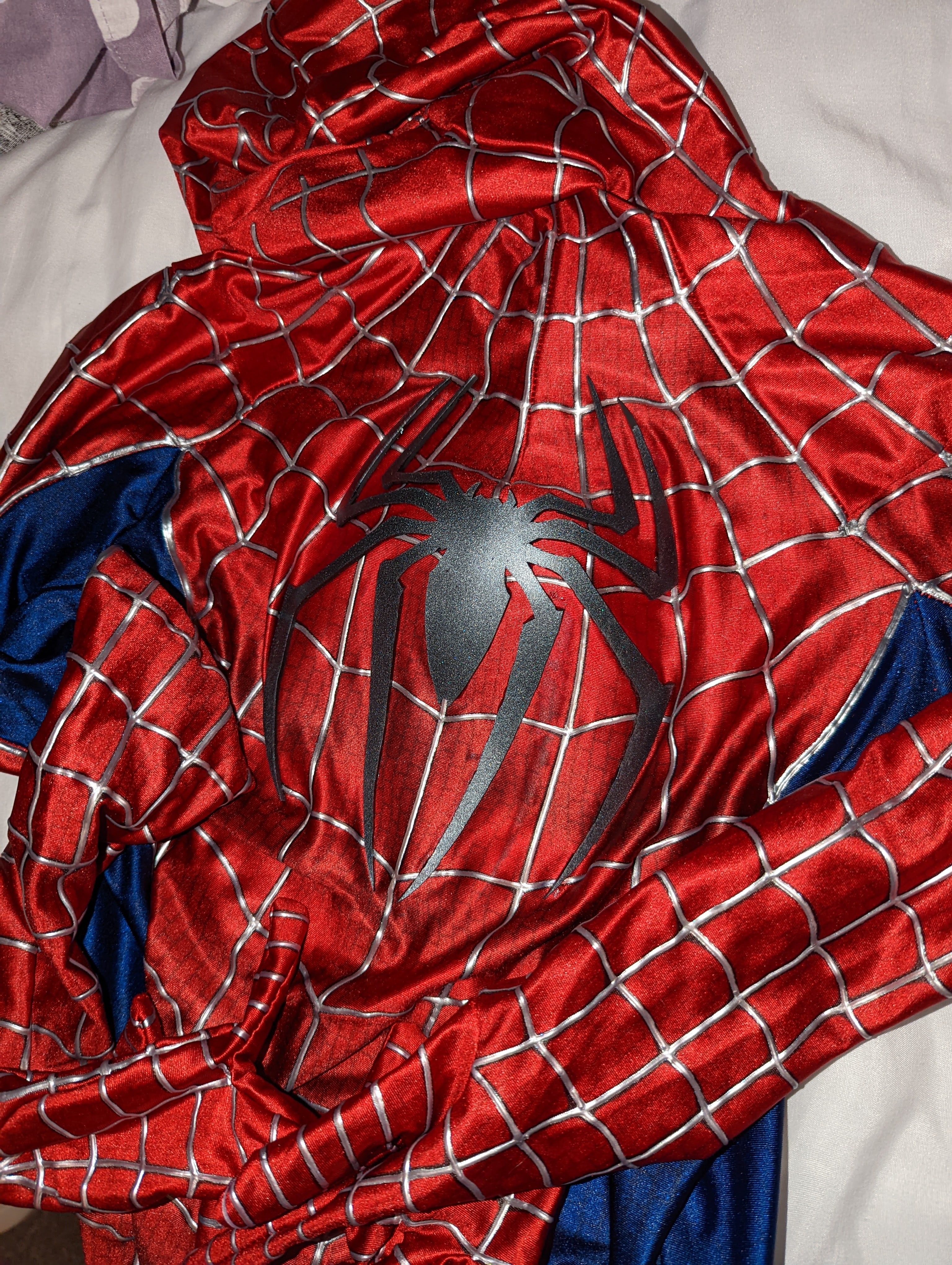

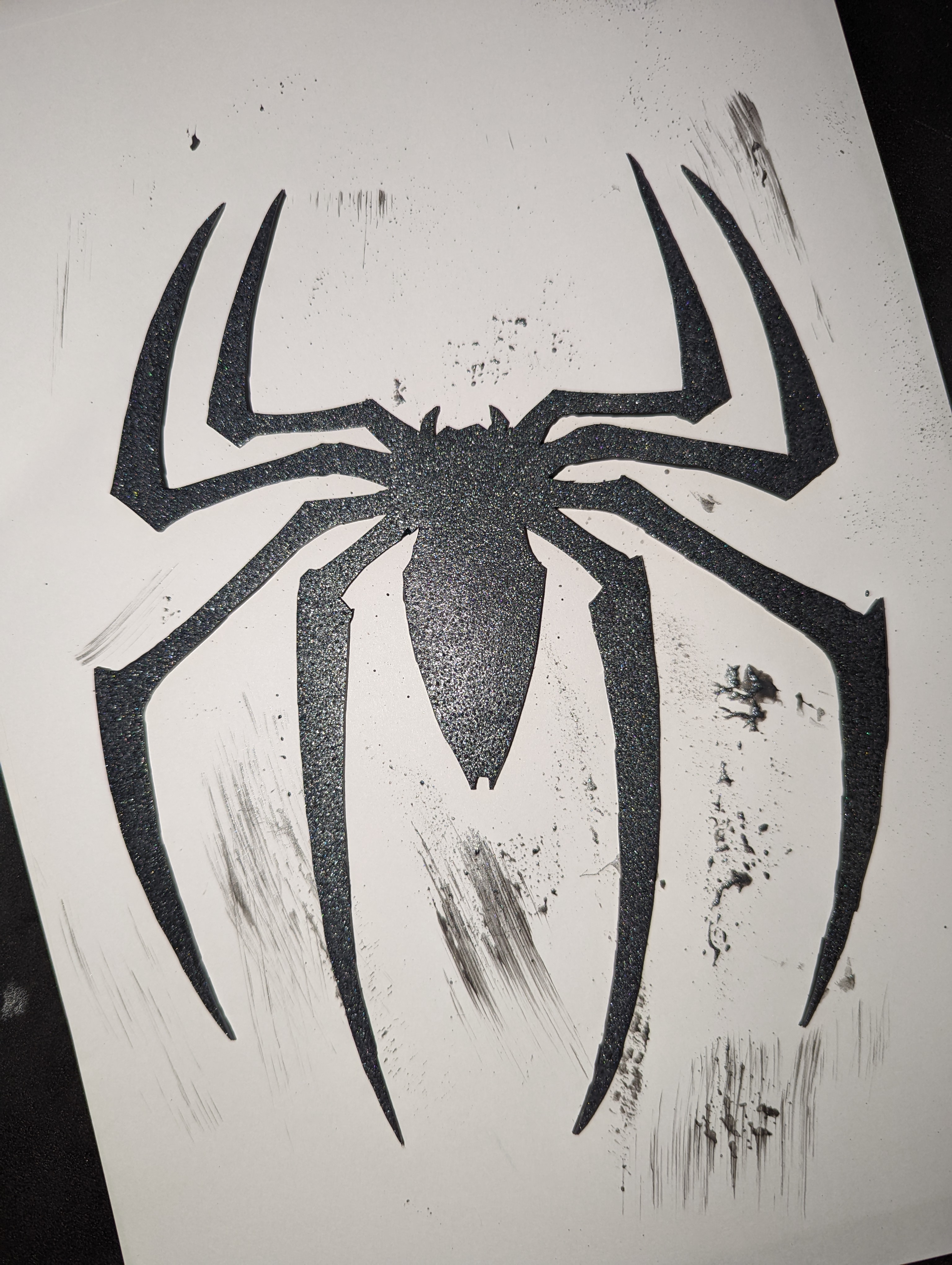

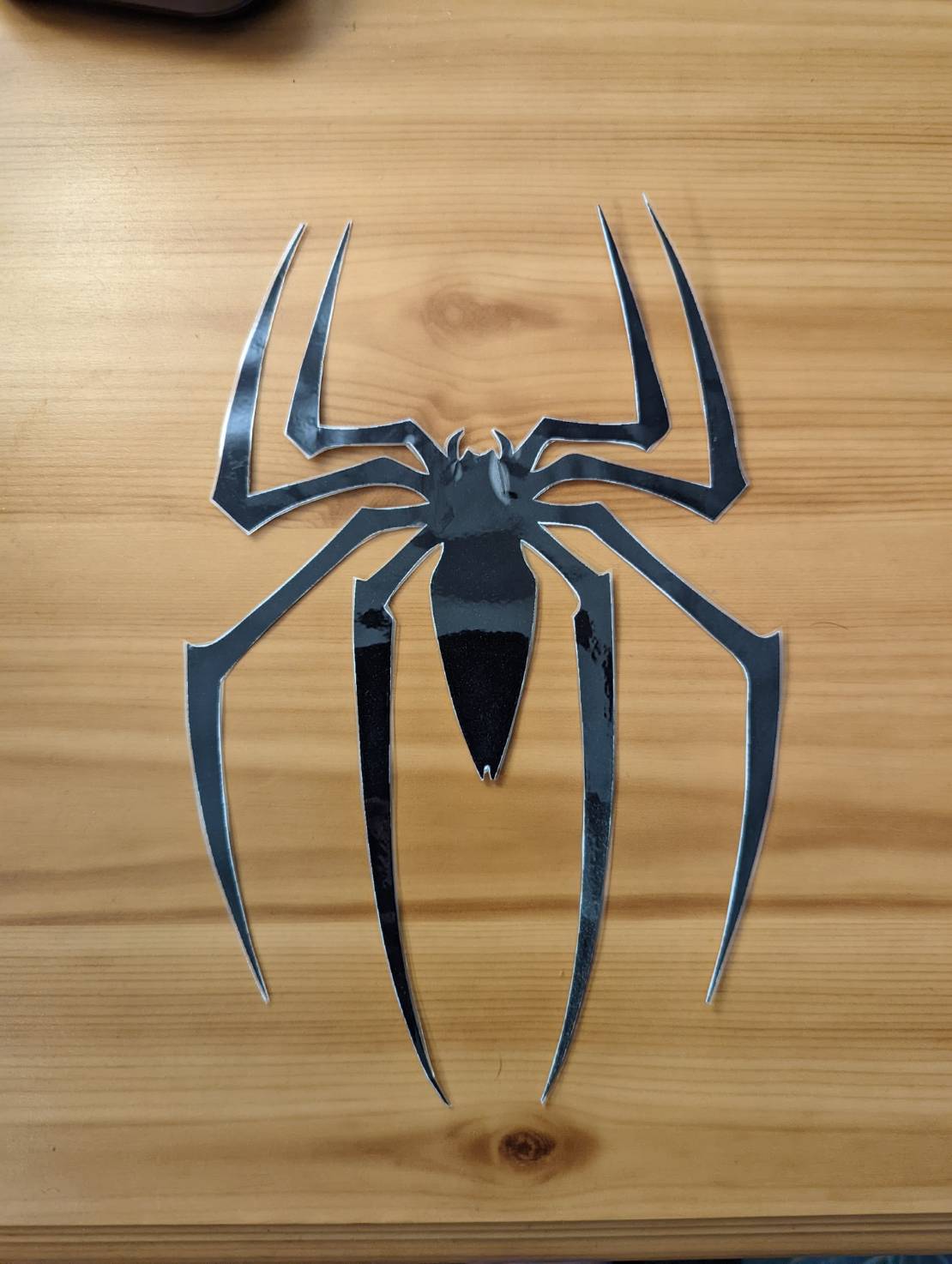

Front spider cut to size as first attemt was too small then lined up and glued to suit using E6000.

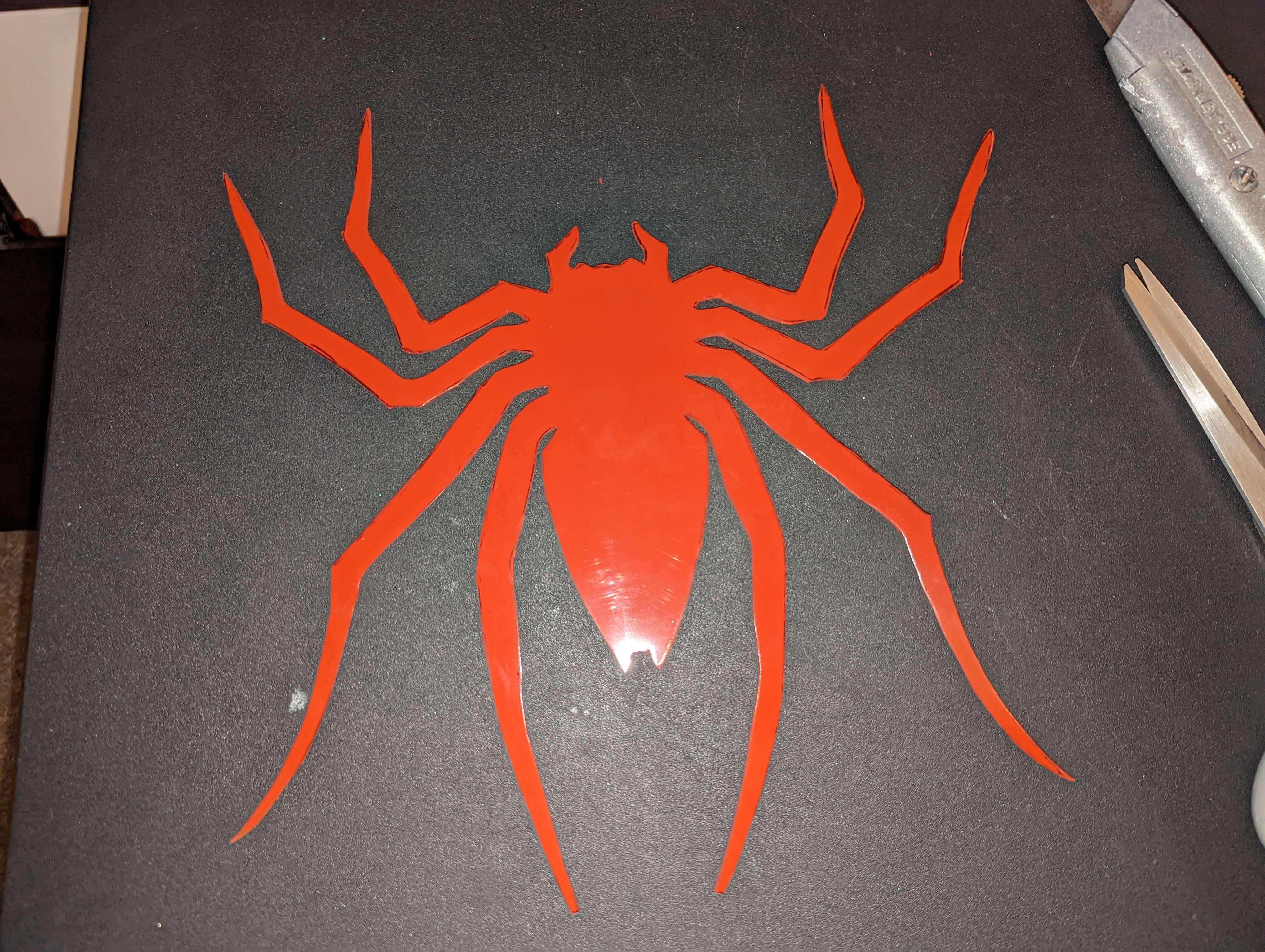

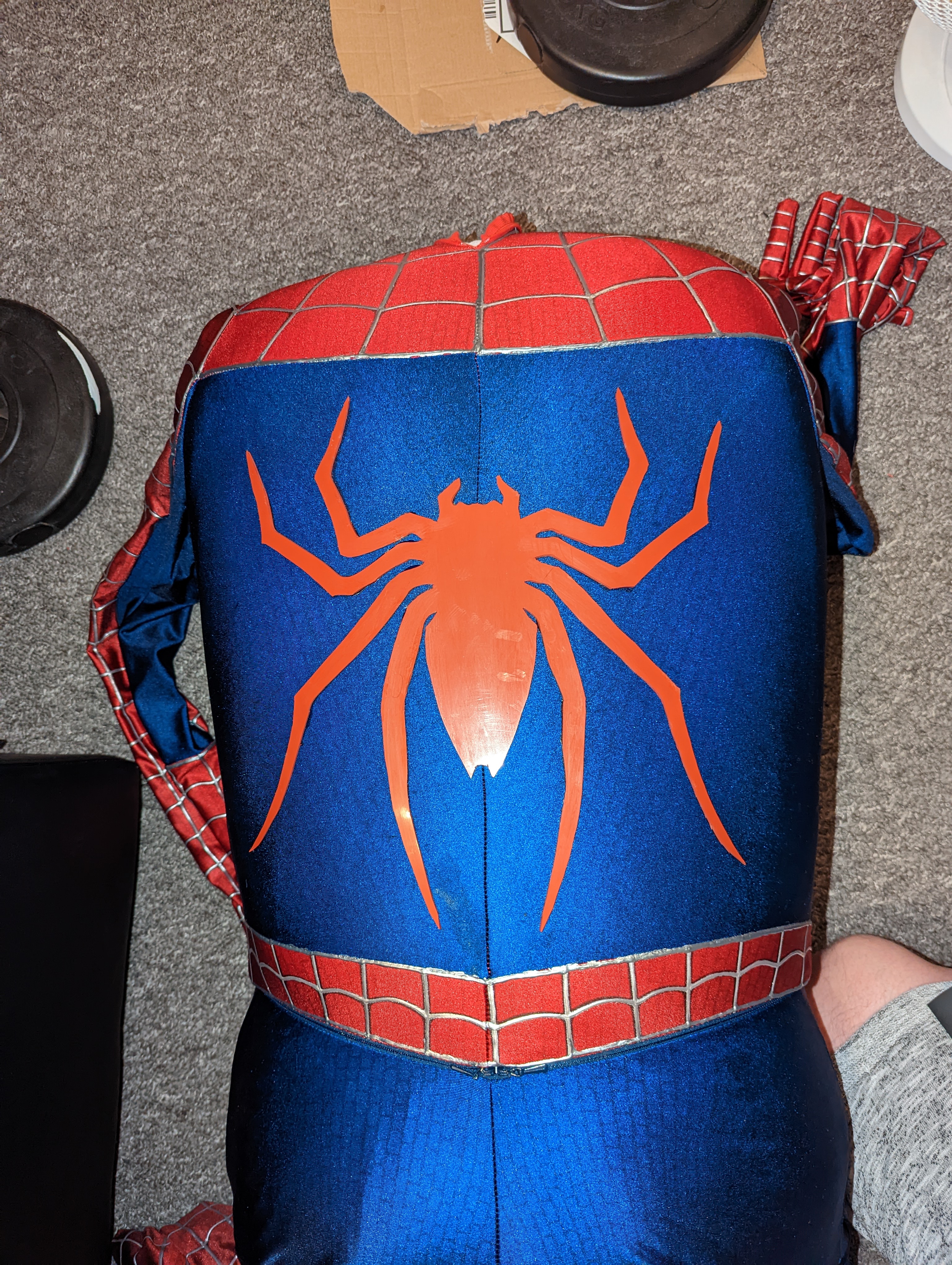

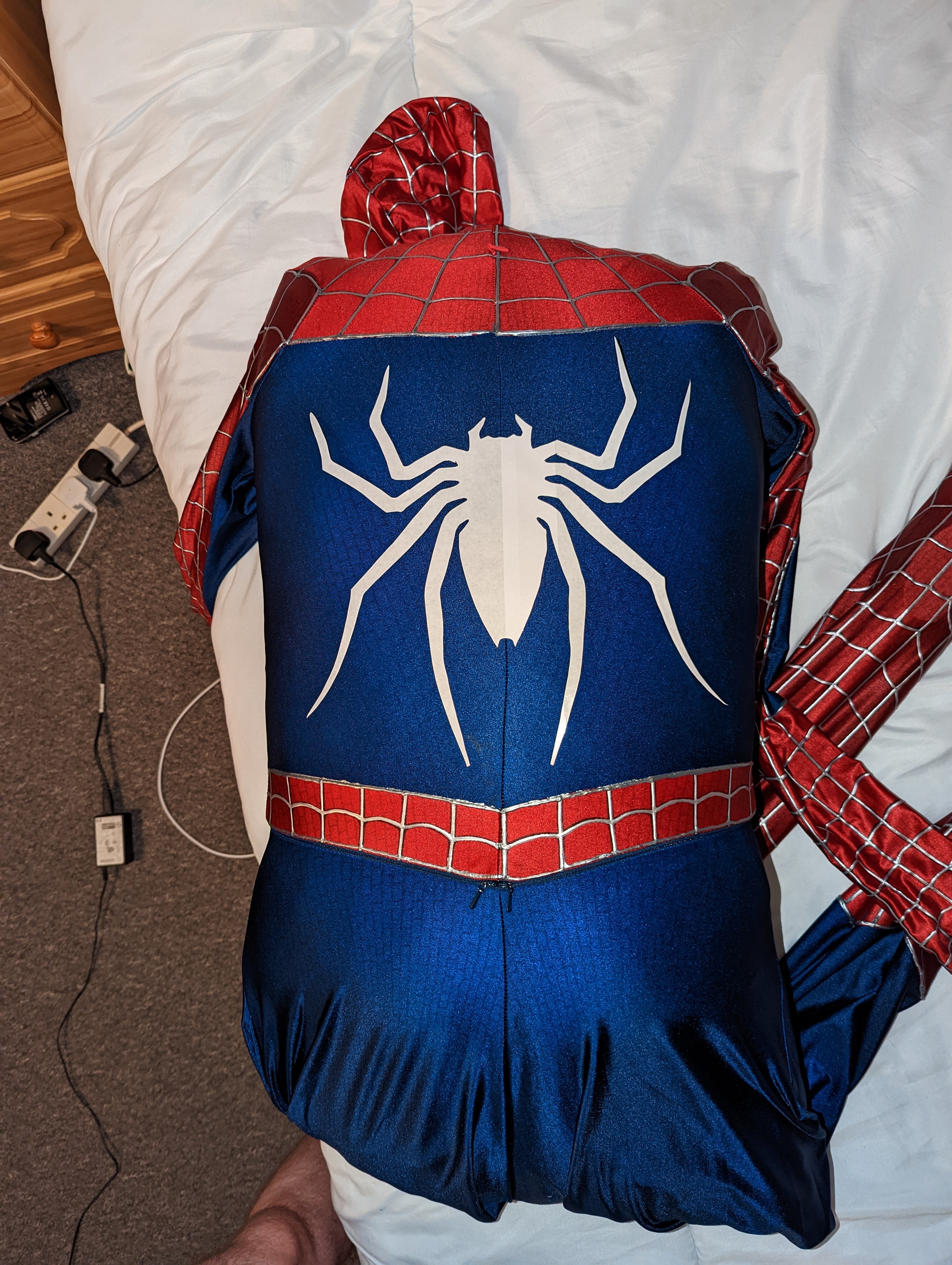

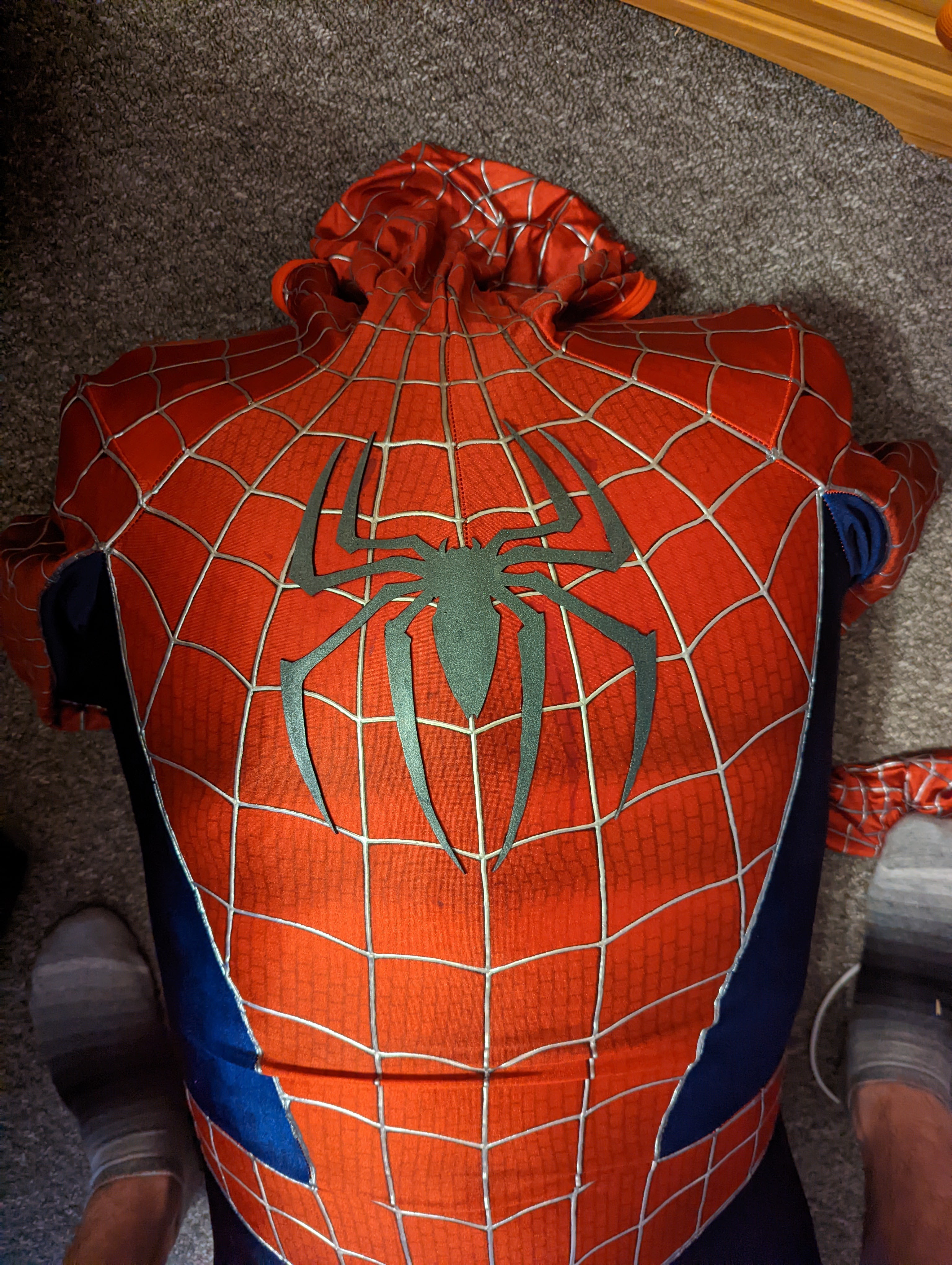

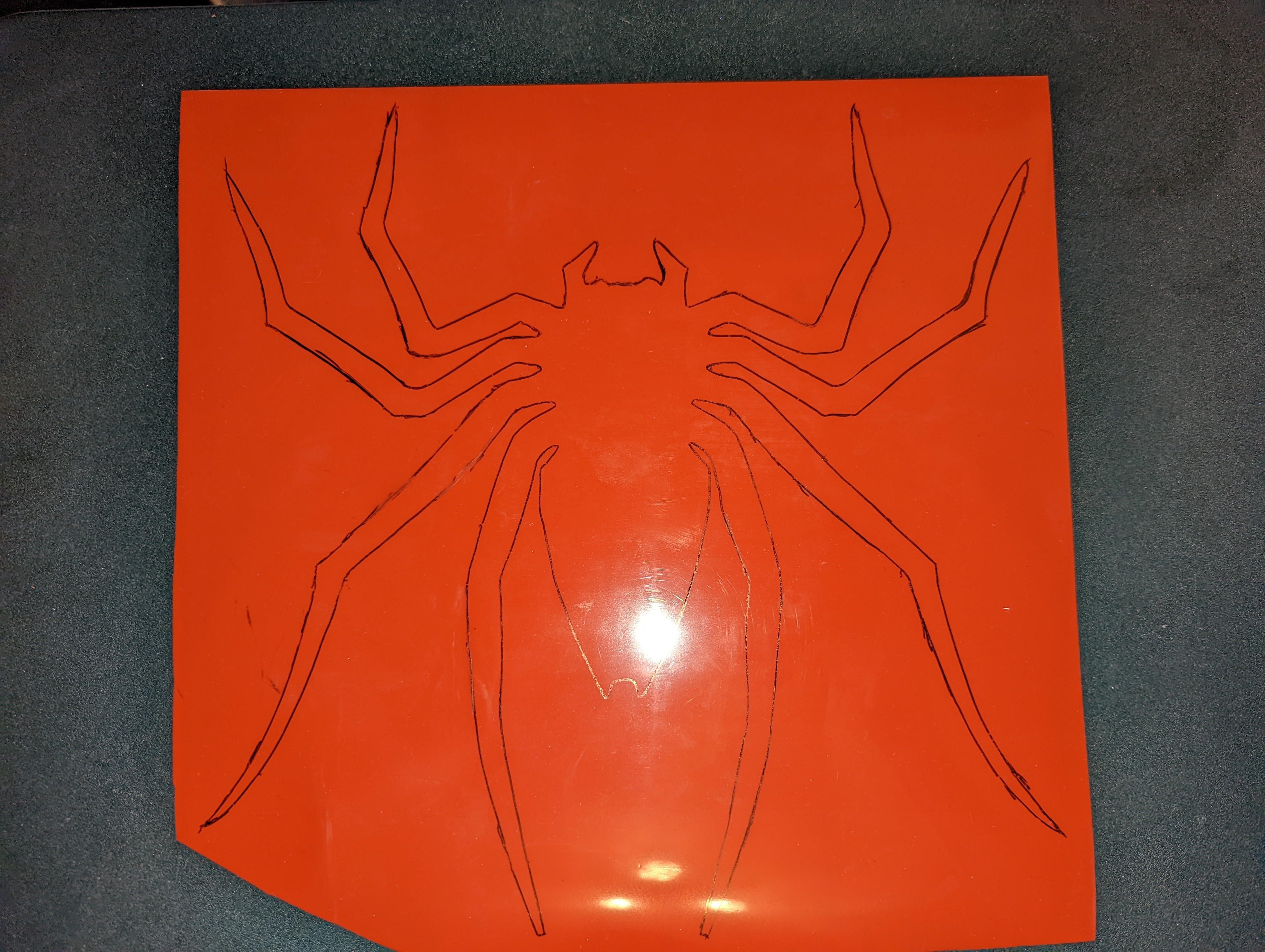

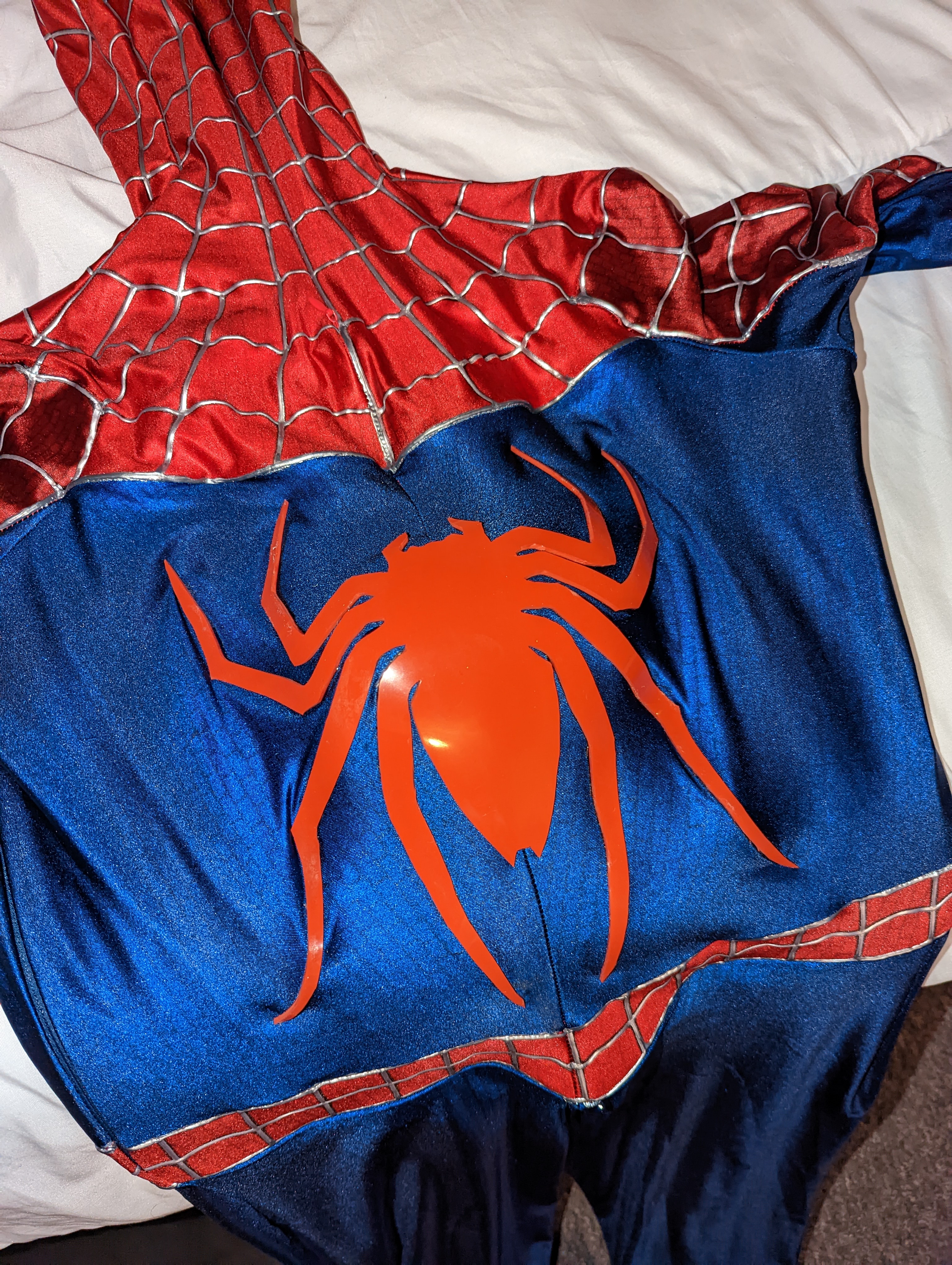

Back spider made with stencil and cut from rubber sheet then glued to back of suit using E6000.

Now just waiting on Faceshell 3d print to be delivered and more updates will follow.
Thanks.



[scottanderson94]

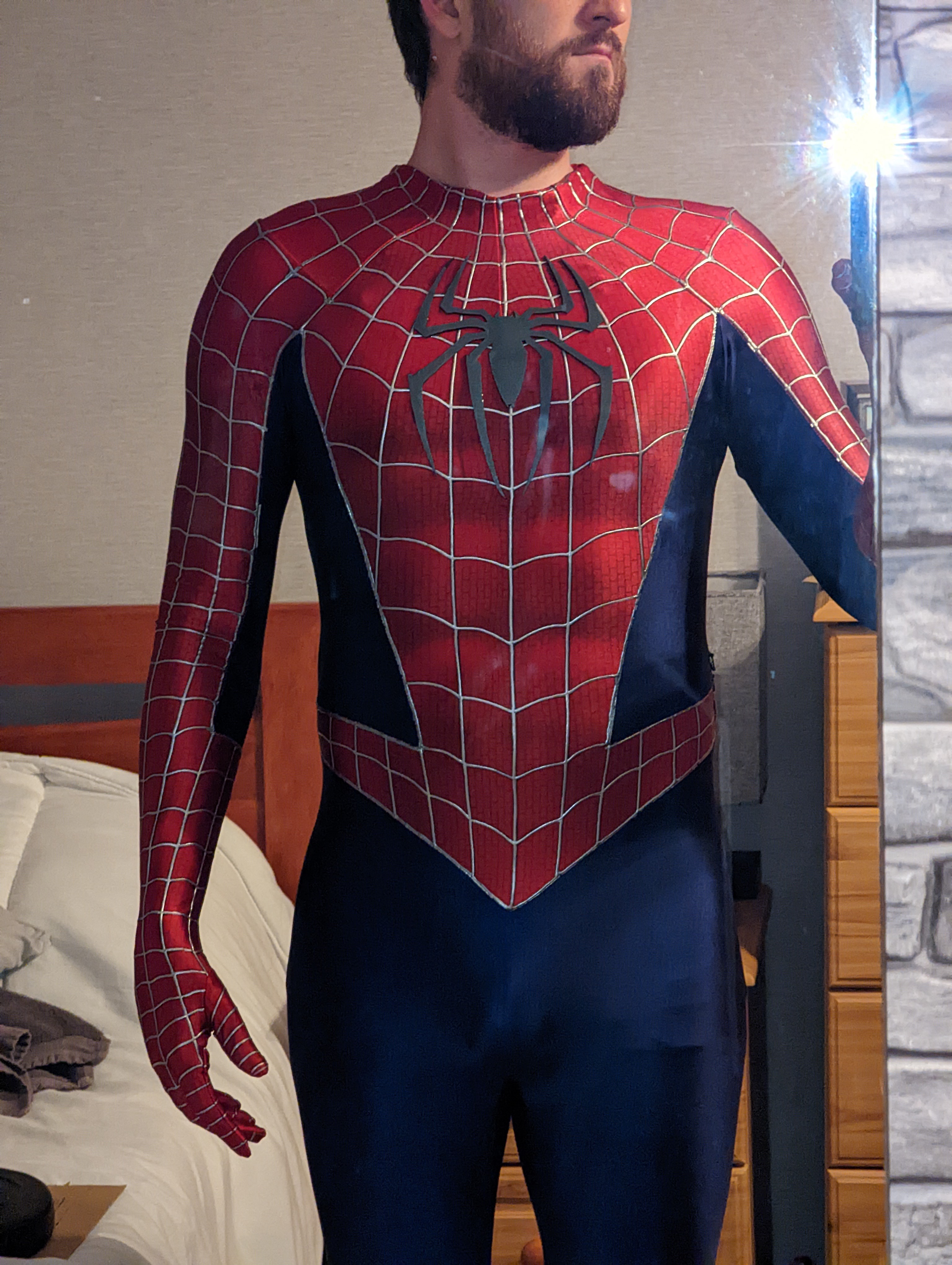

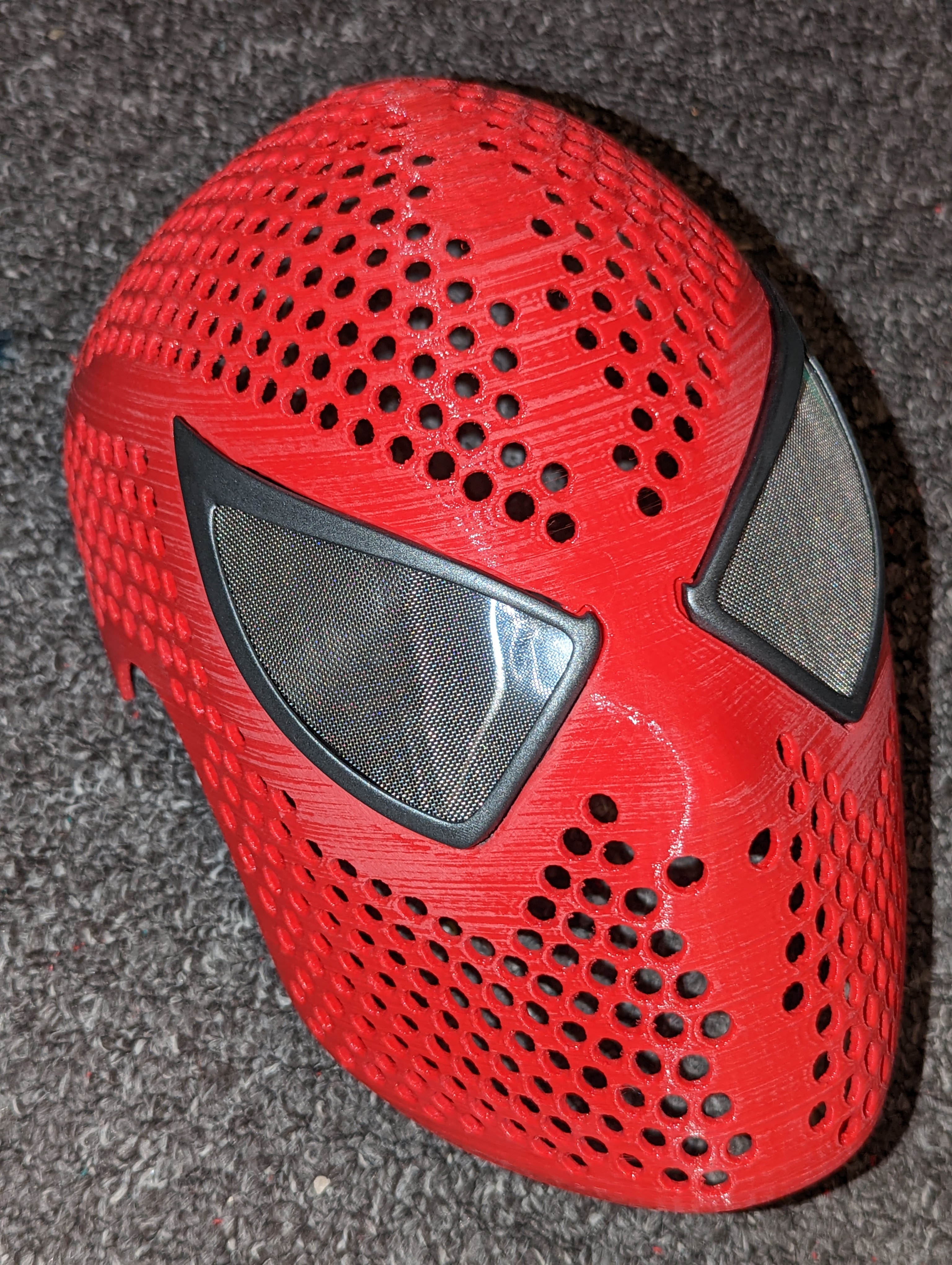

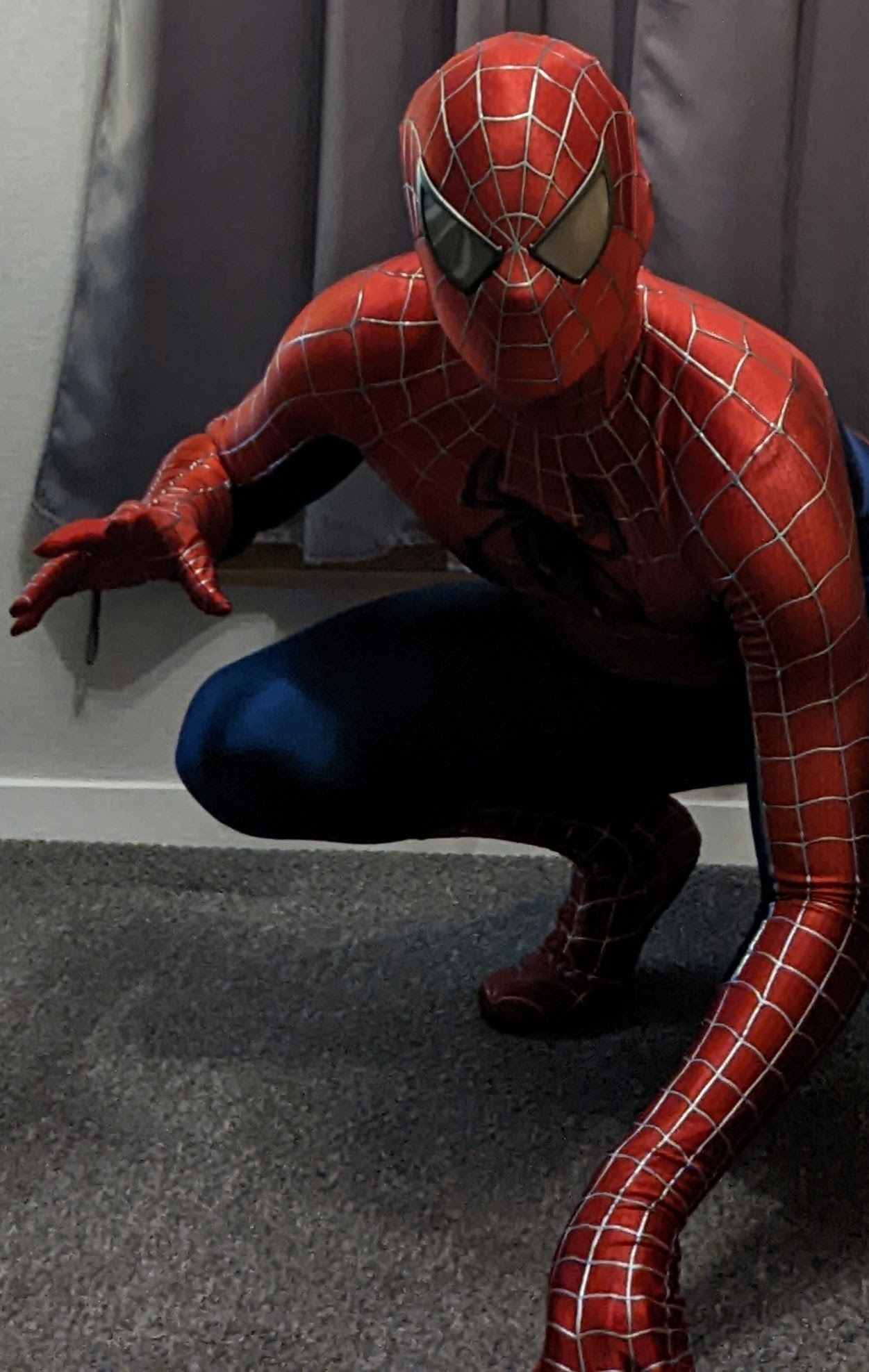

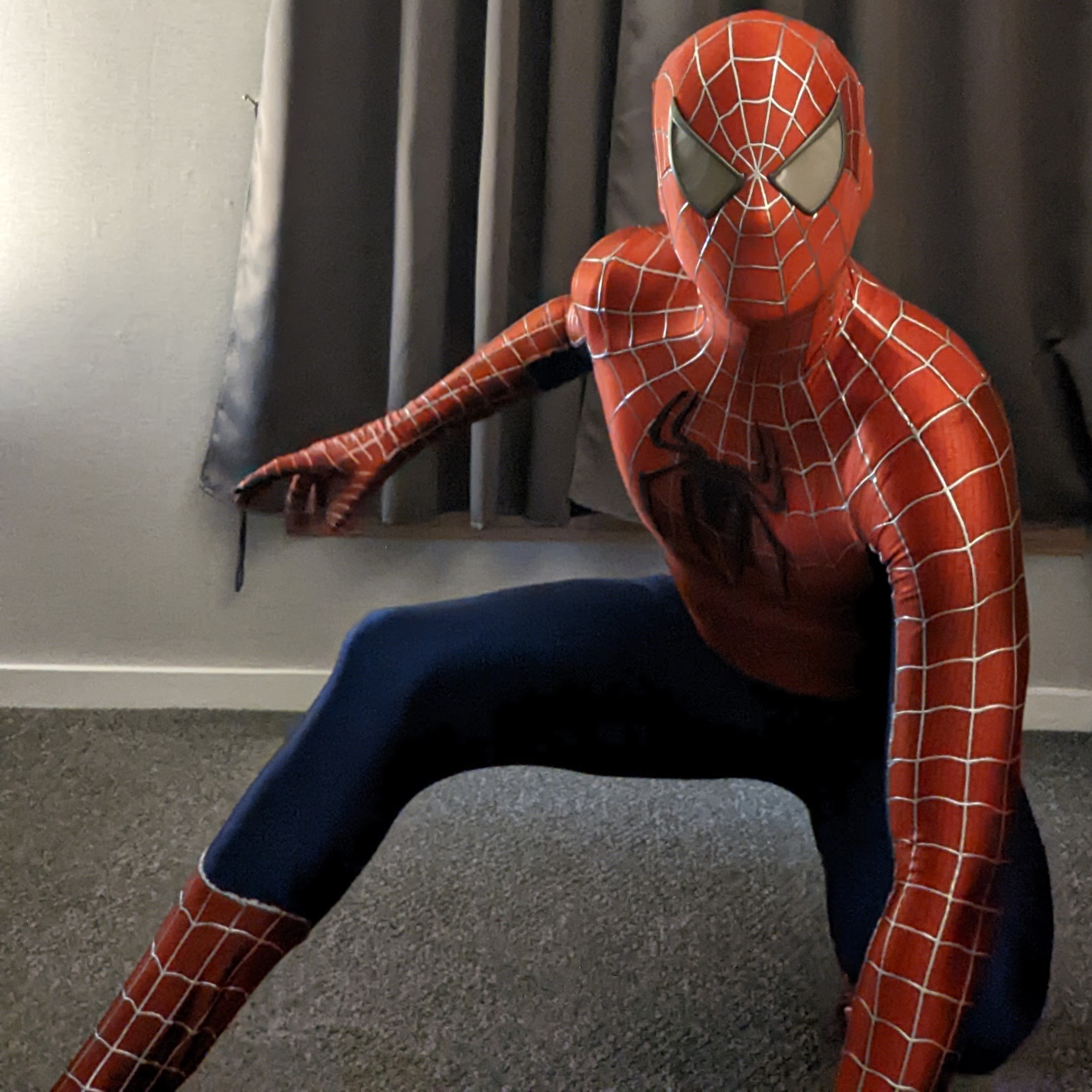

Suit is Finished! Faceshell fit like a glove and was easy to put into the mask and line up then cut the eye holes and used double sided sticky tape mesh to hold the cut fabric inside the faceshell. I followed what spidey planet did in their video to fit their faceshell.

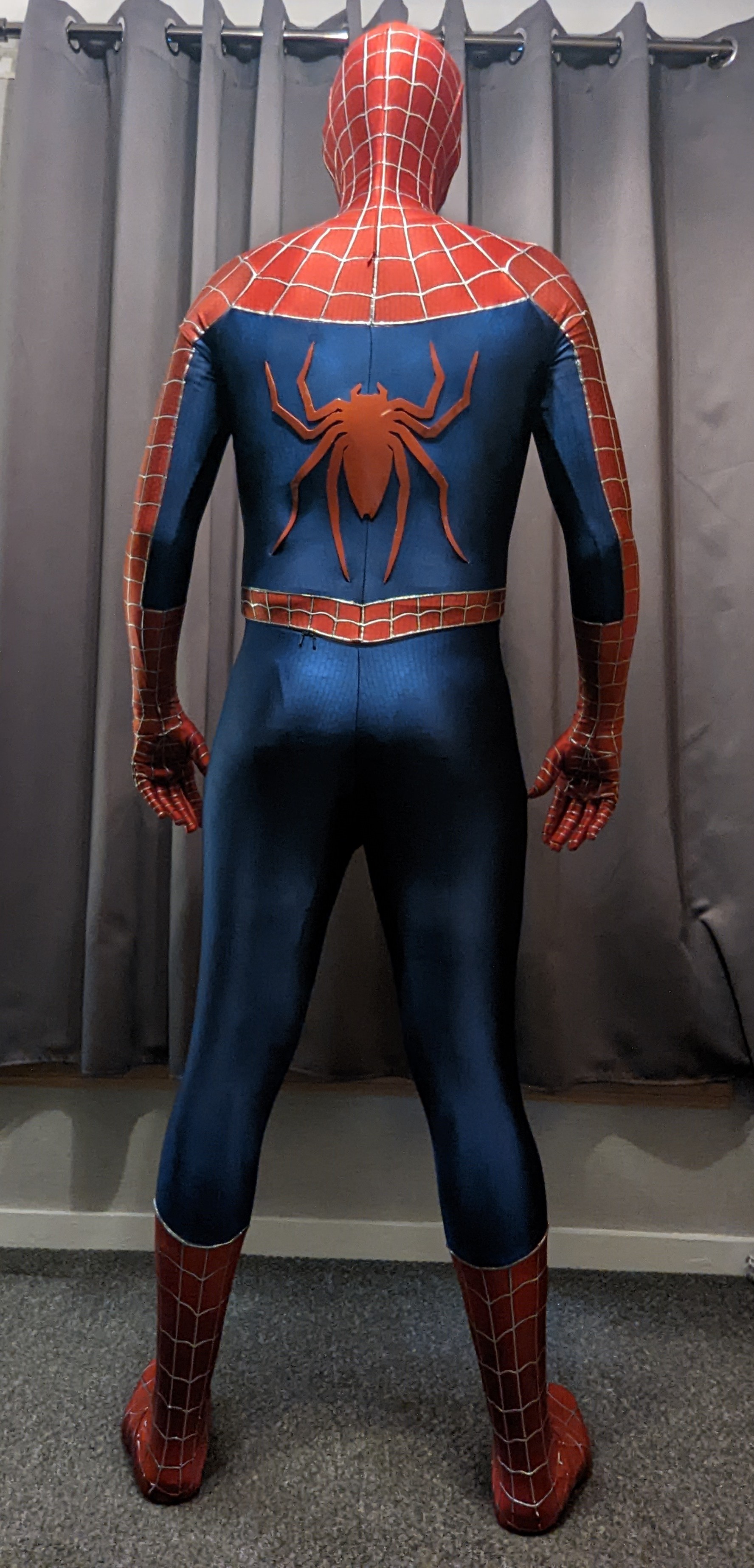

back spider glued great after 40+ hours of drying time and the suit pattern from kenlandrum is so accurate and made the whole process easy.

very happy with how it turned out.



[hdoxey]

Great work



[hdoxey]

Hello I was just wondering how would I go about making the webs for my suit and do you have any files on the black suit logos



[ancestralillus]

Hello, I would like to know if anyone knows how to do muscle shading for costumes, since I would like to make a Raimi costume that is the closest to the one in the movie, but my only impediment is that I still cannot do a good muscle shading. I would like to know if someone can help me



[RaxusPrime]

Quick update on how the suit is going now that most of the parts needed arrived.


View attachment 1625893View attachment 1625894View attachment 1625895View attachment 1625896View attachment 1625897View attachment 1625898View attachment 1625920
3d printed Frames and lenses with stainless steel 60 mesh and clear mylar sheets for the lens. Frames primed with white plastic primer and finished with gunmetal.


View attachment 1625900View attachment 1625901View attachment 1625902View attachment 1625906View attachment 1625909View attachment 1625910View attachment 1625912View attachment 1625911View attachment 1625913View attachment 1625914
Leather shoes with square tips cut and soles removed then flat rubber sole added to the base of the shoe and glued on. Then shoes put inside the suit and the sole of the suit cut and glued around the sole of the shoe. new rubber grip sole glued to the sole after being cut to shape. Similar to El Fett video on youtube.


View attachment 1625903View attachment 1625904View attachment 1625905
Edges of webbed sections puffy painted with silver (not done by print costume) to enclose the webs.



View attachment 1625907View attachment 1625908View attachment 1625918View attachment 1625922View attachment 1625921
Front spider cut to size as first attemt was too small then lined up and glued to suit using E6000.



View attachment 1625915View attachment 1625916View attachment 1625917View attachment 1625923
Back spider made with stencil and cut from rubber sheet then glued to back of suit using E6000.

Now just waiting on Faceshell 3d print to be delivered and more updates will follow.
Thanks.

Amazing job on this! Really well done! I’m actually in the process of designing my own pattern and wondered if you minded sharing where you got the shoes and the rubber soles from? I’m UK based.



[scottanderson94]

Amazing job on this! Really well done! I’m actually in the process of designing my own pattern and wondered if you minded sharing where you got the shoes and the rubber soles from? I’m UK based.

thank you, links are below for rubber soles.

link for rubber sheet used to replace the actual shoe sole before going into suit:

https://www.amazon.co.uk/dp/B00MTW6WGI?psc=1&ref=ppx_pop_dt_b_product_details

link for soles to go on outside of suit fabric:

https://www.amazon.co.uk/dp/B0819YP5H5?psc=1&ref=ppx_pop_dt_b_product_details

not sure what the shoes are but look for a minimal detailed square toe loafer with no laces. Remove the sole and replace with the smooth rubber then put in the suit and position properly then follow El Fett tutorial video on youtube to cut and glue suit fabric to smooth sole. Glue on the grip sole after it is cut to size.



[ThatOneDude2994]

Web vector files are TASM2, not Raimi webs



[Jinette91]

Which ones ?



[Kaan Unal]

My pattern? My pattern is from Comic Chris from instagram, but it's far from perfect. As for the faceshell, its El Fett's Spider-Man 2 shell. I plan on revisiting this suit soon with an accurate pattern and an actual 2002 shell! I've posted screenshots of the new pattern

Your latest versions of the Raimi patterns are incredible.



[sampan]

...and we begin.


-------------------------------------------------------
Spider Files

View attachment 291435
http://www.kenlandrum.com/spider-man/frontSpider.ai


View attachment 291436
http://www.kenlandrum.com/spider-man/backSpider.ai

These are the 3D files extruded to 2mm and slightly beveled.
View attachment 291944

3mm thick versions
http://www.kenlandrum.com/spider-man/spiders-3mm.obj

http://www.kenlandrum.com/spider-man/spiders-3mm.STL

2mm thick versions
http://www.kenlandrum.com/spider-man/spiders.obj

http://www.kenlandrum.com/spider-man/spiders.STL

-----------------------------------------------------------------
Webbing Files

Zipped file for all of the web vectors.

FINAL WEB VECTORS.zip

drive.google.com

View attachment 293983View attachment 293984View attachment 293987View attachment 294009View attachment 294029

------------------------------------
Extruded/beveled 3D web files:
View attachment 296733View attachment 296944View attachment 296959

STL
Meet Google Drive – One place for all your files
----
OBJ
Meet Google Drive – One place for all your files
------------------------------------------------------------------

Pattern Files (Raimi Version)

View attachment 295913

https://drive.google.com/file/d/0B_sNvgA37t6qQktUN3N4MTZfTjA/edit?usp=sharing
Layered .psd (colors, muscle shading, bricks, webbing all separated)


drive.google.com

Bricks only, non-distorted version.

-----

spider-man-raimi-w-webs101414-PRINT_FILE.zip

drive.google.com

Flattened (with webs) .jpg

-----
View attachment 381490

spider-man_NO-WEBS-031914_v2.jpg.zip

drive.google.com

NEWEST colors (web guides only, no spiders) "Ready-to-Upload" CMYK jpg

-------------------------------------------------------------------


3D Print Ready Face Shell
Sized to 23cm in height - 3mm thickness
View attachment 298944

3D_FaceShell.zip

drive.google.com

3D Face Shell - print ready .obj & .stl formats

-----

3D Print Ready Lens Files

3D Lens Frames - print ready .obj & .stl formats
Sized to 85mm - Snap distance 3.2mm to accommodate 3mm thick face shell above + fabric

View attachment 300603View attachment 300604

STL:
Meet Google Drive – One place for all your files
----
OBJ:
Meet Google Drive – One place for all your files

If you are attempting to download the ai files for the webbing the link will not download the correct files. That link only has Tasm2 webbing. I made my own raimi webbing that matches perfectly. Here is that link. All Webbing Files - Google Drive



[nivektunk]

Hello Sampan,
Thanks for offering the files. Last piece of the costume I needed. Much appreciated.
Cheers,
Kevin



[sampan]

Hello Sampan,
Thanks for offering the files. Last piece of the costume I needed. Much appreciated.
Cheers,
Kevin

No problem. I also just got all the files cnc routed onto molds just like they did in film production. I will be offering urethane casts soon to anybody that needs some for a reasonable price.
