TheAntReplicas
Active Member

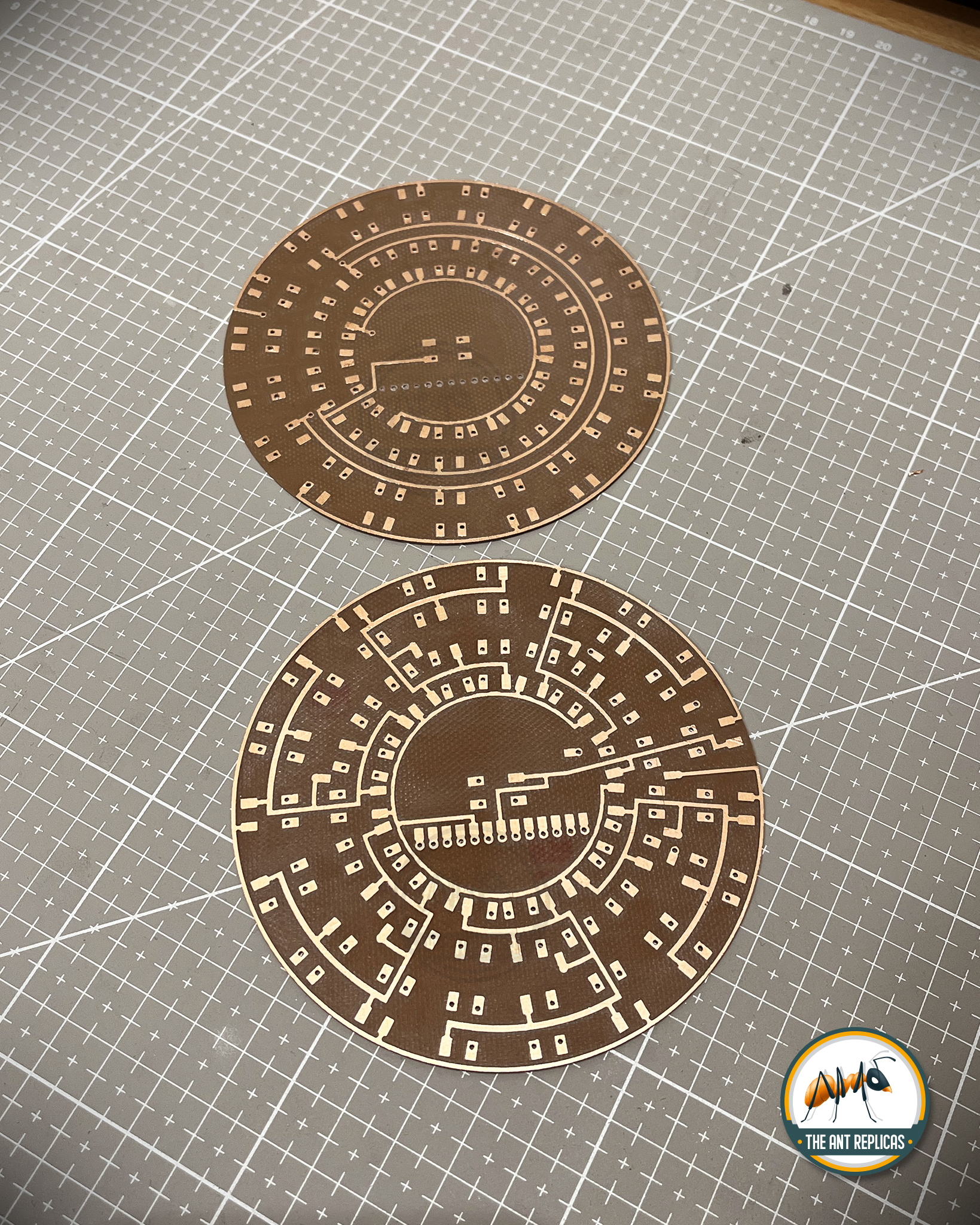

Preparing the second circuit for the DHD. This time, it will be double-sided and will house the buttons for each dial key.
Project Stargate SG1:10
TheAntReplicas
Active Member
Installing the LEDs on the DHD's first PCB. The LEDs are addressable, allowing them to be switched on and animated individually.
TheAntReplicas
Active Member

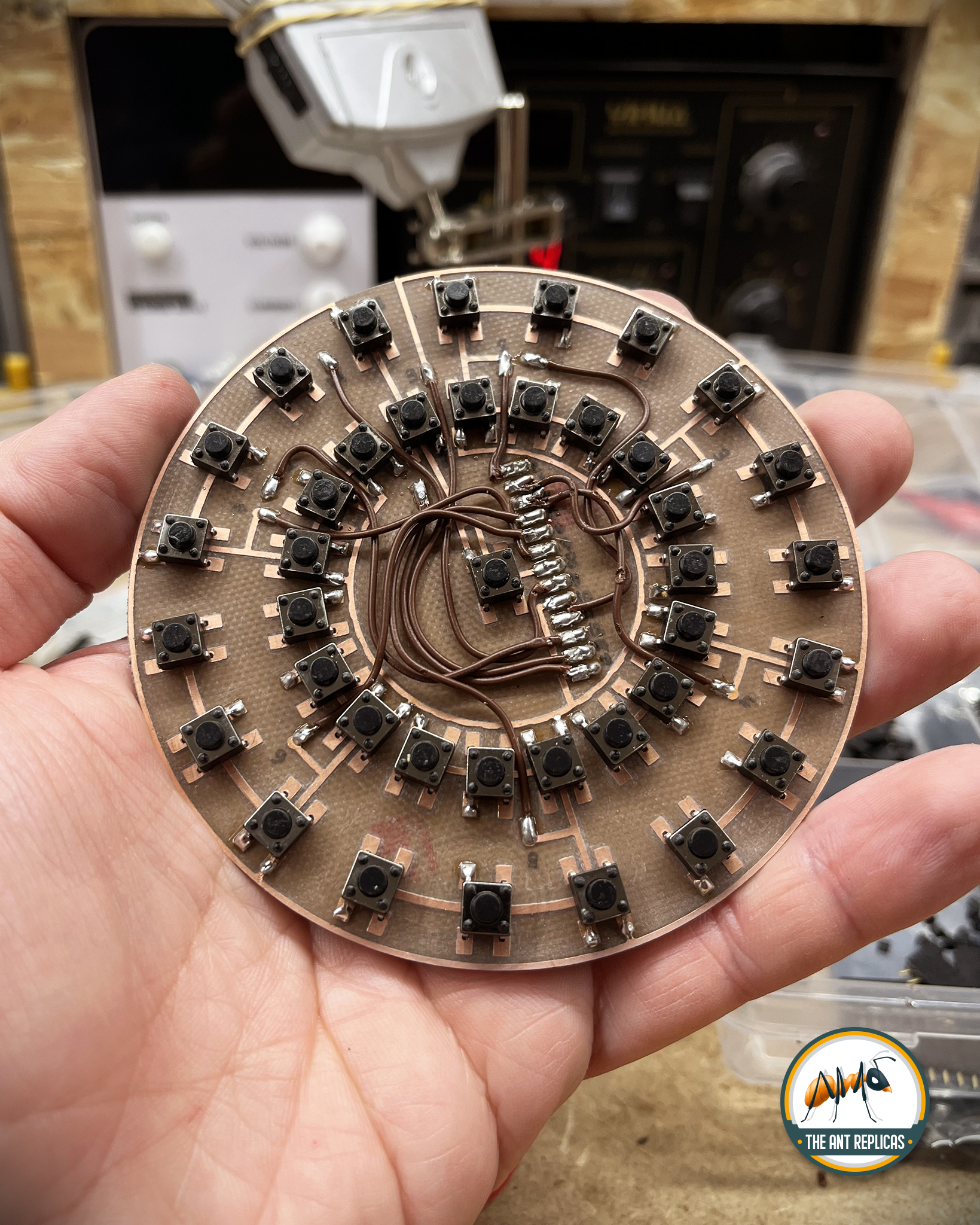

Installation of the switches on the DHD's second PCB. A few design errors have been corrected.
TheAntReplicas
Active Member
Practical update: I've integrated a position sensor to automatically zero the glyphtrack. No need to move it manually.
modelerdave
Sr Member
Just take all of the awards now...
jkno
Legendary Member
You have a functional stargate, I'm ready to go through. Awesome work!
TheAntReplicas
Active Member
Thanks
drusselmeyer
Master Member
How do you intend to solve the event horizon problem?
TheAntReplicas
Active Member
problem ? There's no real problem. I'll just integrate an animated bluish light into the inner edge of the gate.
drusselmeyer
Master Member
Okay, I was thinking circular display in the center.
2nd best maybe. As Yoda said, "there is another"...This is the best Stargate model ever!
TheAntReplicas
Active Member
Really? That is awesome!I worked on this project too!
Maybe the best at 1:10 scale
Definitely!
TheAntReplicas
Active Member

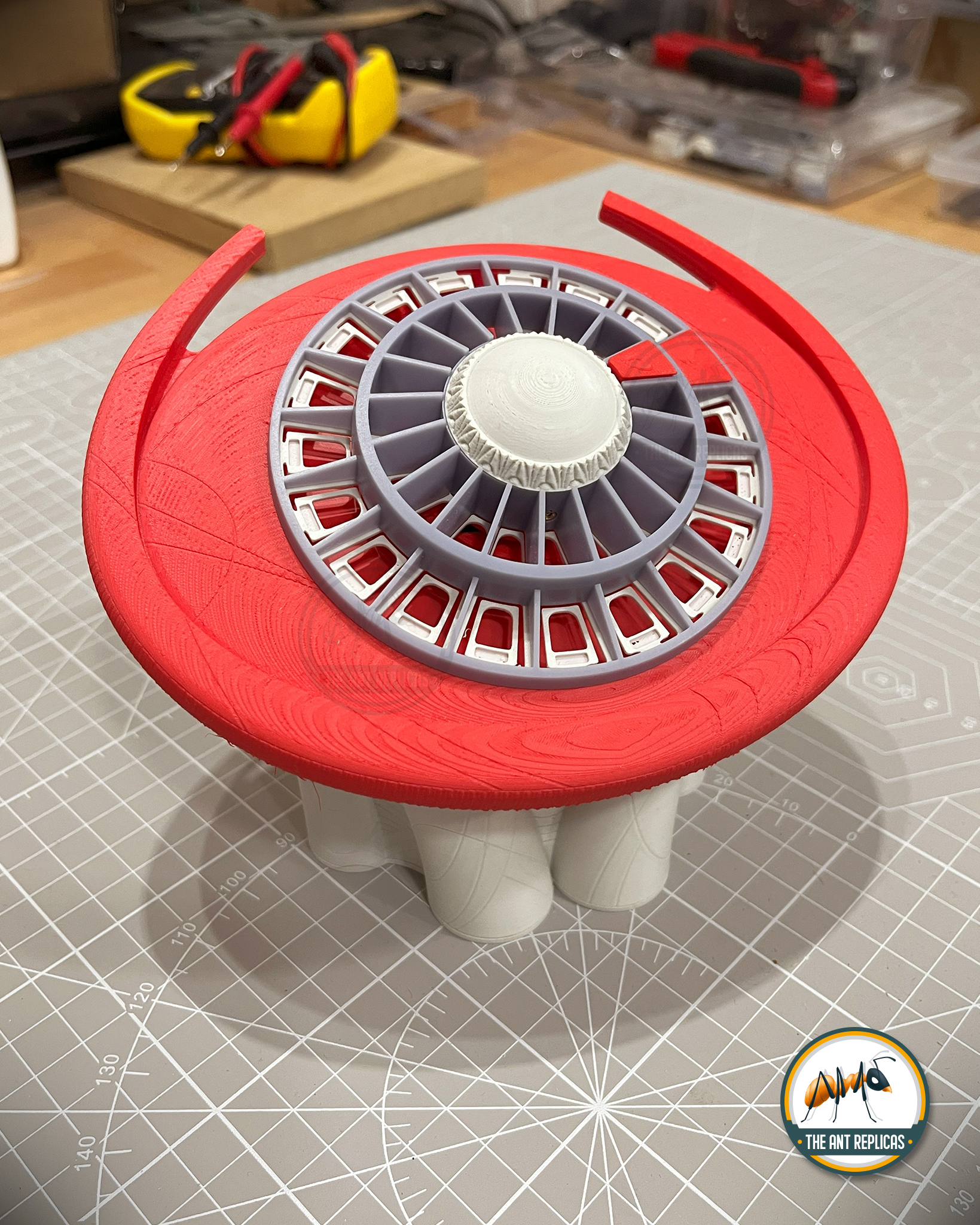

3D FDM printing of the first DHD prototype. The appearance is rather crude, but it gives us a first idea of the overall volume and enables us to check the assembly.
TheAntReplicas
Active Member

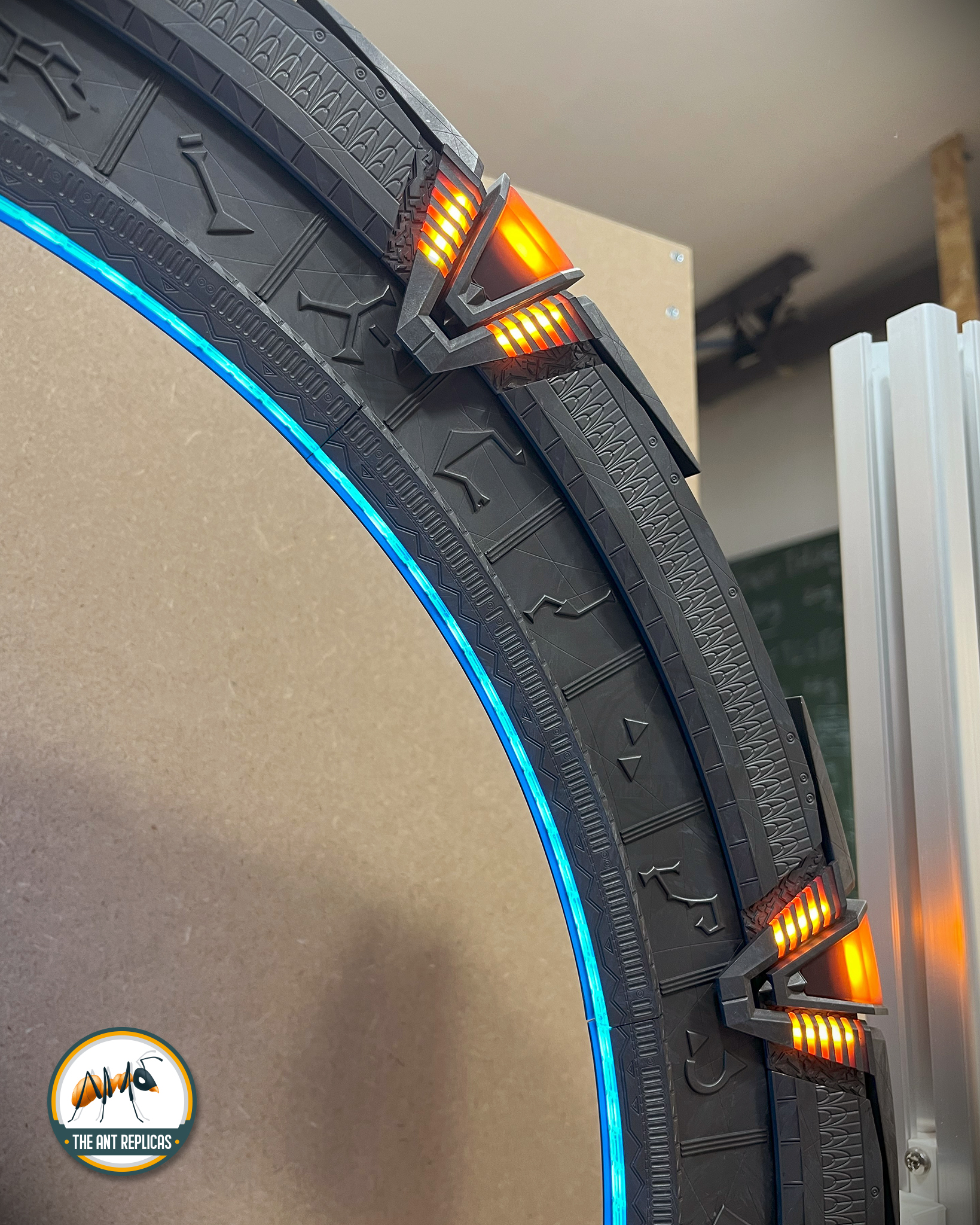

For the event horizon and kawoosh, I didn't want to use an screen or infinite mirror. I simply opted for an animatable LED strip, placed along the inner edge.
drusselmeyer
Master Member
You could have a green screen disc in the center.
joberg
