P1 Complete Gauntlet
- Thread starter cyberpred
- Start date
shadow hunter
New Member
Please let me know who is willing to get the stuff to do this.
Cary
im interested im probably going to order it this weekend, but what to you suggest for making a custom gauntlet like with six timers instead of the P1 with 4 timers( i think, cant remember off the top of my head)
but i am also going to be keeping an eye on this thread great stuff
cyberpred
Sr Member
I just got a thing to hook to my old camcorder so I can record vids to my computer. I have a bunch of 4011s and 4017s on the way. I am not sure about the values of the capacitors and resistors. I will experiment so i can tell you guys what to get.

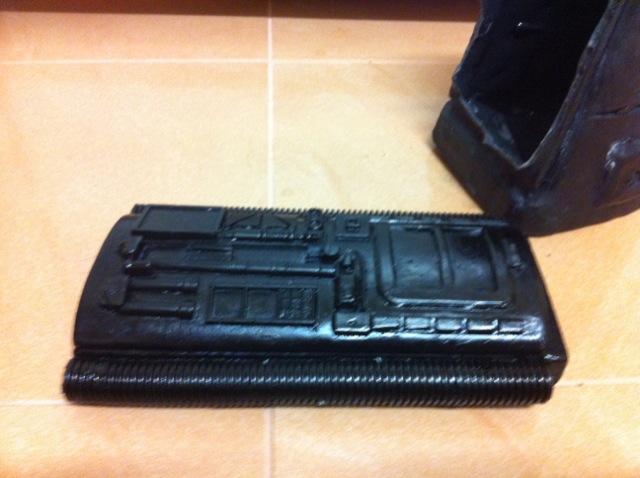

The windows that sequence and go off in succession are a bit more complicated. So we will start with the top cover first.
This is going to take a while because I want you to understand what you are doing.
Cary
The windows that sequence and go off in succession are a bit more complicated. So we will start with the top cover first.
This is going to take a while because I want you to understand what you are doing.
Cary
cyberpred
Sr Member
I would also suggest buying a spool of solid wire. Your breadboard will come with some but you will be able to make jumpers from the solid wire. Also a pair of small needle nose pliers would be a good idea.
Just bought the same breadboard etc.
Another thing. The breadboard is so you can understand what you are doing. After the circuit is working to our satisfaction then we will build it using a perfboard and kaynar wiring along with silicone. That comes later.
Found this. http://cowlacious.mybigcommerce.com/produc...yes-Deluxe.html
We can purchase this circuit already done for the breathing yellow light. Also use the output for the breathing part of the X. Runs on 9 volts which is perfect. Looks like the output is in series. That means that the circuit will not work unless both LEDs are hooked up at the same time.
Cary
Just bought the same breadboard etc.
Another thing. The breadboard is so you can understand what you are doing. After the circuit is working to our satisfaction then we will build it using a perfboard and kaynar wiring along with silicone. That comes later.
Found this. http://cowlacious.mybigcommerce.com/produc...yes-Deluxe.html
We can purchase this circuit already done for the breathing yellow light. Also use the output for the breathing part of the X. Runs on 9 volts which is perfect. Looks like the output is in series. That means that the circuit will not work unless both LEDs are hooked up at the same time.
Cary
MEANGENE83
Sr Member
I am not ready to do this yet. BUT I am watching and going to use this as a step by step later on.
cyberpred
Sr Member
cyberpred
Sr Member
Here is the type of wire we will be using once the design of the entire circuit is done.
Cary
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewI...em=250502555578
Cary
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewI...em=250502555578
cyberpred
Sr Member
The size of the ones I posted are the ones that will work the best. Guys these are your design. I am just helping you with what to use and build. Up to you how you use it.
AS for the fading circuit we will use it but do not have to get that right now. I will not have my breadboard for a week shipping.
Cary
AS for the fading circuit we will use it but do not have to get that right now. I will not have my breadboard for a week shipping.
Cary
troggs
New Member
Things have been quiet in my job this week, so I've had time to order the bits in between applying layers of latex to my first pred skin. Hopefully I'll enjoy messing with the electronics, not like the last time many years ago when I had to learn the basics in the air force - I really couldn't get my head round it.
