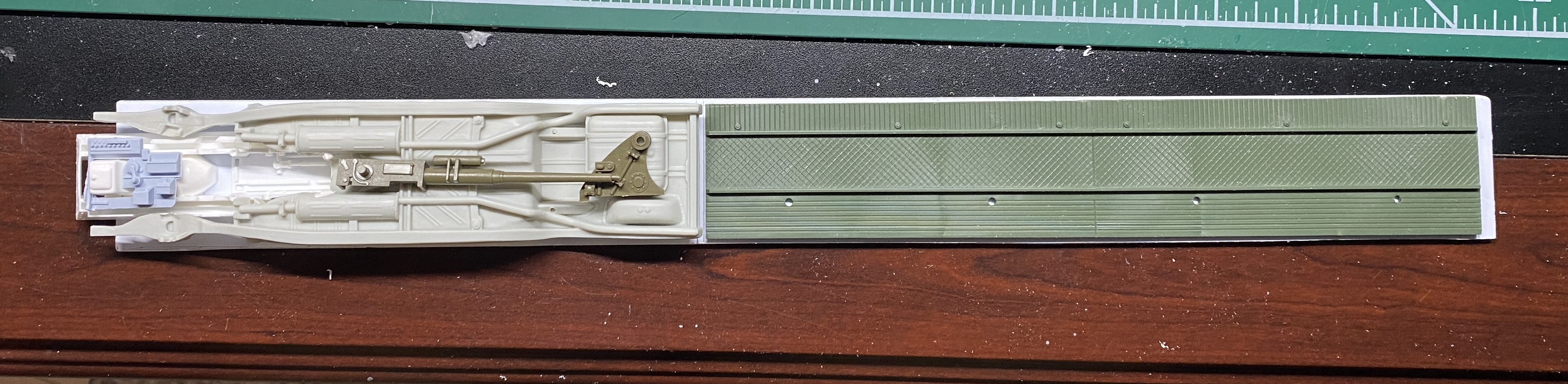

Okay. 1.75 inches wide. I’m using .125 so when I add the top and bottom, it will be 2”. 16 7/8 long. 6mm at the back and 2mm between the Chevy and Pontoon. Thoughts?
An RPF Open Source 5 ft Millennium Falcon Build/Reference Thread. All Are Welcome
- Thread starter jcoffman99
- Start date
Rick Deckard
Sr Member
Looks good to me...
Like it. Looks good. Hips and greeblies don't lie.
When I made my "mock-up" version, I was only thinking about the one key surface area, the sidewall itself. When you actually build it, you have to think about the full "wrap-around" effect of the various chassis rails that go above and below, and how they sit on the upper and lower edge "lip" of this structure. All that is to say is that you shouldn't glue anything down yet until you have these chassis rails affixed, and from that point, sequentially, you'll be able to more perfectly "center" the 57 Chevy and Pontoon Bridge pieces without having them sitting "too high" or "too low" in the overall siderail. My first one was sitting noticeably low and looked wrong even though it had the right parts.
Junk Pilot
Sr Member

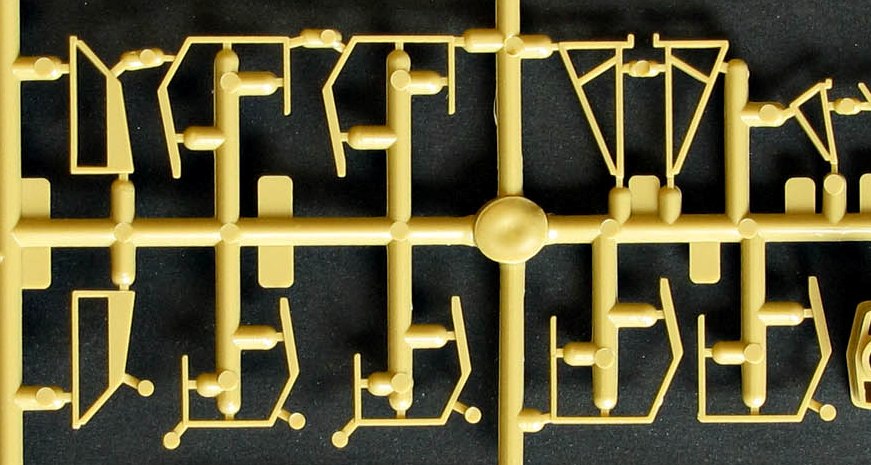

Could one of these be the part in question? This is from the Tamiya 1/35 Panzer Kampfwagen III Ausf M
Bjorn
Sr Member
Looks great from here also John.
The numbers are not too different from what I am seeing with my workings. I like it!
I looked at those but they don’t seem raised enough. I’ll do a comparison shot later.
Thanks everyone for the reassurance. Time to make the other one now.
I stand corrected. Looks good.

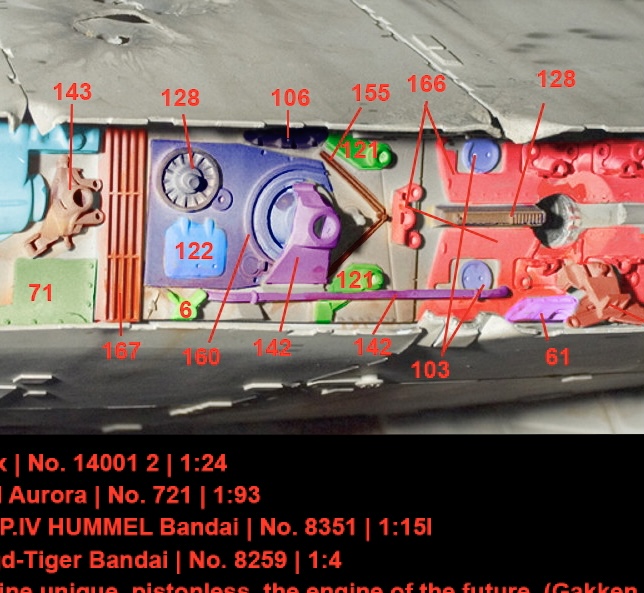

Just need this little grey guy and this map is finished. Anyone have a guess?
Rick Deckard
Sr Member
Looks like that the grey piece make part of the red part...
I thought so at first too, but there's nothing on the Hurricane bottom that matches.

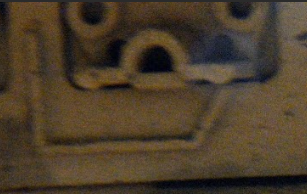

Another view. Obviously cut down but from what, I have no idea.

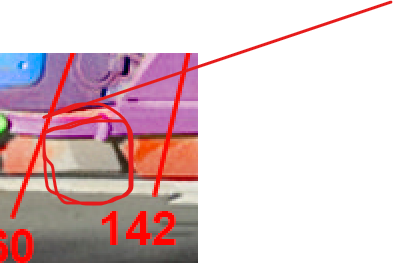

WHICH piece are you asking about? Please circle it.
Isn't that just the cut-off leftover of the Stug piece?
Yes, that's what I'm talking about.

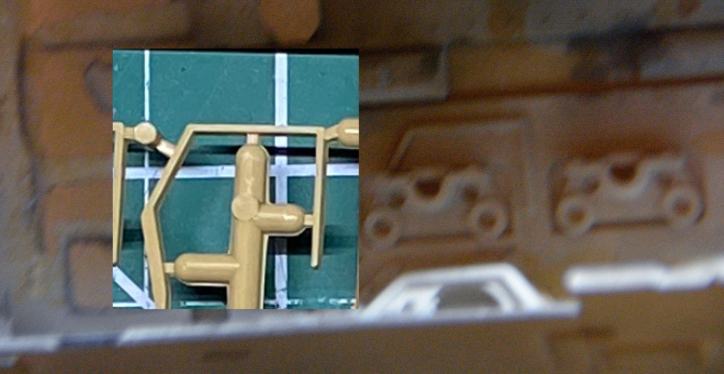

I dunno. The piece looks smooth to me and too small to be the Stug. I'm seeing this shape.

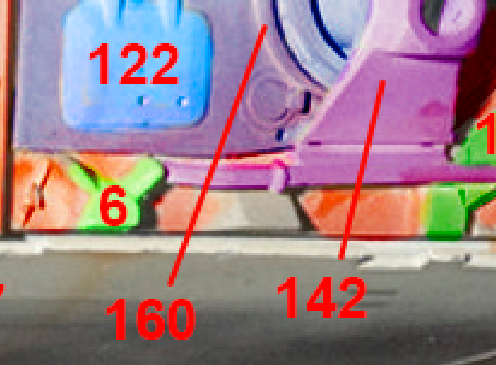

Maybe you're right -- can you "zoom out" and show the surrounding area better?
